11
Assembling
Technical informations

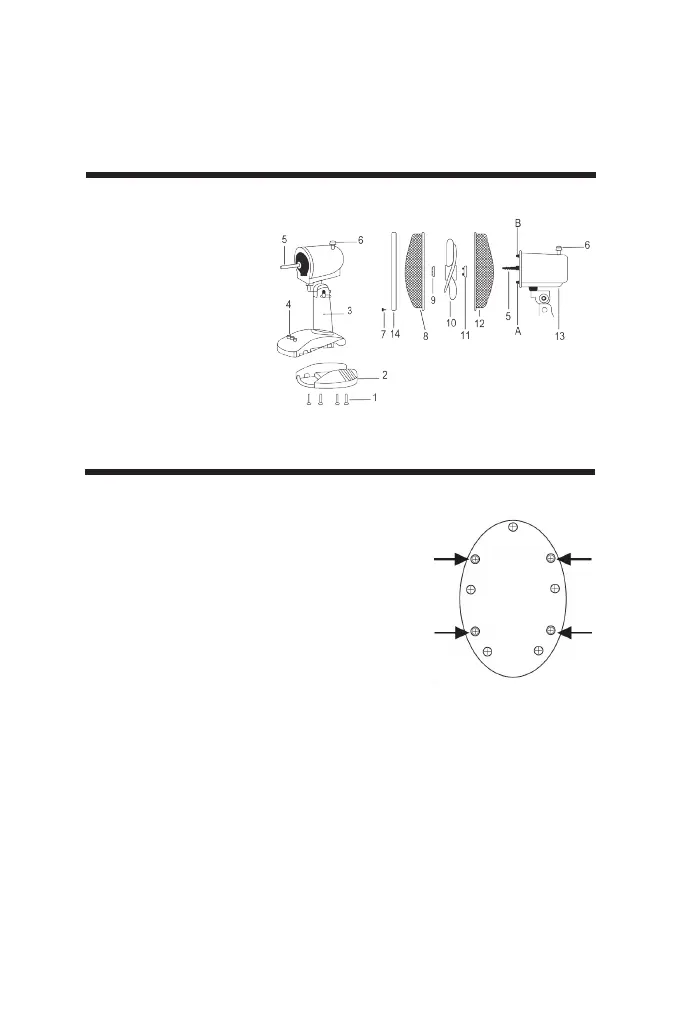

1. Screws (4 pieces)
2. Base
3. Main body
4. Control panel
5. Motor shaft
6. Oscillation knob
7. Safety screw
8. Front grille
9. Lock ring of the fan
10. Fan
11. Lock ring of the back
grille
12. Back grille
13. Motor
14. Lock ring
1. Mount the base on the main body xing it with the 4 screws provided
as shown in gure.
2. Unscrew the nut of the grid xing rear (11) from
the drive shaft (5) by turning counterclockwise.
3. Insert the rear grille (12) on the motor shaft
(5) making sure that the handle on the back is
facing upwards and the locking pins (A-B) are
in the vertical holes of the rear grille. Screw the
locking ring (11) by turning it clockwise.
5. Insert the fan (10) on the motor shaft (5)
and fasten the proper lock ring (9) by rotating
counterclockwise.
6. Open the clips of the front grille (8) and place
it on the back grille (12) making sure that the
logo on the central stud is placed horizontally, parallel with the oor.
7. Find the proper position to lock the clips and insert the safety screw
of the grille (7).
