©16March2017CO2Meter,Inc.AllRightsReserved 2
ConnectingtheT6613Sensor

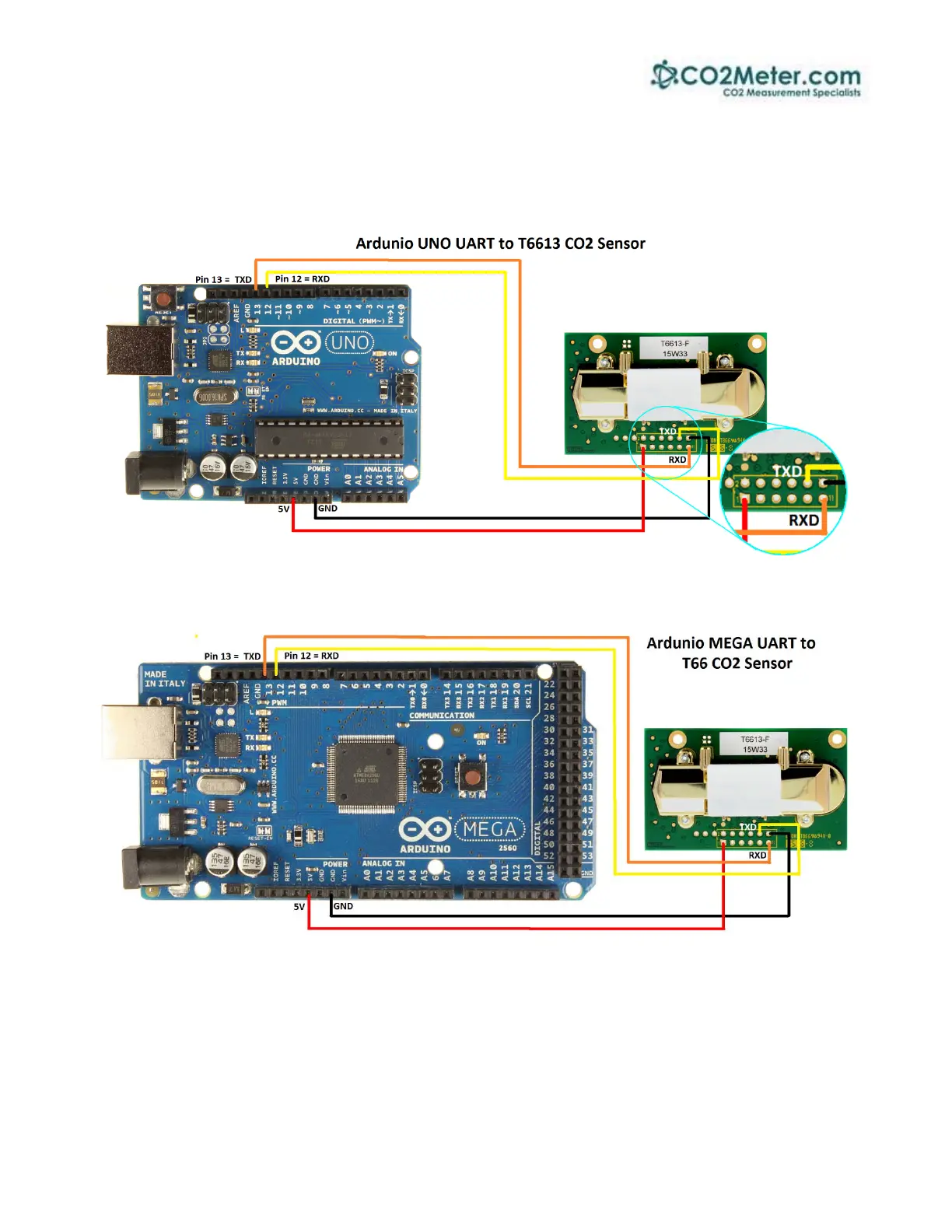

RefertothewiringdiagrambelowfortheArduinoUnoorArduinoMega.
TheconnectionsfortheArduinoMEGAareidenticaltotheMega2560.

