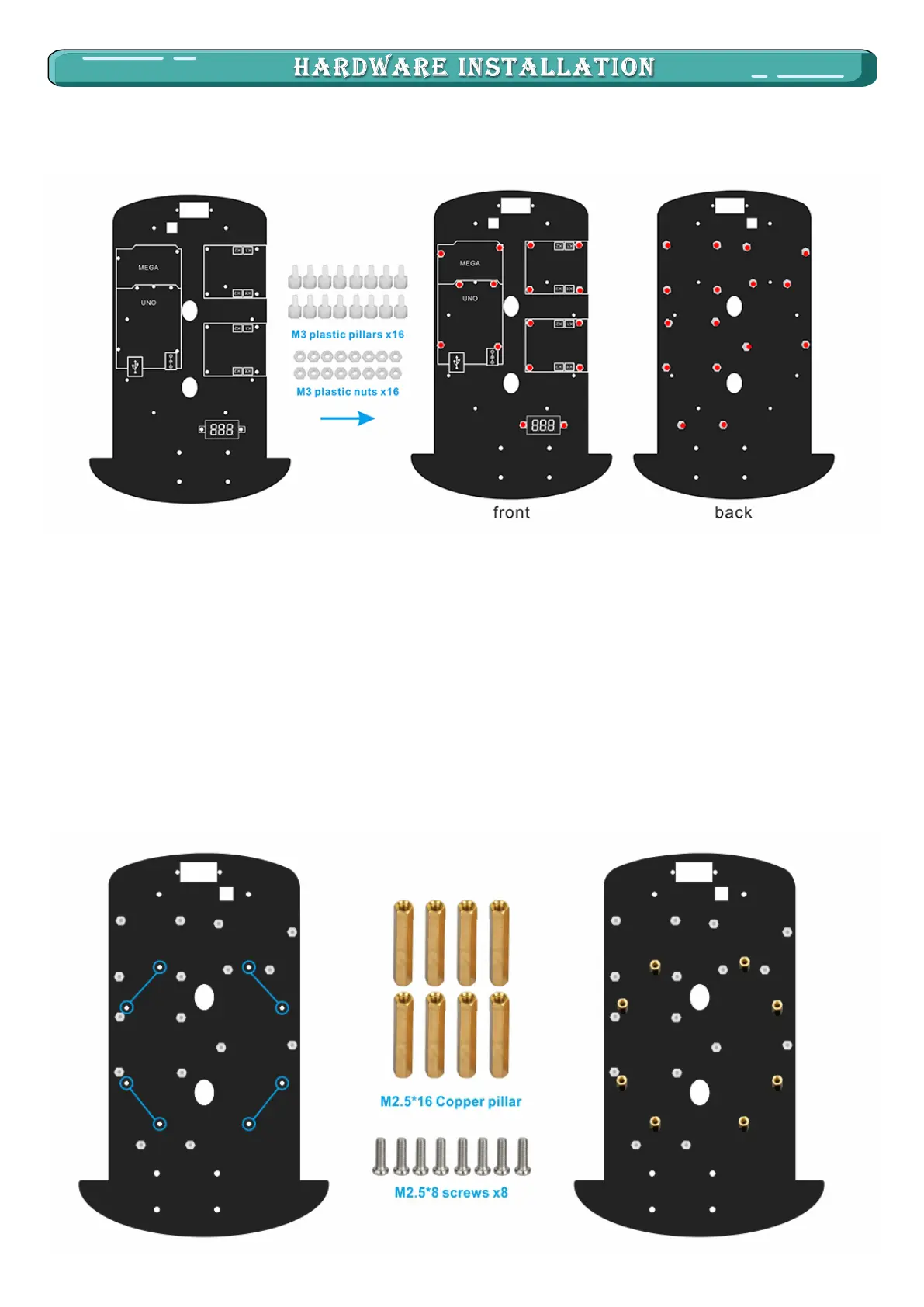

Picture 2: Chassis screw location map (view from top)
Step 1) Install Cooper standoff on the chassis
If your motors have already connected with a copper standoff, please skip this step and
directly go to Step 2
Follow the picture below to install 4 copper standoff on the positions of the blue lines
first, then fasten the 4 motors onto the 4 standoffs. Make sure the motor directions must
be correct(exactly same as picture)!
Picture 3: Motor fasten screws location map (view from bottom of the chassis)
