Arduino® UNO R4 WiFi
13 / 23 Arduino® UNO R4 WiFi Modified: 26/06/2023
These LEDs can be accessed as an array, using a specific library. See the mapping below:

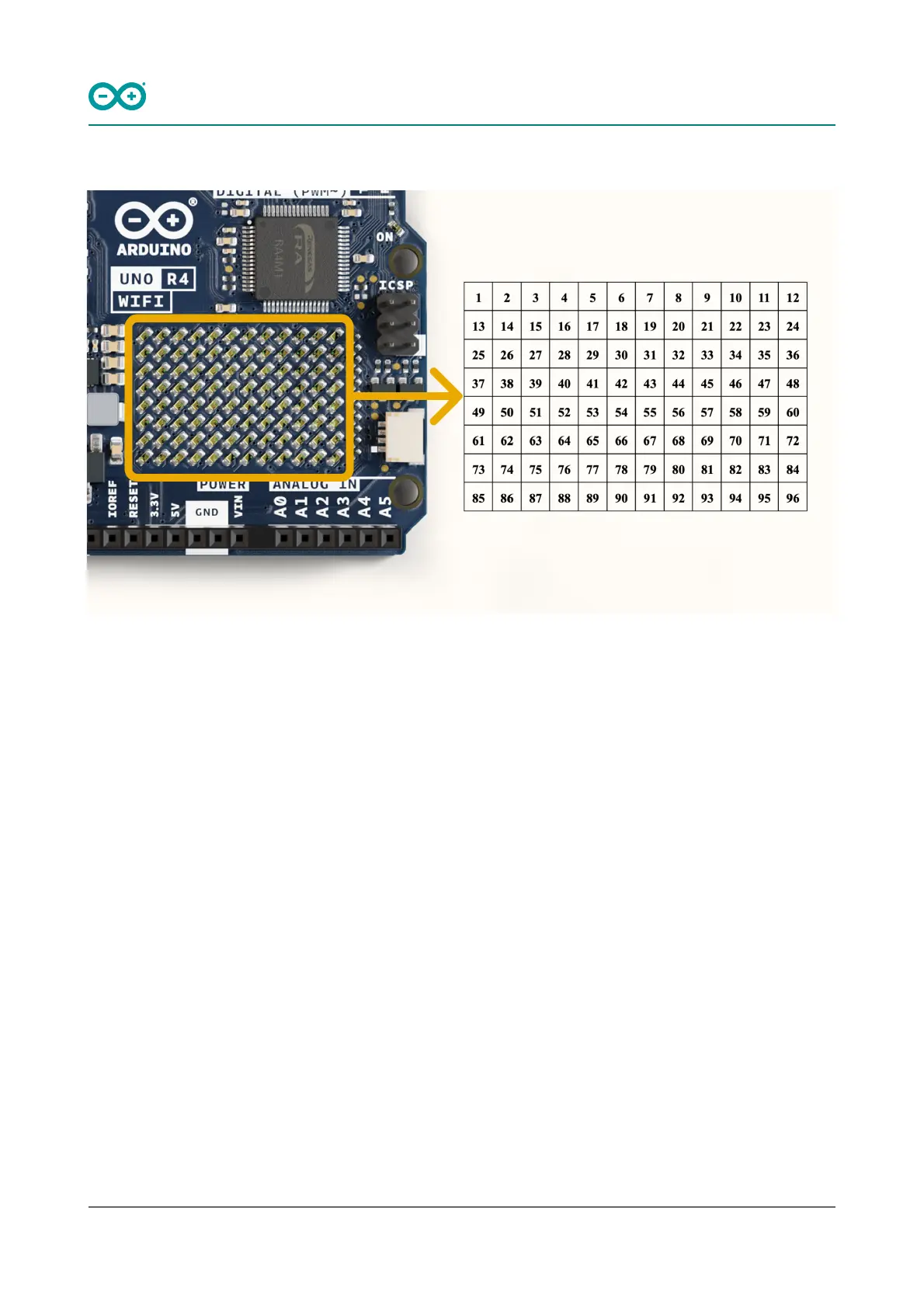

LED matrix number mapping.
This matrix can be used for a number of projects and prototyping purposes, and supports animation, simple game
designs and scrolling text among other things.
9 Digital Analog Converter (DAC)
The UNO R4 WiFi has a DAC with up to 12-bit resolution attached to the A0 analog pin. A DAC is used to convert a
digital signal to an analog signal.
The DAC can be used for signal generation for e.g. audio applications, like generating and altering sawtooth wave.
