ARE LSX - Step 3: Finishing Work and Securing; Cover Alignment and Clamp Body Installation; Applying Pressure and Securing Clamps; Cover Plate Installation and Fit Check

TailgateTonneau Cover

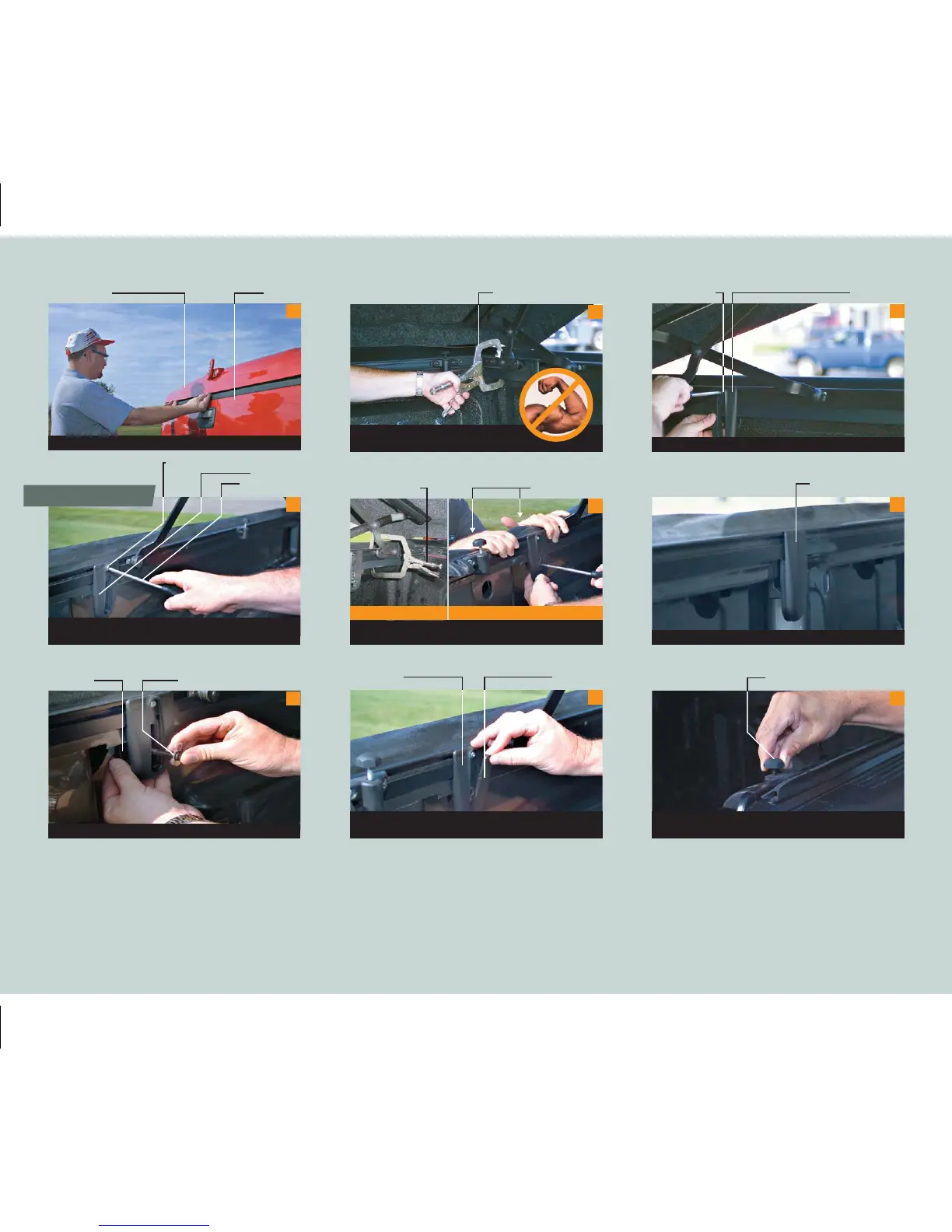

Visually align tonneau cover to tailgate profile.
19
Secure the clamp bodies to the “T” nuts, in the aluminum rail,
at each clamp location.
M6x1x14mm Bolt and Lock Washer
Clamp Body
4mm Hex Tool
20
Step 3: Finish Work
Loosely assemble clamp jaw system.
M8 bolt and Stainless WasherClamp Jaw
21
Cover Plate
Clamp Body
After all installation adjustments are made, snap cover
plates in place.
24
Vice Grip
®
“C” Clamp Style
Apply downward pressure on the rail.
Do not use excessive force.
22
Clamp Body4mm Hex Tool
Secure clamps at front scissor hinge locations.
25
Mount Clamp Mid-Bed
26
Rear Rubber-Headed Bumper Bolt
Raise and jower the tonneau cover to verify fit. Adjust
rubber-headed bumper bolts as required in rear locations.
27
Mount clamp at mid-bed on long bed applications.
Downward ForceVise Grip
®
Clamp
Apply downward pressure on the rail. Then secure aluminum
rail to truck by tightening M8 bolt.
23
Recommended Optional (Hand Force)
