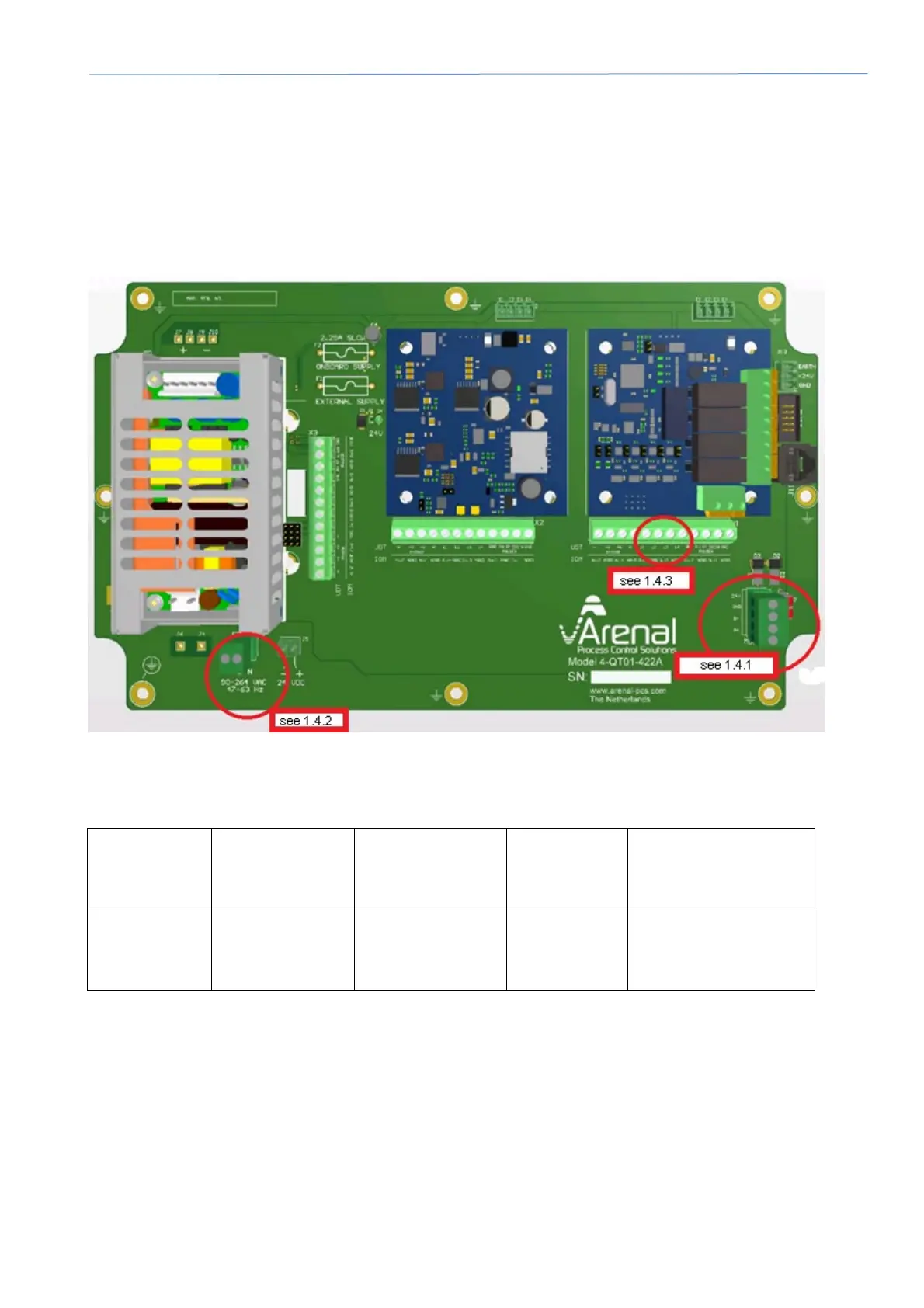

QA03-SDA Installation Manual KWR-7QA03-20190503-EN-RU Page 5/16
Снимите алюминиевые пластины, чтобы установить анализатор на стену
Используйте винты и болты «4-монтажного комплекта» для установки анализатора
на стену
1.4 Electrical cables installation / Установка электрических кабелей
1.4.1 To connect the UDT to the analyser / Подключение UDT к
анализатору
Name in Analyser
Имя в
Analyzer
Name in UDT
Имя в
UDT
Explanation
объяснение
Wire numbers
номера
проводов
цвет провода
24VDC
GND
B
-
A+
24VDC
0VDC
B
-
A+
24Vdc +
0 Vdc
Modbus RTU
Modbus RTU
1
2
3
4
White / белый
Green / зеленый
