Preparing for Flight
1. Charging the ight battery. You must charge the included 70mAh
1-cell/1S 3.7V 15C LiPo battery (AZSB????) using the USB battery
charger (AZS????) supplied, or by using a suitably compatible LiPo
battery charger. Charging the LiPo battery using an incompatible LiPo
battery charger (such as a NiCd or NiMH battery charger), or even a
different LiPo battery charger with the incorrect settings, may result in
damage to the battery or even re, resulting in property damage and/or
personal injury.
Please follow these steps to charge the LiPo ight battery with the
supplied 104C USB charger:

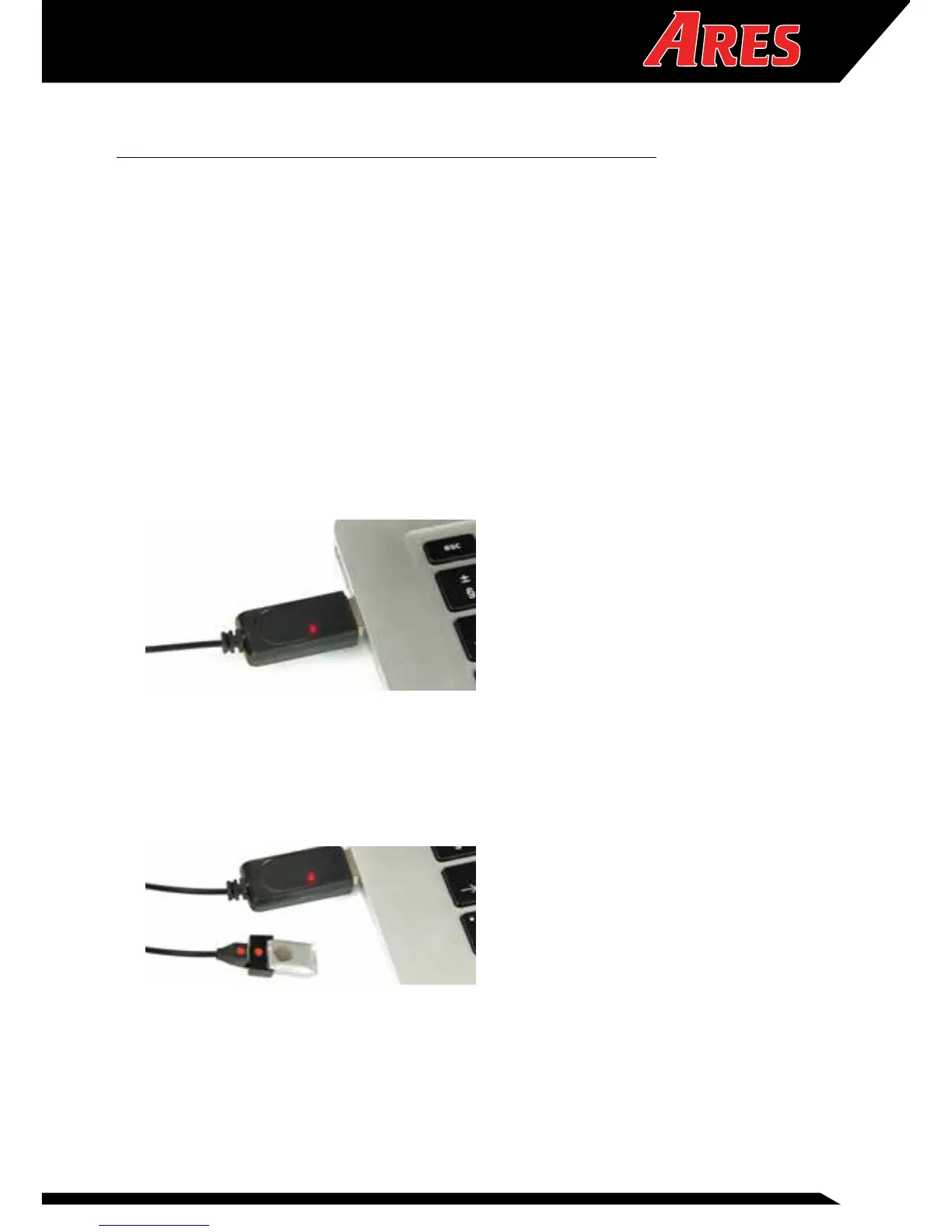

• Connect the 104C charger to a suitable 5V USB connection/port
on a computer or other device. An alternative is to plug the optional
100 – 240V AC to 5V DC USB, 0.5-amp Power Supply/AC adapter
(AZSC5005PS) into a compatible 100 – 240V AC outlet, then connect
the 104C charger to the power supply/AC adapter. The power supply/AC
adapter is powered ON when the LED indicator glows solid green.
• When the 104C charger is connected to a power source the LED indicator
will blink/ash red. Attach the battery to the connector at the end of
the charge lead extending from the transmitter. YOU MUST BE CAREFUL
TO ENSURE PROPER POLARITY BEFORE MAKING THE CONNECTION by
aligning the small red circle marking on the housing of the battery with
the small red circle marking on the charge lead connector.
• While these ultra-micro connectors are keyed to minimize the risk of
a reverse polarity connection, if you force them it is possible to make
connection with the incorrect polarity, potentially causing damage to
the battery and / or charger (transmitter). When the red circle markings
are properly aligned for correct polarity joining the connectors should
require only a minimal amount of pressure to achieve the light ‘click’ that
