Arestech MERA-2000 Series User Manual

28
User Manual
WARNING:
SOME OFF-THE-SHELF MINI-PCIE MODULES ARE NOT COMPATIBLE WITH THE +3.3VAUX POWER AND
ARE ONLY COMPATIBLE WITH THE +3.3V POWER DESIGN. IF ANY SIMILAR SITUATION ARISES, PLEASE
CONTACT ARESTECH FOR SOLUTIONS.

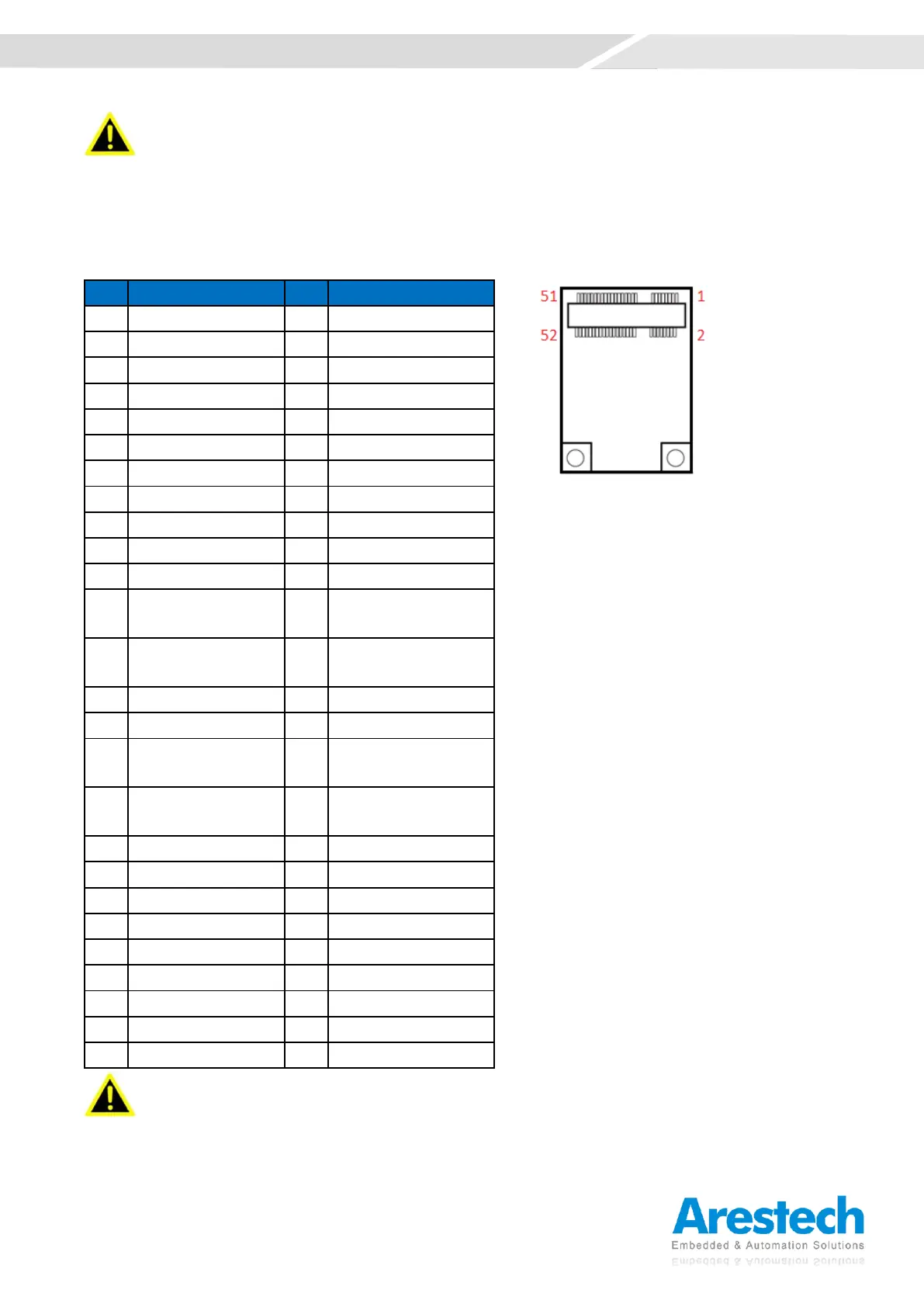

◼ CN1：Dual Mode Mini PCI-Express (Support mSATA and SIM Card to Link feature)
Pin
Definition
Pin
Definition
1
WAKE#
2
+3.3Vaux
3
NA
4
GND
5
NA
6
+1.5V
7
CLKREQ3#
8
UIM2_PWR
9
GND
10
USIM2_DATA
11
PCIE_CLK-
12
USIM2_CLK
13
PCIE_CLK+
14
USIM2_RST
15
GND
16
USIM2_VPP
17
RESERVED
18
GND
19
RESERVED
20
W_DISABLE#
21
GND
22
RESET#
23
PCIE_RXN3
(SATA_RXP1)
24
+3.3Vaux
25
PCIE_RXP3
(SATA_RXN1)
26
GND
27
GND
28
+1.5V
29
GND
30
SMB_CLK
31
PCIE_TXN3
(SATA_TXN1)
32
SMB_DATA
33
PCIE_TXP3
(SATA_TXP1)
34
GND
35
GND
36
USB_D-
37
GND
38
USB_D+
39
+3.3Vaux
40
GND
41
+3.3Vaux
42
NA
43
GND
44
NA
45
NA
46
NA
47
NA
48
+1.5V
49
NA
50
GND
51
NA
52
+3.3Vaux
WARNING:
SOME OFF-THE-SHELF MINI-PCIE MODULES ARE NOT COMPATIBLE WITH THE +3.3VAUX POWER AND
ARE ONLY COMPATIBLE WITH THE +3.3V POWER DESIGN. IF ANY SIMILAR SITUATION ARISES, PLEASE
CONTACT ARESTECH FOR SOLUTIONS.
