3.7 Installing The Right Removable SATA HDD Bay (MERA-
2001(S)-2L Only)

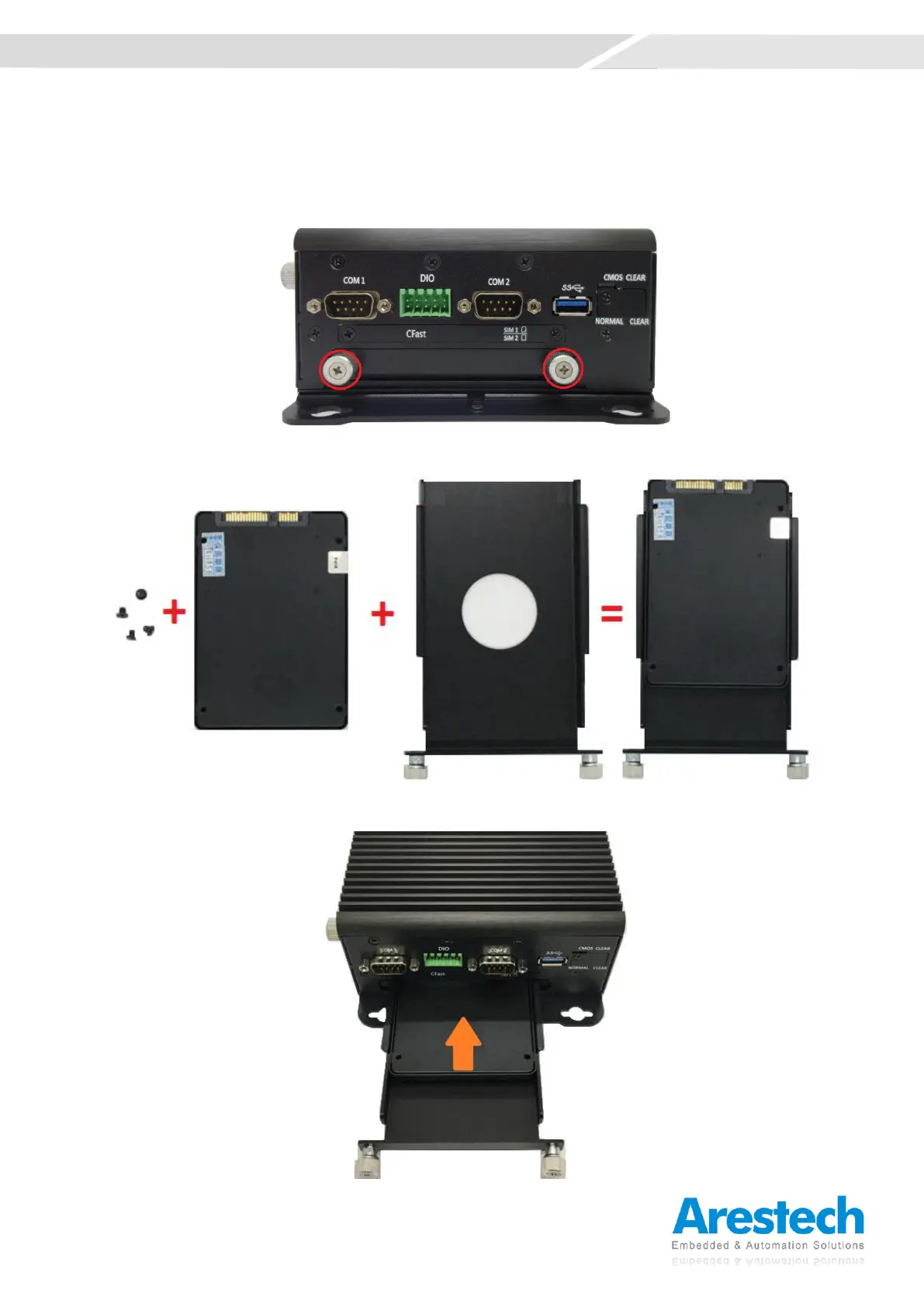

1. Unscrew the two thumb screws circled below to take out the removable 2.5” SATA HDD bay.
2. Lock the 2.5” SATA HDD with HDD bracket using four screws.
3. Slide the HDD bracket back and then fasten the thumb screws.
