Present the new pole on to the
frame whilst taking care not to
displace the shimming washers.
Under the frame, fit in place 4
new Nylstop nuts.
Proceed with a pre-tightening of
the 4 nuts.
Mount the connector into the
power supply terminal.
Check that the dimensions
between phases and between
layers are identical to those
noted during dismantling (See §
10.4). If this is not the case,
please contact our After-Sales
Department (§ 1.1).

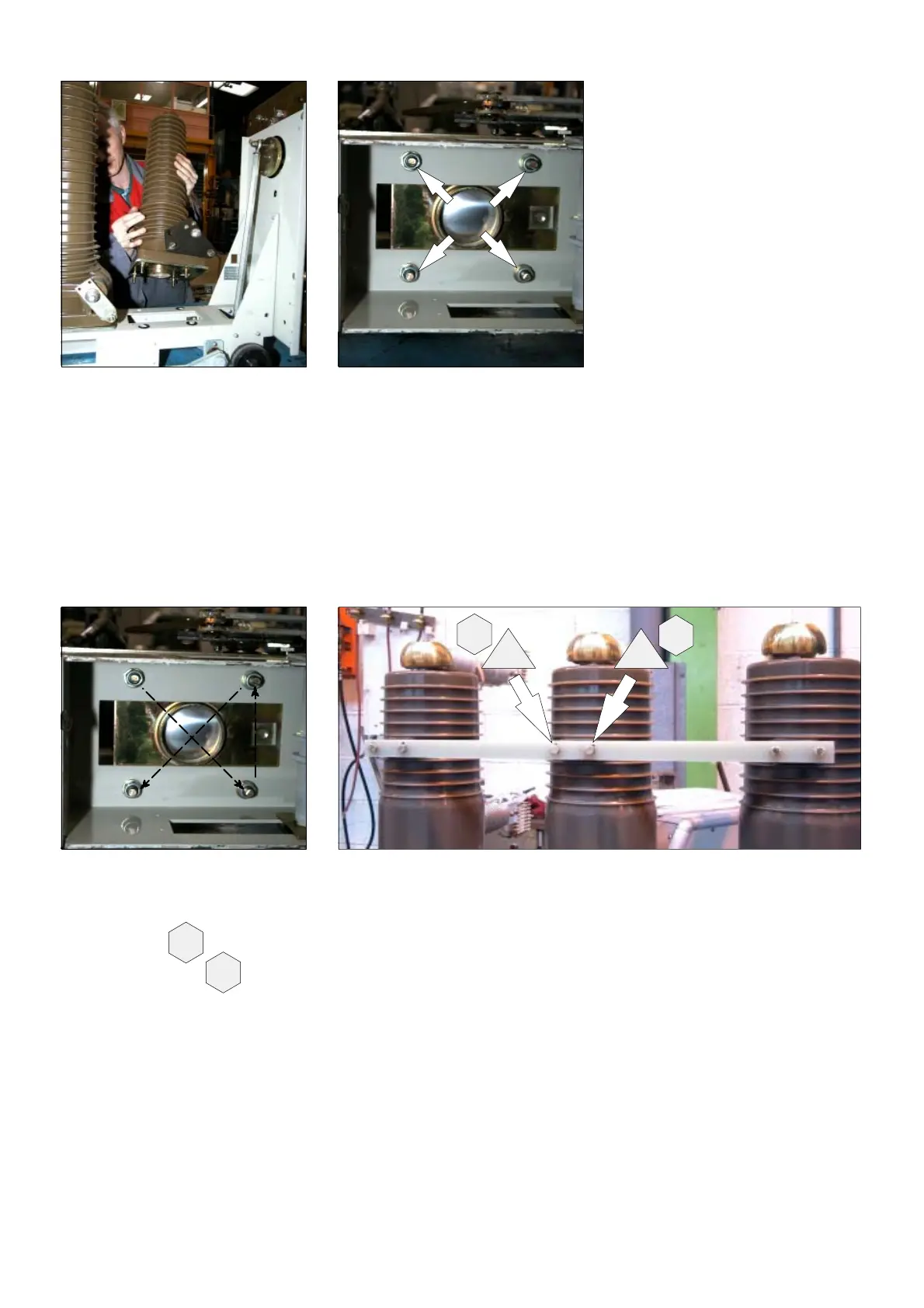

Fixing the pole
1 - Base plate.
Progressively block the nuts
with a torque wrench and
diagonally:
- Ø10 -->
- Ø12 ----->
1
2
3
4
2.4
4.2
2 - Upper linkage with the
insulating spacer or beam
Degrease the bolts.
Apply a film of thread lock to
each bolt.
In all cases, the positioning of
the fixing bolts must be made
without any stress on the pole
(respect the original shimming).
2.4
2.4
