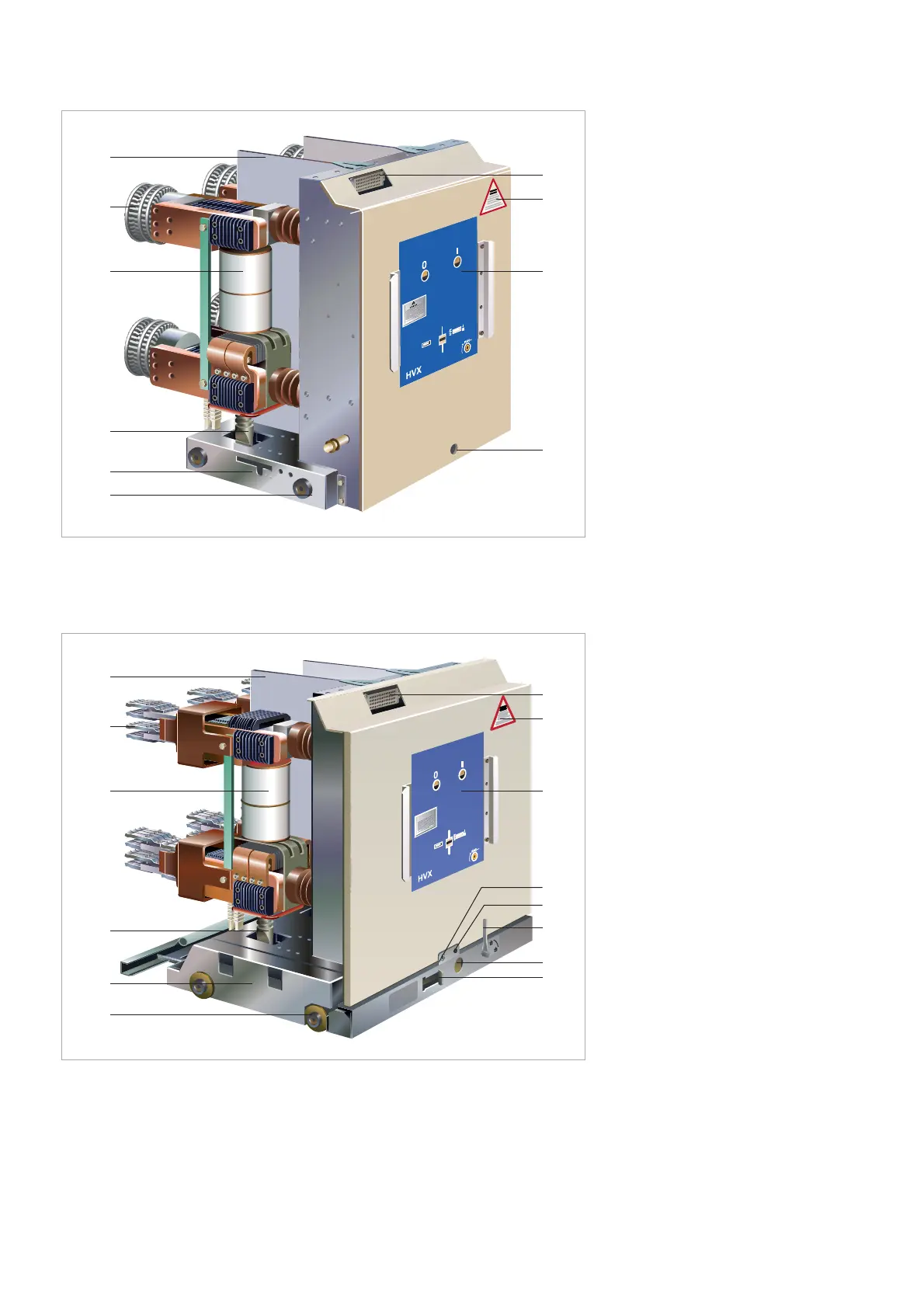

Fig. 2.2
Vacuum circuit breaker HVX-E with withdrawable part for PIX switchgear panels
1 Low-voltage terminal
2 Information plate for commissioning
3 User interface
4 Position indicator - withdrawable
part in service position
5 Position indicator - withdrawable
part in disconnected position
6 Lever for locking/unlocking the with-
drawable part in the panel
7 Insertion opening for manual racking
in/out the withdrawable part
8 Slide for opening the insertion ope-
ning (7) for manual racking the with-
drawable part in and out manually
9 Withdrawable part´s rollers
10 Withdrawable part
11 Press rod (transfer of ON/OFF swit-
ching movement)
12 Vacuum interrupter chamber
13 Moving contacts
14 Pole partitions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Fig. 2.3
Vacuum circuit breaker HVX-E with withdrawable part for PIX high current switchgear
panels
