No additional charge of compressor oil is necessary.
L Tot. = Total tubing length (L1 + L2 + L3...)
Ln = Maximum tubing length of a single indoor unit (n=1,2,3...)
REQUIRED AMOUNT OF ADDITIONAL REFRIGERANT
For tubing 1/4 “ - 3/8” = 15g/m
For tubing 1/4 “ - 1/2” = 20g/m
For tubing Emix (3/8”) = 15g/m
LIMIT OF ELEVATION DIFFERENCE - OUTDOOR UNIT/INDOOR UNIT: 10m (H1, H2, H3, H4, H5, H6)
LIMIT OF ELEVATION DIFFERENCE BETWEEN INDOOR UNITS: 5m (H)
1. REDUCTION 1/2F - 3/8M + PIPE UNION 3/8
2. REDUCTION 3/8F - 1/2M + PIPE UNION 1/2 (2pcs for AEI1G110)
3. CONICAL COVER
4. DRAIN TUBE
2
4
13
AT SHIPMENT ADDITIONAL REFRIGERANT
L Tot. (m) L n (m) L Tot. (m) L n (m)
AEI1G80
AEI1G110
MONO SPLIT 30 - 50 -
DUAL SPLIT 40 30 65 30
TRIAL SPLIT 40 30 65 30
QUADRI SPLIT 40 30 65 30

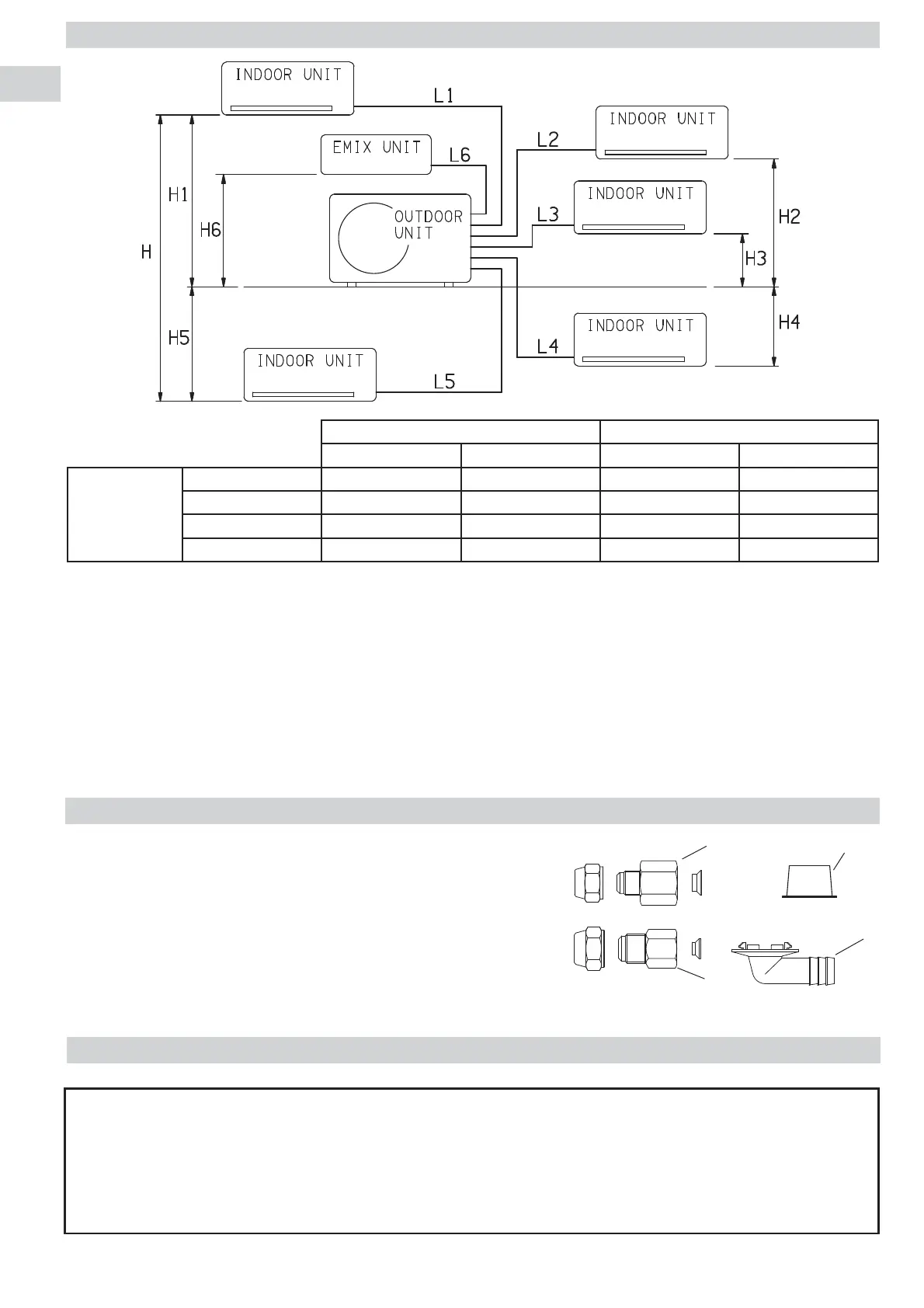

6 - TUBING LENGTH AND ELEVATION DIFFERENCE LIMITS
7 - ACCESSORIES SUPPLIED WITH THE UNIT
8 - TOOLS REQUIRED FOR INSTALLATION (NOT SUPPLIED)
1.Standard screwdriver
2. Phillips head screwdriver
3. Knife or wire stripper
4. Tape measure
5. Level
6. Sabre saw or key hole saw
7. Hacksaw
8. Core bits ø 5
9. Hammer
10. Drill
11. Tube cutter
12. Tube flaring tool
13. Torque wrench
14. Adjustable wrench
15. Reamer (for reburring)
16. Hexagonal key
