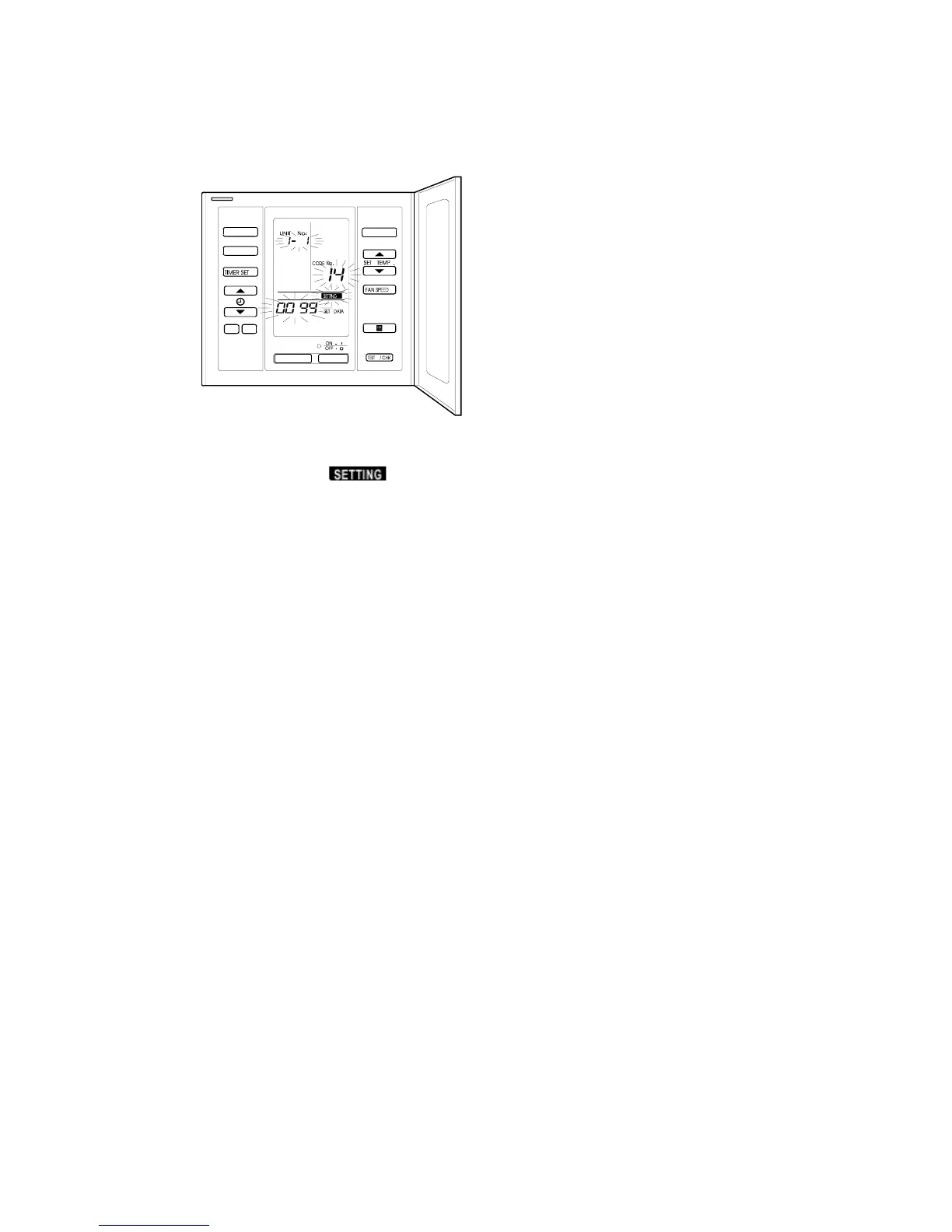

i) Select the code No. 14 to set group setting with the # , $ (SET TEMP) button.
j) Set the No. of group setting as shown below with the
# , $ ( ¿ ) button.
k) Press the SET button.
UNIT No., CODE No. 14, and SET DATA change from flashing to ON state.
l) If you made a mistake, press the CL button so that setting returns to the initial state.
m) Press the TEST / CHK button to finish this mode.
The display is disappeared.
n) Confirm the indoor unit address (UNIT No.) with the UNIT button after pressing the ON / OFF button.
o) Finally, remove the short circuit of DISP PIN.
And in case of group control, be sure to restore the branch wiring to its original wiring. In case of remote
controller–less system, remove the remote controller.
SET CL
MODE
UNIT
FLAP
AIR FLOW
R.C. No.
0371_M_I
55
