5-13 JUMPERS CONFIGURATION

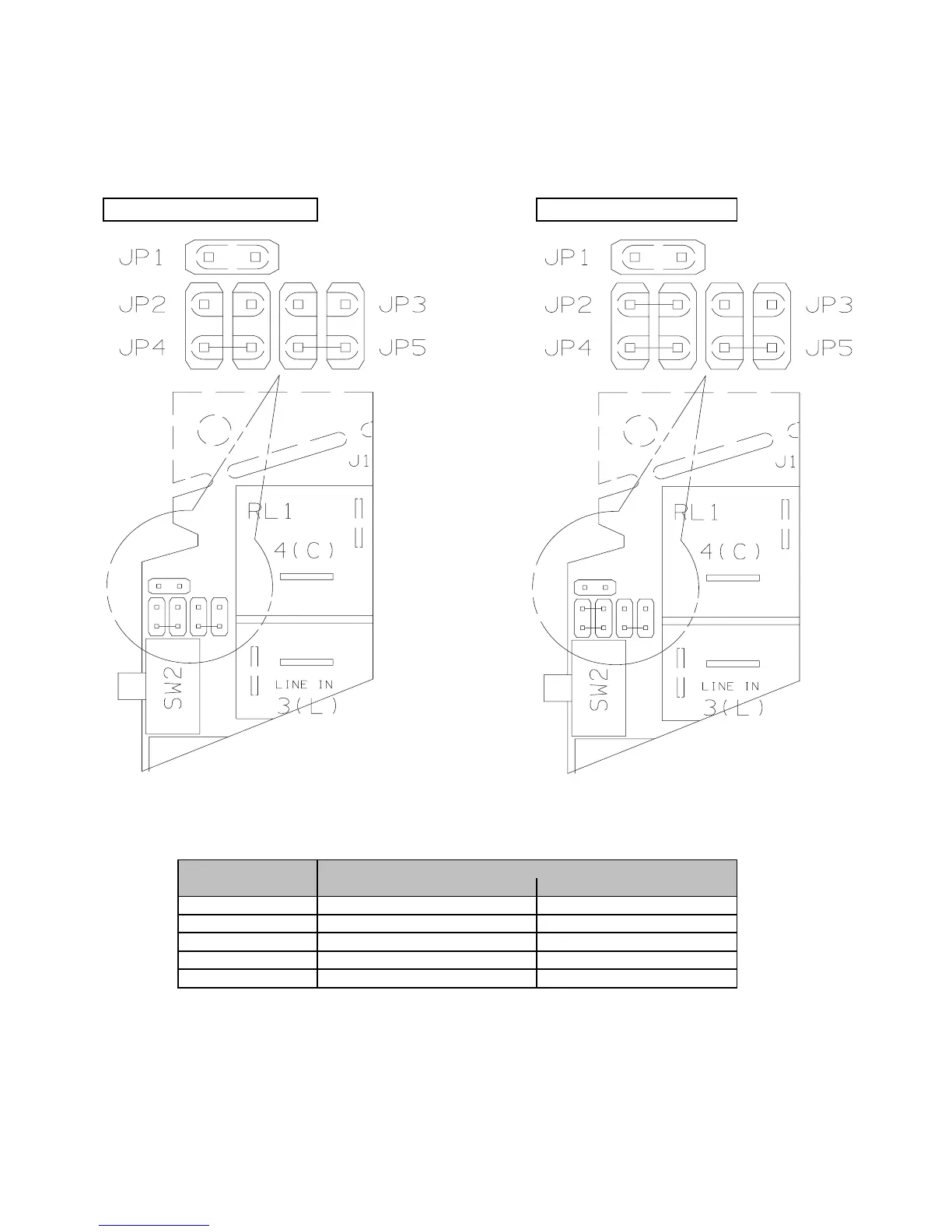

Jumpers are located on the indoor PCB near the MODE button.
Unit is shipped with jumpers set according to the following table:
JUMPER
HEAT PUMP MODELS
JP1
open
JP2
open
JP3
open
JP4
closed
JP5
closed
HEAT PUMP MODELS
closed
STATUS
COOLING MODELS
open
closed
closed
open
COOLING MODELS
27
26
28
