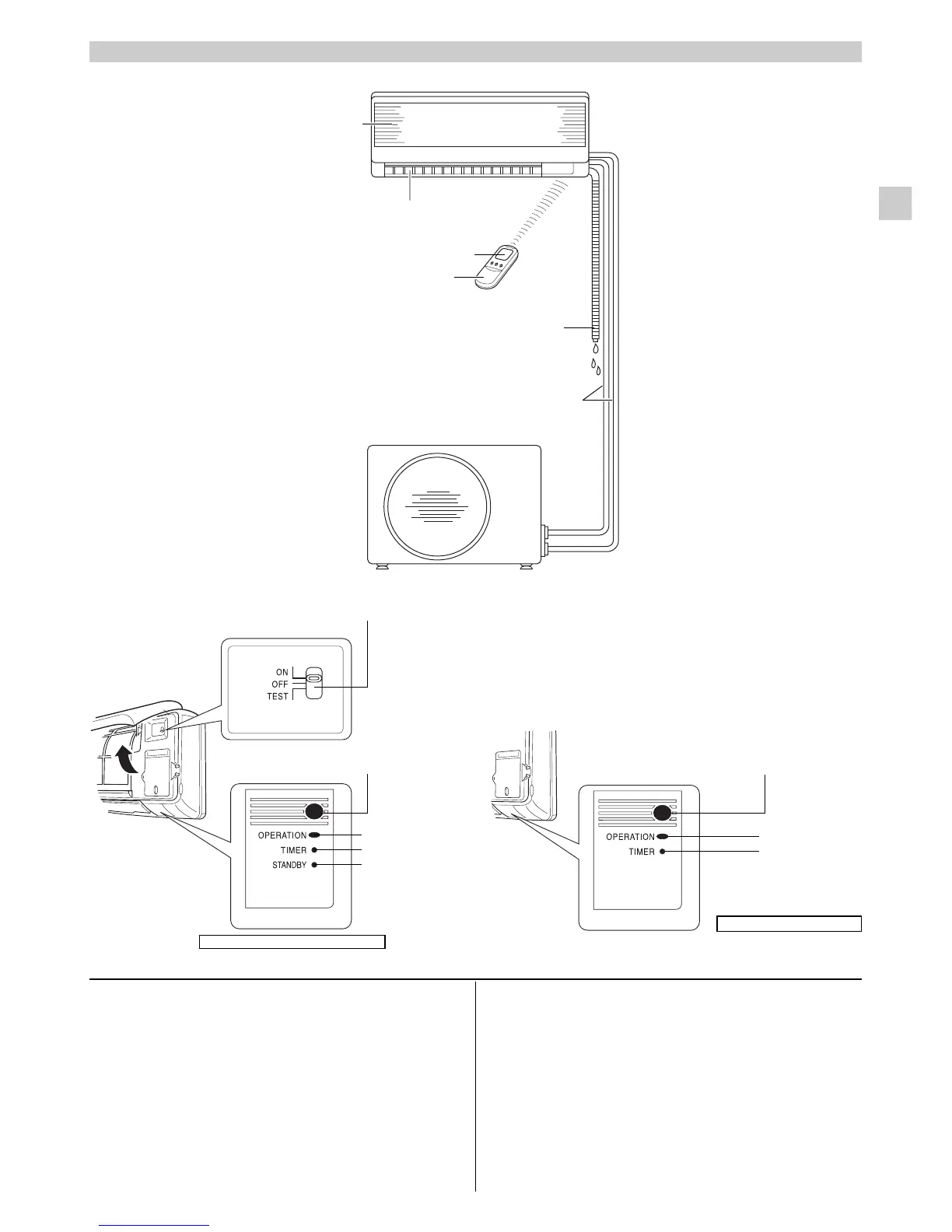

NAME OF PARTS AND OPERATION SELECTOR SWITCH
1. Remote control unit.
2. Sensor: Detects the room temperature around the remote
control unit, the air conditioner is controlled accordingly.
3. Air outlet : distributes filtered and treated air into the room.
4. Air inlet : room air is sucked in through filters.
5. Receiver : receives signals transmitted from the remote control.
6. Flexible drain tube: removes condensate.
7. Refrigerant tubes: convey refrigerant between the indoor
and outdoor unit.
8. Operation selector.
ON Position: In this position the air conditioner is operating
and controlled by the remote control unit.
Set the selector normally in this position.
OFF Position: Switch the selector to the off position if you
are not going to use the air conditioner for
a few days or longer.
3
EG
4
3
6
INDOOR UNIT
OUTDOOR UNIT
7
1
2
COOL / DRY / HEAT Model Only
INDOOR UNIT
5
OPERATION lamp
8
TIMER lamp
5
OPERATION lamp
TIMER lamp
STANDBY lamp
COOL / DRY Model Only
To Next Page
