6. Disconnect the ground wire (leading from the battery ground terminal post), at the
engine.
7. Remove the radiator overflow bottle at the front of the engine.
Conquests manufactured prior to CB14963 have an O.D.G overflow bottle and holder to
remove. Conquests manufactured from CB14963 utilize a Kawasaki bottle secured
directly to the upper radiator bracket.
8. Unclip the fuel line from the nylon clips at the front of the engine.
9. Remove the engine air filter cover and air element. Photo EN-7
10. Remove the 7 fasteners securing the plastic base of the air filter housing.
Photo EN-8

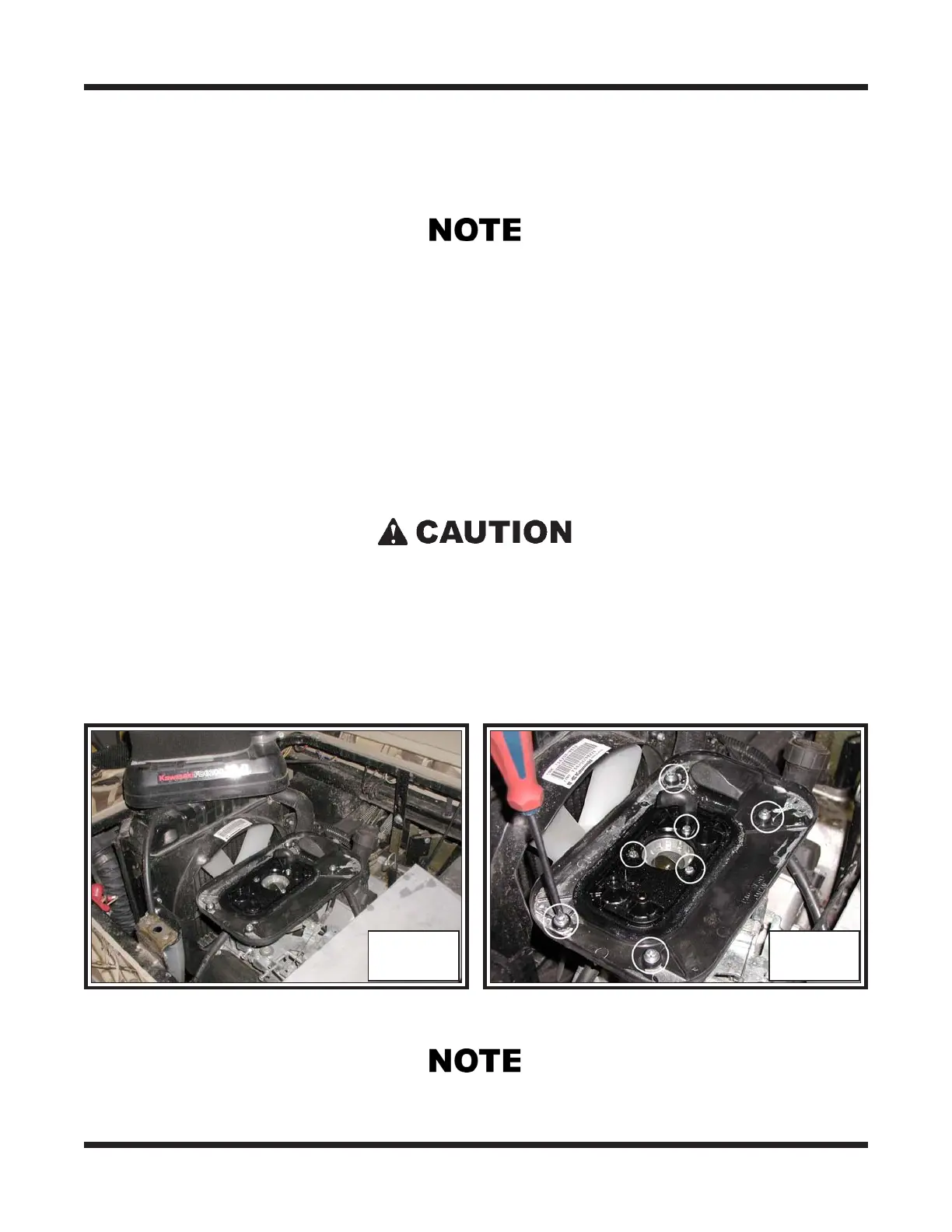

EN-7 EN-8
When removing the 3 fasteners securing the base closest to the mouth of the
carburetor, be aware of the 3 metal inserts in each mounting hole. These may pull
out when removing the fastener. Caution is advised to ensure that they do not fall
into the throat of the carburetor undetected. Severe engine damage will occur if this
has not been observed.
11. Remove the 2 nuts securing the lower metal base of the air filter system to the
carburetor, and remove.
Once the metal base has been removed, temporarily reinstall the 2 nuts to secure the
carburetor lid.
