Argo Standard Series - Installing a Headlamp Bulb

Electrical System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
ES-10
ES-2

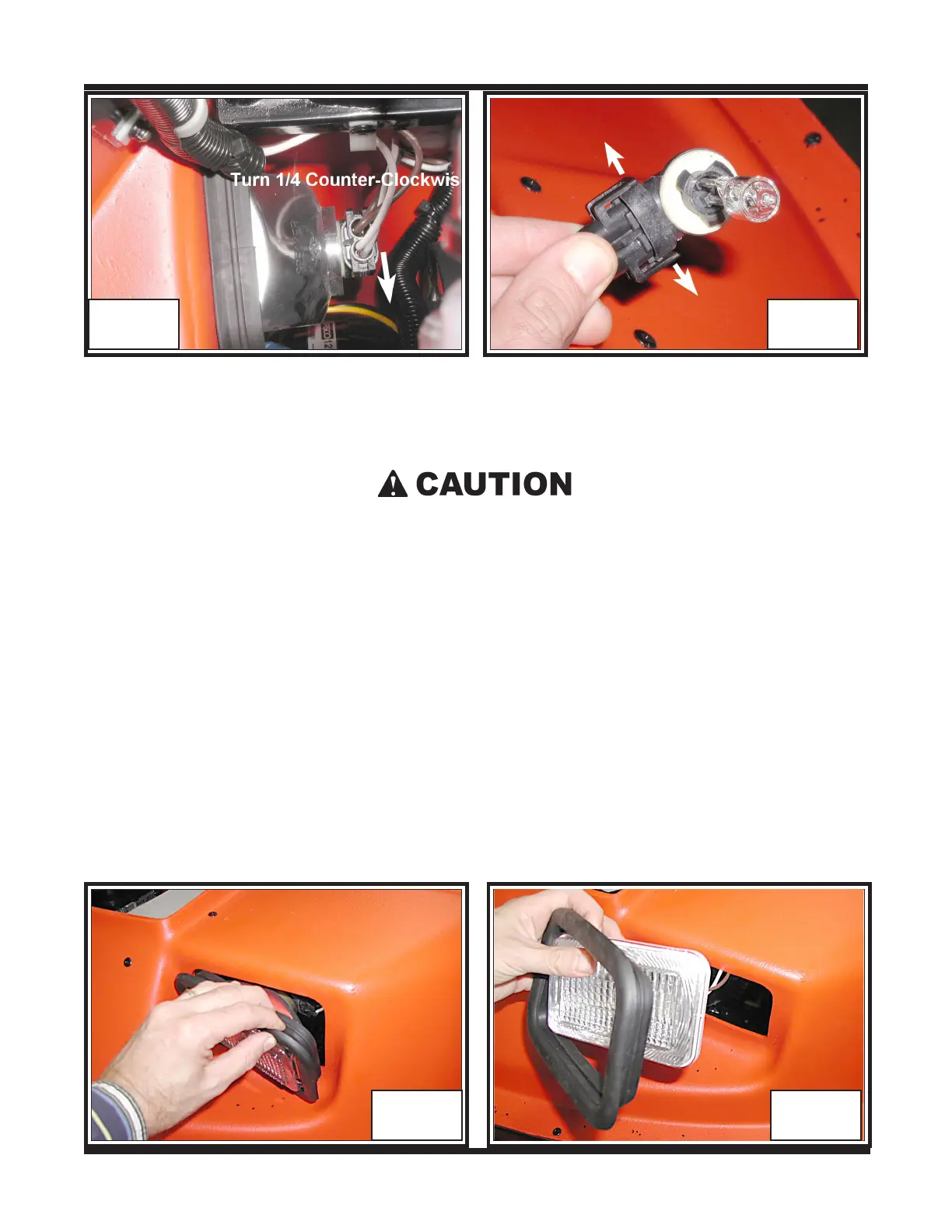

3. Disconnect the bulb from the lens. Pry the 2 locking clips on the bulb apart while
pulling it from the wiring. Photo ES-3
ES-3
Installing a Headlamp Bulb
When installing the new bulb, avoid any contamination of the glass surface. Do not
touch the bulb with your fingers.
4. Clip the new bulb assembly into the wire harness.
5. Reaching in through the engine access area, align the bulb assembly with the head-
lamp housing. Push in and turn 1/4 turn clockwise.
Removing the Headlamp Lens Assembly (Conquest Models from CB12581)
1. Grabbing the rubber headlamp bezel, pull the lens assembly from the upper body.
Photo ES-4
2. Unclip the bulb from the wire harness as described in Photo ES-3
3. Peel the rubber headlamp bezel from the lense. Photo ES-6
ES-4 ES-6
