3. ELECTRICAL DATA

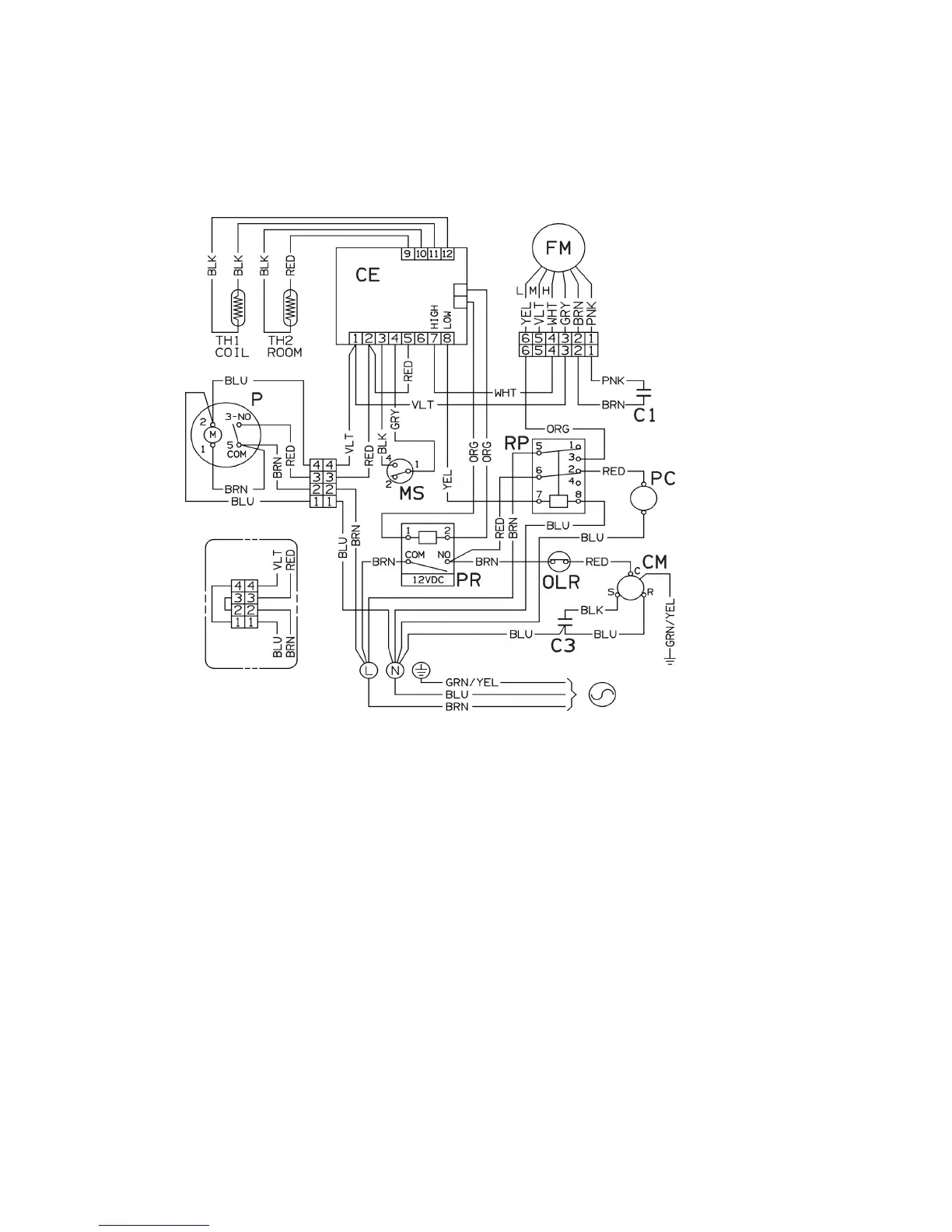

3-1 Electric Wiring Diagram
4,9 32
COMPRESSOR
CM/C
CAPACITOR
Cx
ELECTRIC HEATER
RE
FAN MOTOR
FMI/MV
BLACK
BLK
OVERLOAD PROTECTOR
OLR/K
BLUE
BLU
ELECTRONIC CONTROL
CE
BROWN
BRN
COMPRESSOR RELAY
PR/RC
GREEN/YELLOW
GRN/YEL
CONDENSATE PUMP
PC
ORANGE
ORG
PUMP RELAY
RP
RED
RED
DEHUMIDIFIER SWITCH
ID
WHITE
WHT
FLOAT MICROSWITCH
MS
YELLOW
Y
EL
ELECTRIC HEATER RELAY
RR
GREEN
GRN
SENSOR
TH1/S
PINK
PN
K
THERMOFUSE
TF
SAFETY THERMOSTAT
TS
PROGRAMMER
P
Legend of colors
