Check the box and make sure you have all the parts and fittings listed. If not, contact your local store or the
Helpline
0844-335-0229 who will be able to help you.
7

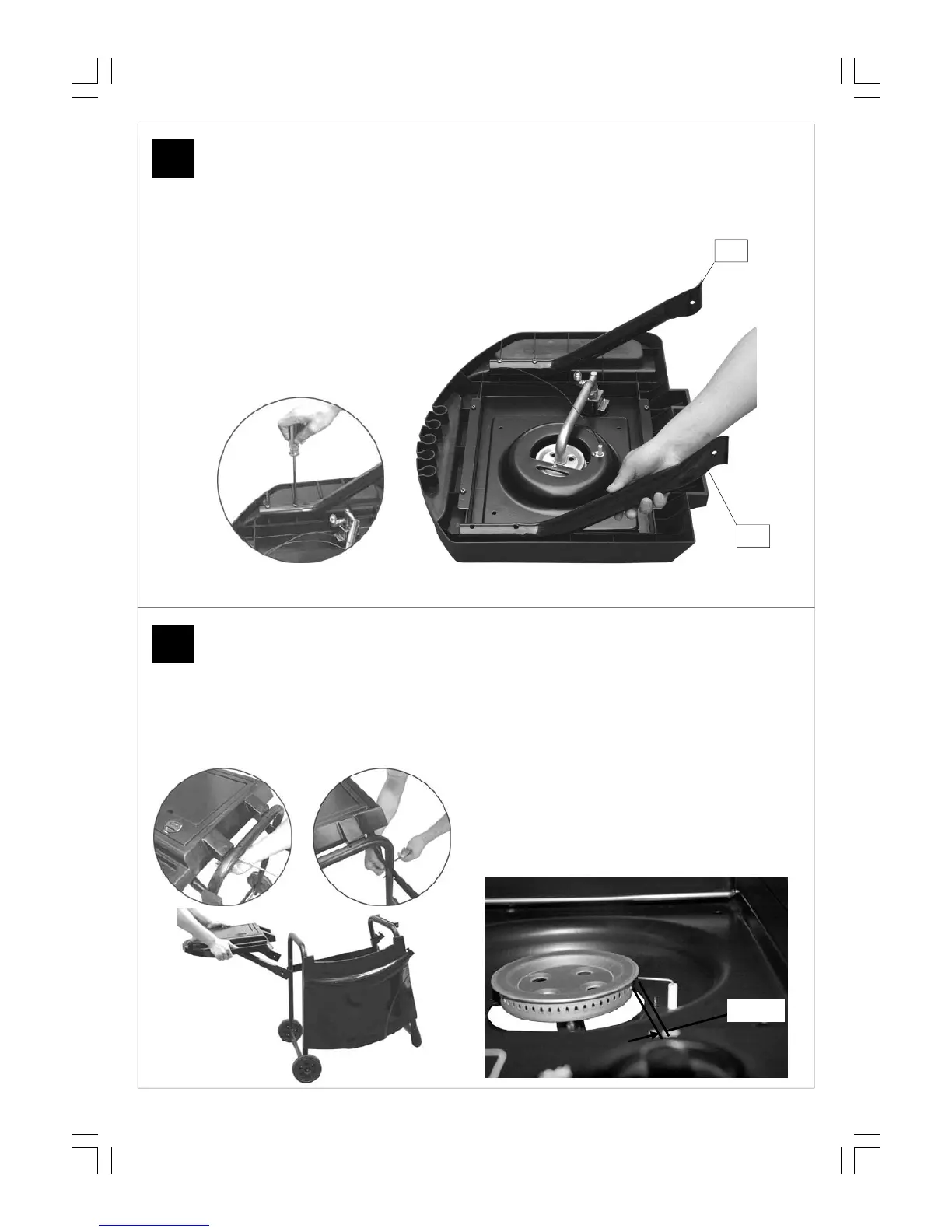

Attach the Side Burner Rear/Front Support
(C3,C4) to the Side Burner (C1) using
M6x45 Bolt (D10) as shown.
C4
C3
Connect the Side Burner assembly onto the left leg assembly using M6x55 Bolts (D12) and Washers (D13) and M6
Nuts (D14).
Connect the side burner rear support onto the left back leg using a M6x45 Bolt (D10) and Washer (D13) and M6 Nut
(D14).
Connect the side burner front support onto the left front leg using a M6x20 Bolt (D8).
3/16”
Warning: Please unscrew the retaining screw of side
burner head and adjust side burner head as shown
below to obtain 3/16”gap between electrode tip and
side burner head. Ensure that electrode tip aim at any
one flame outlet of side burner head.
8
