7
Check the box and make sure you have all the parts and fittings listed. If not, contact your local store or the
Helpline
0844-335-0229 who will be able to help you.
5

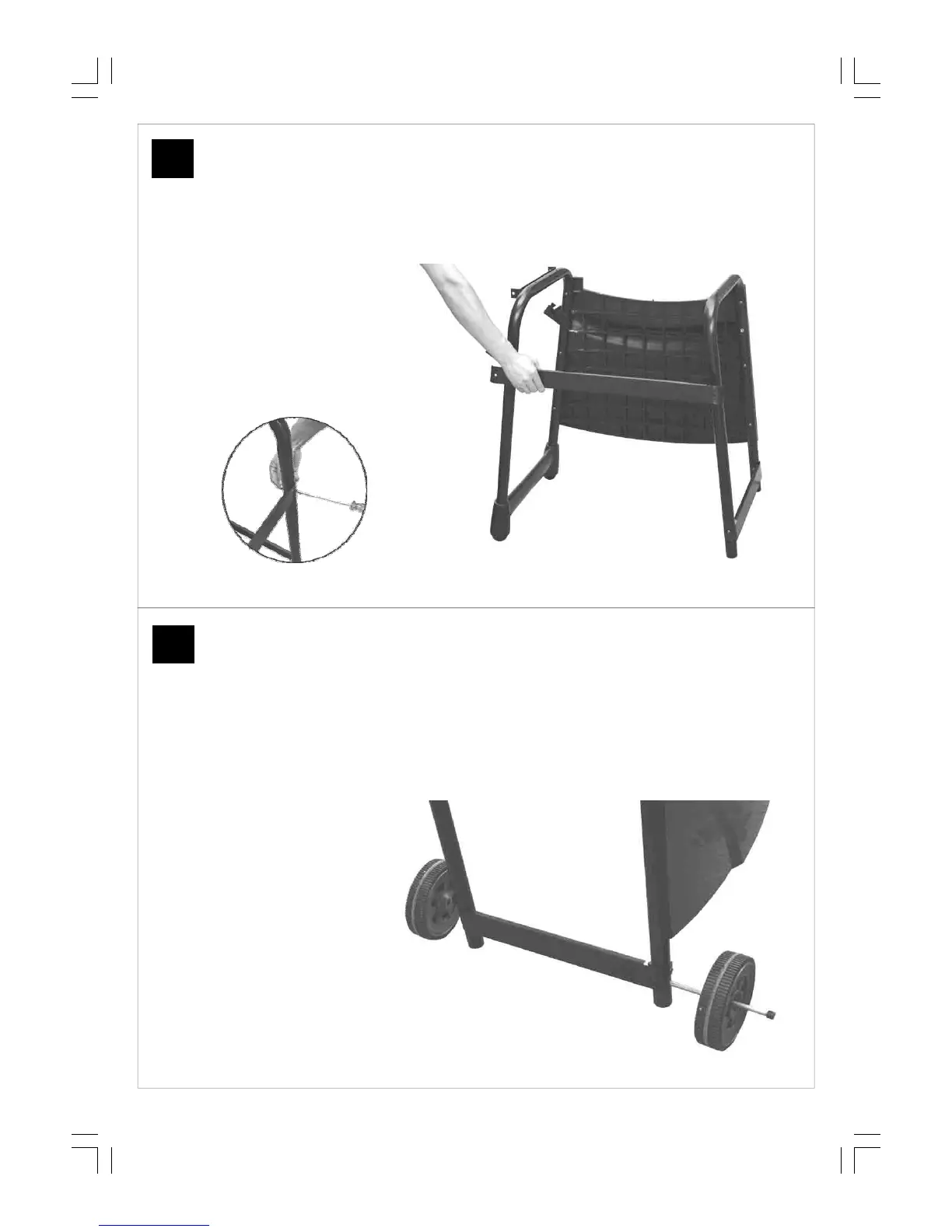

Feed the M6x45 Bolts (D10) through the
Washers (D13), Rear Support (C8) and
rear legs, secure with M6 Nuts (D14) as
shown.
Unscrew the Locknuts (D2) from both end
of Axle (C16) to get Axle Washers (D1).
Thread the axle through left legs Assembly,
place a axle washer on each end of the axle,
fit the Wheels (C17) onto the axle, and
secure with locknuts.
6
