ORIGINAL INSTRUCTIONS
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE
The machine is intended for impact drilling in
brick, concrete and stone as well as for drilling in
wood, metal and plastic. Machines with electronic
control and right/left rotation are also suitable for
thread-cutting.

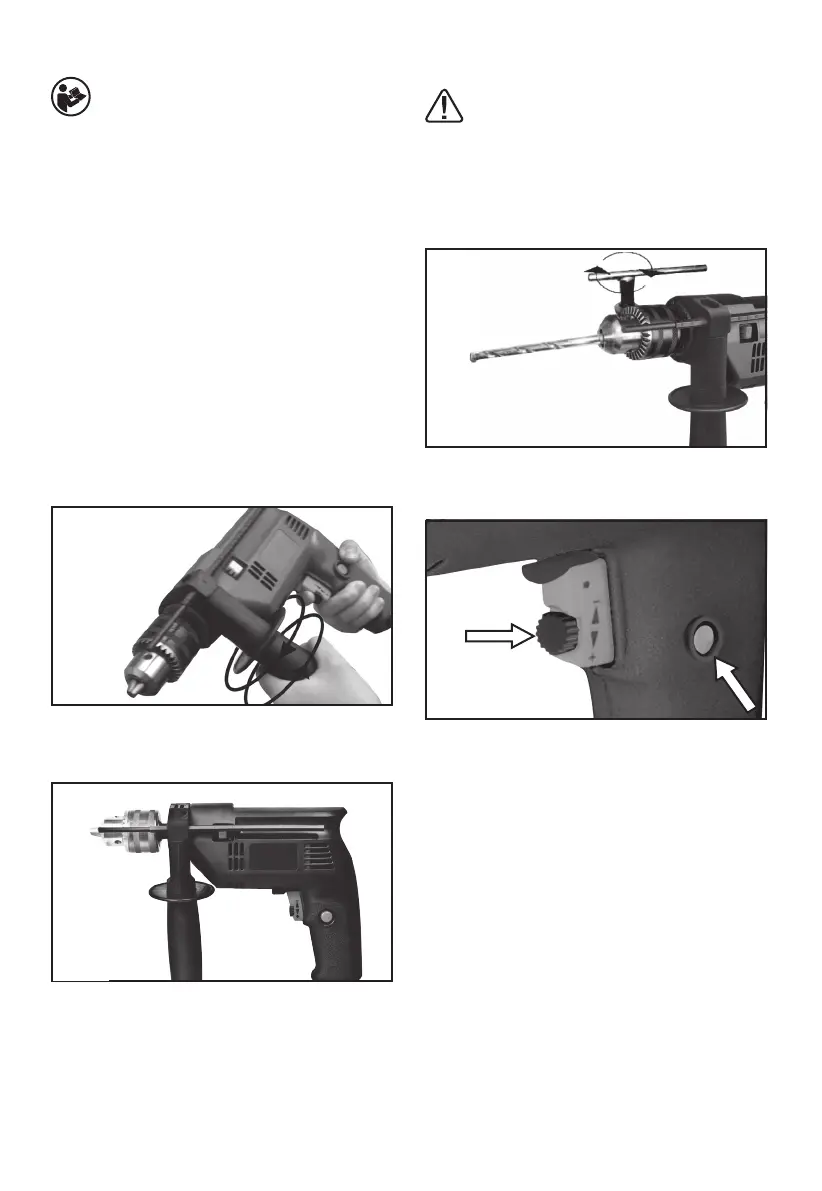

1. INSTALLING THE AUXILIARY HANDLE
(See Fig. A)
For your personal safety we recommend using
the auxiliary handle at all times.
To t the handle, loosen the bottom of the handle
anti-clockwise and slide the clamping loop over
the handle collar. Rotate the handle around the
handle collar until the handle is in the desired
position. Tighten fully. If you are right handed t
the handle as shown in A. If you are left handed
t the handle the other way round.
2. INSTALLING THE DEPTH GAUGE
(See Fig. B)
Fig.B
The depth gauge can be used to set a constant
depth to drill. To use the depth gauge, loosen the
handle by rotating the bottom section of handle
anti-clockwise. Insert the depth gauge through
hole in handle. Slide the depth gauge to required
depth and tighten fully.
3. INSERTING A TOOL INTO CHUCK
(See Fig. C)
WARNING: Before installing tool, remove
mains plug from mains supply.
Remove chuck key from key storage tab at base
of drill handle, place key into chuck, turn key anti-
clockwise to undo/loosen chuck, inset drill/tool
and rmly tighten chuck by turning key clockwise.
Remove key and replace in storage tab at base of
drill handle.
Fig.C
4. OPERATING THE ON/OFF SWITCH
(See Fig. D)
Fig.D
Press the on/off switch in for operation, release
switch to stop.
If you wish to use the drill continuously the switch
lock button can be pushed in after the on/off
switch has been depressed. To release the lock
button simply depress on/off switch fully, the
button will automatically release.
5. VARIABLE SPEED CONTROL SELECTOR
(See Fig. E)
The maximum speed can be altered by turning
the speed control. Turn clockwise to increase and
anti-clockwise to decrease speed. The speed
of the drill varies with the amount of pressure
applied to the on/off switch, i.e. more pressure for
higher speed.
Fig.A
