Press down
Door
Back view of Door
Door
Back view of Door
STEP 1
STEP 1 : Press down the top latches of door. If the latches are at lower position already, please go
to Step 2.
STEP 2 : Place the Door Rollers at the bottom edge of door into the lower V-Track at front bottom
rail of case. Make sure that both 2 Rollers stand on the V-Track, then push in the top part of door
so that the top Latches of door are ready at the position
of the upper U-Track at the front top rail of case.
STEP 3 : Use your fore fingers to press in the buttons at the side of the Latches so that the
Latches go up into the U-Track.
Press in
Top Rail
Door
Back view of Door
Top Rail
Door
Back view of Door
STEP 3
2
3

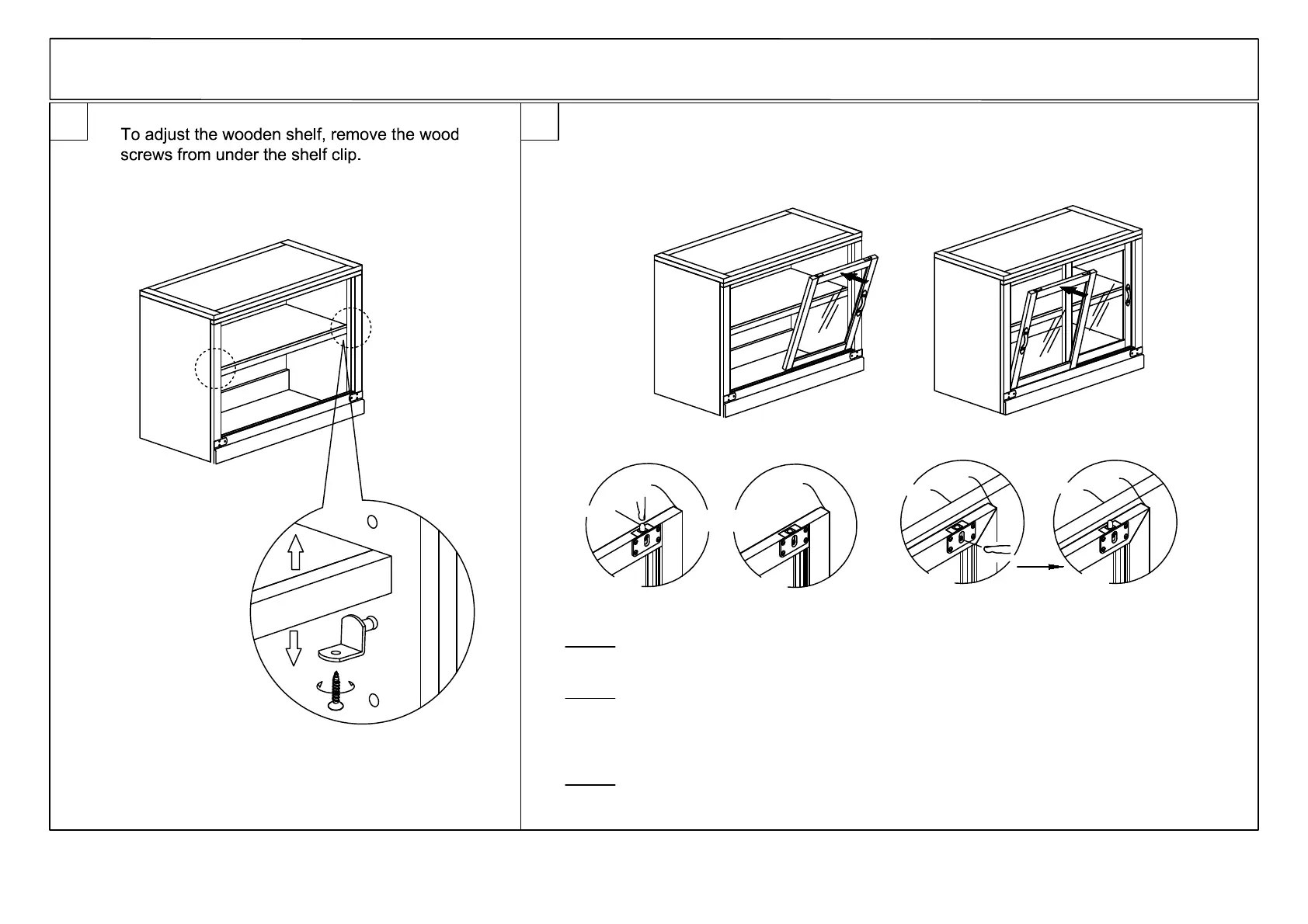

TO ASSEMBLE THE SLIDING DOOR INTO
THE CASE, PLEASE FOLLOW BELOW STEPS:
Page 2 of 2
ASSEMBLING INSTRUCTION TREMONT MODULAR 40" CAB BASE
