ASSEMBLY INSTRUCTIONS
1. Set the mending plate against the product. Use the bolt (B) provided to connect the mending plate (F) to both of the
top and bottom the bookcase with allen key (G). Check the furniture leveling and if necessary adjust the leveler on the
bottom of the furniture's leg.
2. Carefully place the bookcase (A) against the wall to the desired location and mark mending plate on the wall by a
pencil. See "ASSEMBLY INSTRUCTIONS BY WALL TYPE" for mounting instructions based on your wall type,
concrete, drywall, or drywall and studs.
3. Move the bookcase (A) away from the wall and remove bolt (B) on the top and bottom the bookcase with allen key (G).
4. Attach the mending plates (F) to pre-marked positions on the wall. Use screws (C)to fix.
5. Move the bookcase (A) close to the wall. Align the holes on the mending plate to the fixed nuts on the bookcase. Use
the bolt (B) provided to connect the mending plate (F) to both of the top and bottom the bookcase with allen key (G).
WOODROW DOUBLE BOOKCASE

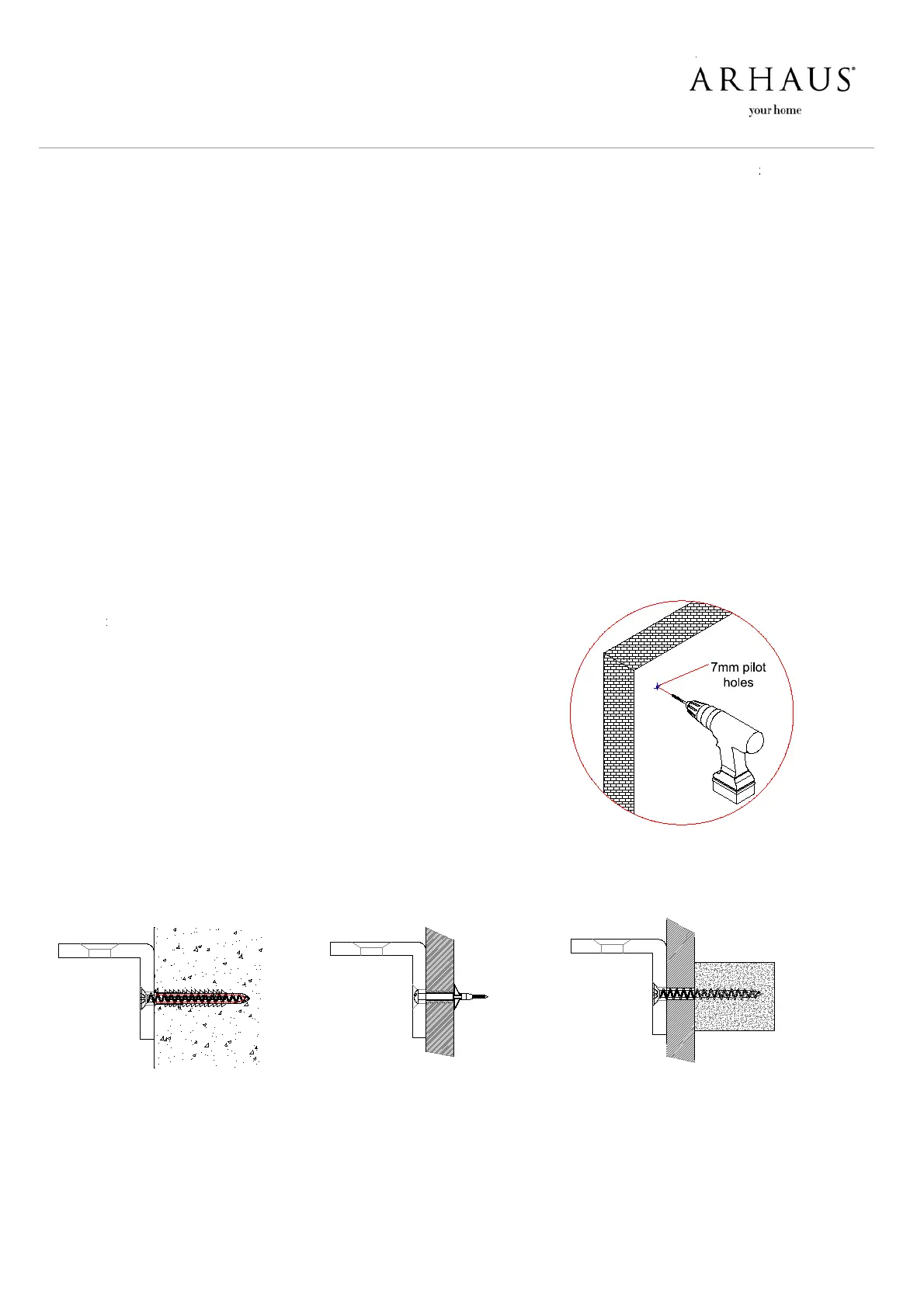

ASSEMBLY DIAGRAMS
CONCRETE
DRYWALL W/STUDS
DRYWALL W/O STUDS
FIGURE A
FIGURE C
FIGURE B
FIGURE D
ASSEMBLY INSTRUCTIONS BY WALL TYPE
CONCRETE: Drill 7mm pilot hole on each marking see FIGURE D,
and then insert plastic anchor. Use a screwdriver to attach the
hanger to the wall with screws. See FIGURE A.
DRYWALL WITHOUT STUDS: Drill 7mm pilot hole on each
marking see FIGURE D. Use hollow wall anchors and screws to
affix to drywall. See FIGURE B.
DRYWALL WITH STUDS: Use screws to affix to studs. See
FIGURE C.
