(41)Other Parameter Function (42)Error Messages
(32)Alarm Function
(33)ON/OFF Control
Thermocouple
breaking
(43)Special Function
(44)Order Code
In ON/OFF control type, we can
set ON/OFF hysteresis band to
control temperature in desired range.
(34)Manual Control Type
The user can force to set output percentage.
(35)Output Function
ON/OFF hysteresis band
Alarm Range :
It's avalible to set alarm
0 to 99 in unit
Alarm Hysteresis band :
range from
or
It's avalible to set alarm
hysteresis band from 0 to 10
in unit or
And avoid temperature to
unstable and fast change in
critical point.
Alarm range
Alarm range
Alarm range
Alarm range
1. Relay Output :
It's better to set output cycle time >20sec in relay output. The setting
time is larger and the duration of relay is longer.
2. Digital voltage Output :
It's available to set output cycle time from 1 to 60 sec as user's
need in digital voltage output (24V).
3. Analog Output :
It's available to set the high and low limits of analog output after
the value of output cycle time equal 0. The range of analog
output are 0~20mA or 0~10V.
1. Password
Password has 4 digits.The units digit controls the using of
parameter level 1~4, the tens digit controls the setting of
Parameter level 1~4, and the other digits should be set by 0.
The example is the following :
Password = 0023
The parameter level 1~3 can be used and the level 1~2 can
be set.
*DP:Decimal point
2. Thermocouple type
3. Unit
The unit : or
4. Temperature Offset
The tem
perature offest range :
-99~+99 /
5. M ain Output Percentage High Lim it :
This function can magnify and minify
of PID control. the output percentage
The related equation as the following:
Output percentage after tuning = ( output percentage before
it ) / 100 tuning * output percentage high lim
6. Aux. Output Percentage High Lim it :
This function can magnify and minify the output percentage
of PID control. The related equation as the following:
Output percentage after tuning = ( output percentage before
7. Restore The Default :
tuning * output percentage high limit ) / 100
This function will restore the default from the user's settings.
1.PID Self Tuning :
The condition for starting : Present value should be lower than
setting for 45 . Present value will flash during executing
self-tuning.
2.Manual Output Control :
Under manual output control,setting value is manual output
percentage and setting output key to tuning output percentage
directly.

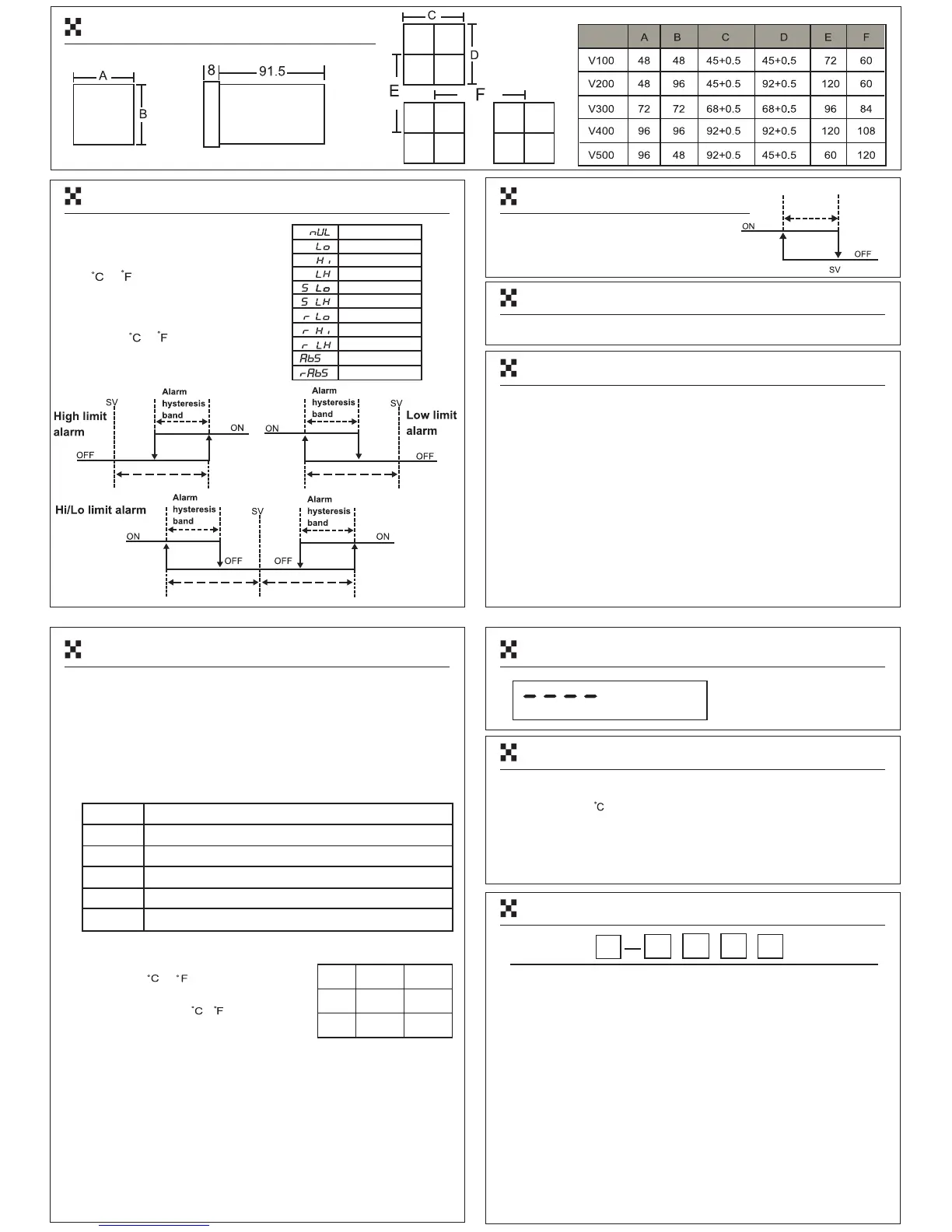

(31)Dimension
TC type
Open
Short
JP1
JP2
PT type
Short
Open
J0 TYPE
J1 TYPE
K0 TYPE
K1 TYPE
PT0 TYPE
PT1 TYPE
No alarm
Low limit
High limit
Lo/Hi limit
Low limit standby
Lo/Hi limit standby
Reverse Lo/Hi limit
Absolute
Reverse Lo limit
Reverse Hi limit
Reverse Absolute
Unit: mm
J TYPE without DP,Range: 0~900 °C / 32 1200
J TYPE with DP, Range: 0.0~900.0 °C / 32.0~999.9 °F
K TYPE without DP,Range: 0~1200 °C / 32~1500 °F
K TYPE with DP, Range: 0.0~999.9 °C / 32.0~999.9 °F
PT TYPE without DP,Range: -200~500 °C / -328~900 °F
PT TYPE with DP, Range: -199.9~500.0 °C / -199.9~900.0 °F
~ °F
Model
1：Mode
V100：48 × 48 mm
V200：48 × 96 mm
V300：72 × 72 mm
V400：96 × 96 mm
V500：96 × 48 mm
2 3：Main Output / Aux. Output
O：None
R：Relay ( * )
V：Digital volt. Output 24V/20mA
I：Analog current output 0~20mA, 4~20mA
L：Analog volt. output 0~10V, 0~5V, 1~5V
/
4 / 5：Alarm 1 / 2
O：None
R：Relay ( * )
V：Digital volt. output 24V/20mA
1
2 3 4 5
