Ariens 22-Ton Log Splitter User Manual

EN - 13
IMPORTANT: Rear stabilizer must be in the
transport position before placing beam in
vertical operating position
(see Rear
Stabilizer (Item 12) on page 14).

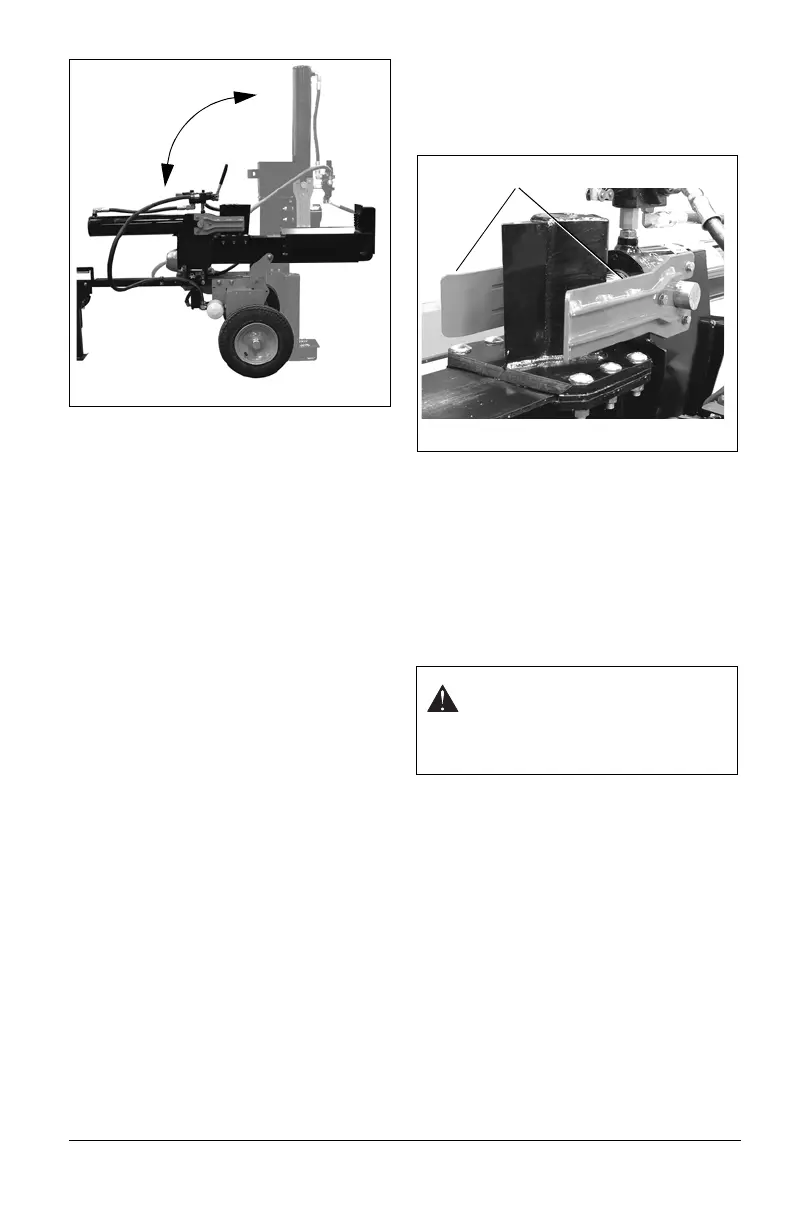

To move beam to horizontal position:
4. Carefully rotate beam down until seated
on lock bracket.
5. Turn beam lock until pin lines up with
hole in lock bracket and release
(Figure 6).
6. Ensure that beam lock pin fully engages
in bracket.
Stripper Plates (Item 13)
(Figure 8)
The stripper plates are designed to remove a
log that has partially split but remains stuck
on the wedge.
To remove stuck logs from the splitter wedge:
1. Move the control lever to the Return/Up
position.
2. Allow the cylinder to retract until the
stuck log contacts the stripper plates.
3. Continue to retract the cylinder until the
log is dislodged from the splitter wedge.
4. Once removed from the splitter wedge
rotate log and split from a different
location or split log from the other end.
Figure 7
CAUTION: Do not use the unit if
the stripper plates are bent or
damaged. Bent or damaged
stripper plates must be repaired
or replaced before use.
Figure 8
Stripper Plates
