GB - 13
Front Jack Stand
Front jack stand must be locked in the down
position whenever the unit is in use and in the
transport position when moving or towing the
unit.
917001
(Figure 13)
1. Remove hair pin from clevis pin and
remove clevis pin from tongue bracket.
2. Rotate jack stand up or down until the
top edge of the handle on the stand
aligns with the upper or lower notch in
the tongue bracket.
3. Insert clevis pin into tongue bracket and
insert hair pin.
917002
(Figure 14)
1. Pull out and hold the lock handle to allow
jack stand to rotate.
2. Rotate the jack stand up or down until
the lock handle aligns with the upper or
lower holes in the jack assembly.
3. Release lock handle.
NOTE: When locked in the down position the
tongue height can be adjusted by rotating the
height adjustment handle clockwise (up) or
counterclockwise (down).
Rear Stabilizer
(Figure 15)
Rear stabilizer must be positioned down and
locked in place when operating in the
horizontal position.
1. Remove hair pin from upper lock pin and
slide lock pin out from brackets.
2. Rotate rear stabilizer down until holes in
stabilizer align with holes in brackets.
3. Insert lock pin all the way through
brackets and stabilizer.
4. Reinstall hair pin.
CAUTION: Do not use the unit if
the stripper plates are bent or
damaged. Bent or damaged
stripper plates must be repaired
or replaced before use.
CAUTION: Jack stand must be
locked in the transport position
before towing the unit.

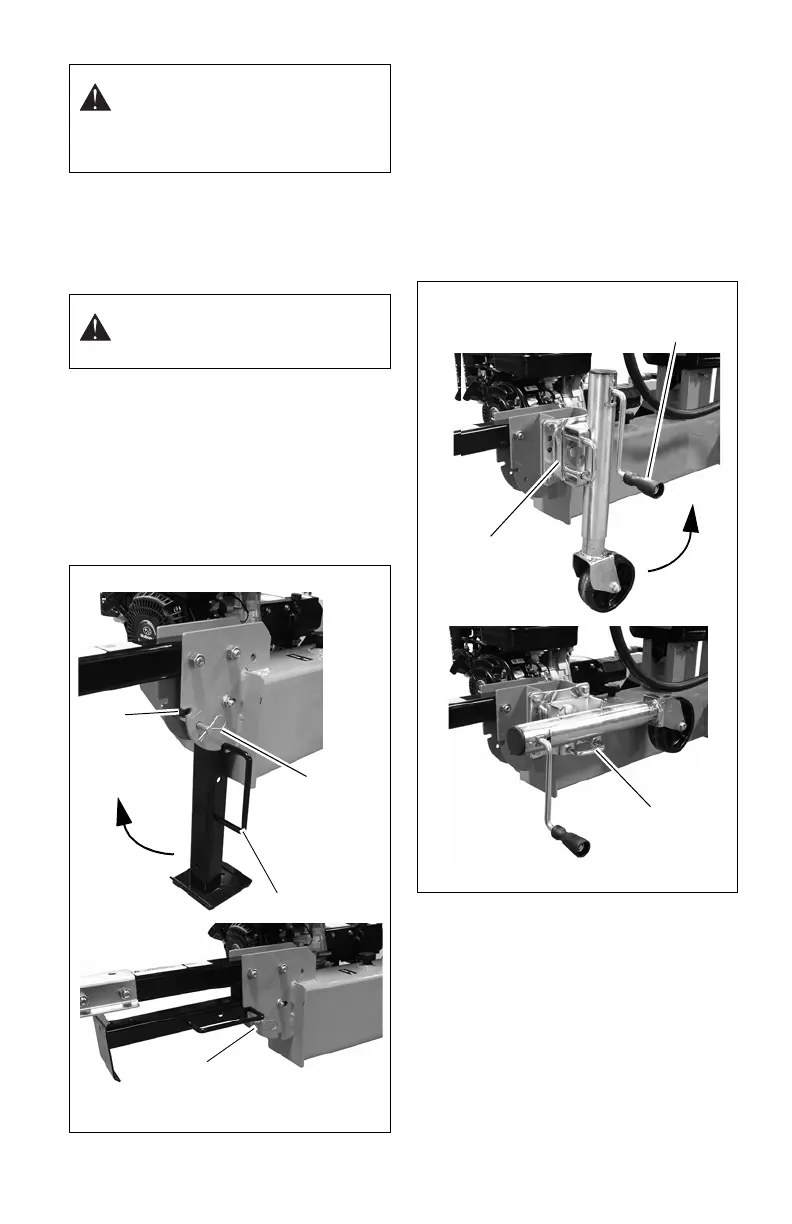

Figure 13
Remove hair
pin and clevis
pin and rotate
jack stand up
or down.
Reinstall clevis
pin and hair pin.
917001
Notch
Handle
Figure 14
917002
Pull out lock
handle and rotate
jack stand up or
down.
Height-
Adjustment
Handle
Release handle
to lock in place.
