4.1 CONTROLS AND FEATURES
SECTION 4 - GENERAL MAINTENANCE & ADJUSTMENTS

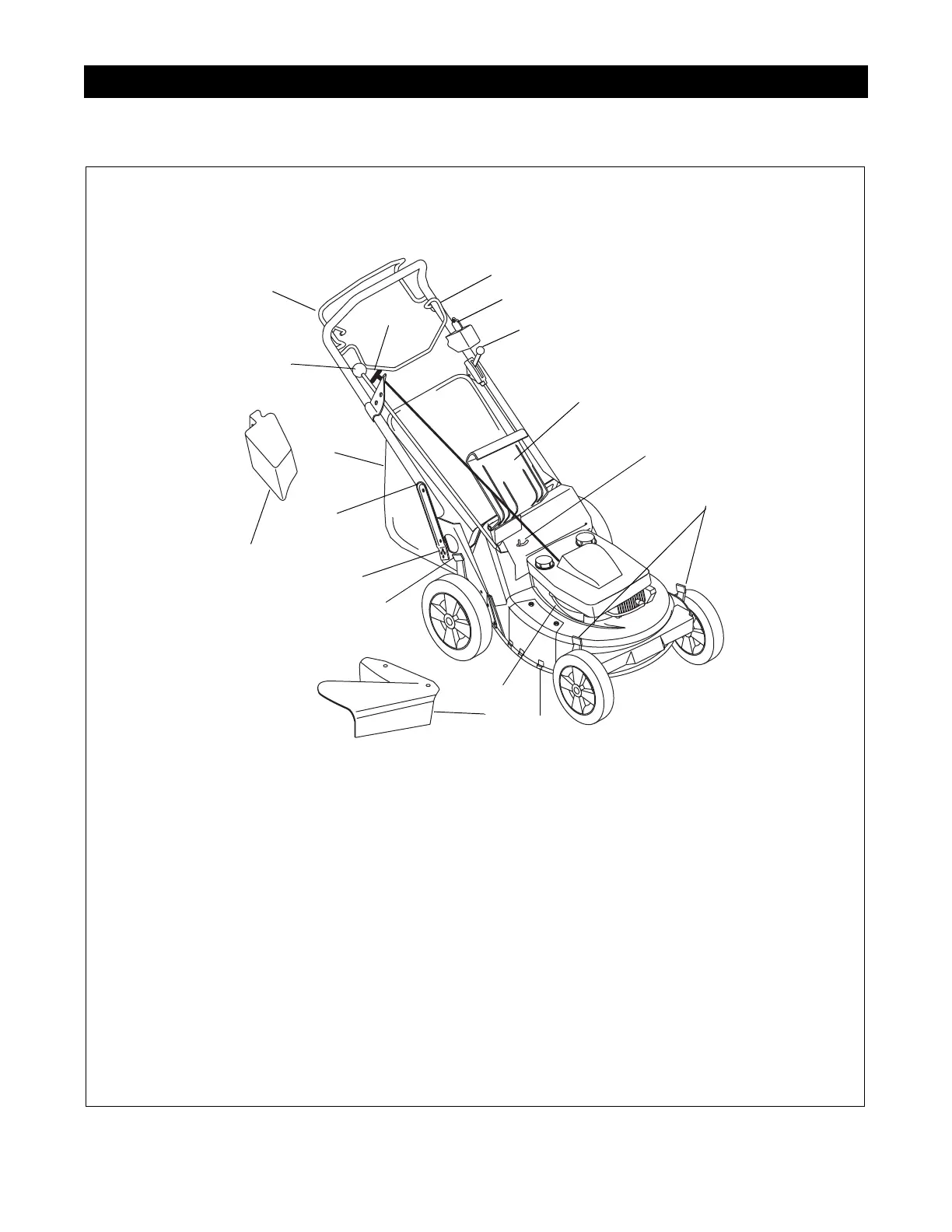

OM0032
1. Engine Control
2. Ignition Switch (Electric Start
Models)
3. Speed Selector (Self-propelled)
4. Primer (Briggs Engine)
5. Side Discharge Cover
6. Side Discharge Deflector
7. Cutting Height Levers (2 Rear
Wheel Adjusters, 2 Front Wheel
Adjusters
8. Rear Door
9. Adjustable and Folding
Handlebars
10.Grass Bag
11.Recoil
12.Wheel Drive Control
13.Mulchmaster™ Plug
14.Throttle Control (Robin Engines)
15.Handlebar Adjustment Holes
16.Speed Indicator (Self-propelled)
Figure 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
7
