Ariens 64 - Page 34

6 - 34

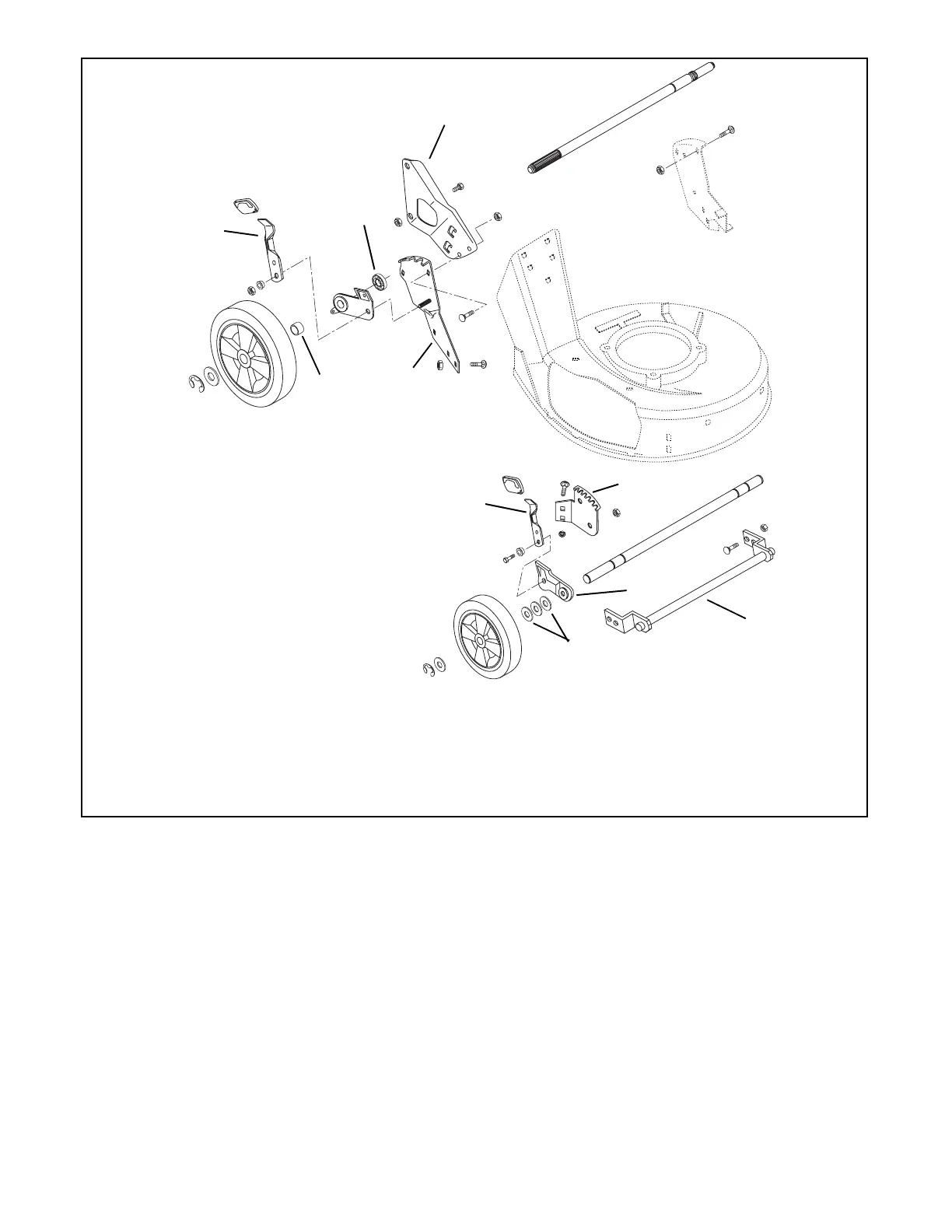

Figure 22 Friction Drive
1. Height Adjustment Lever
2. Spacer Tube
3. Ball Bearing
4. Handlebar Mounting Bracket
5. Rear Quadrant
6. Front Height Adjustment Lever
7. Front Quadrant
8. Adjuster Bracket
9. De-Thatcher Retainer
10.Flat Washer
PM0065
