5

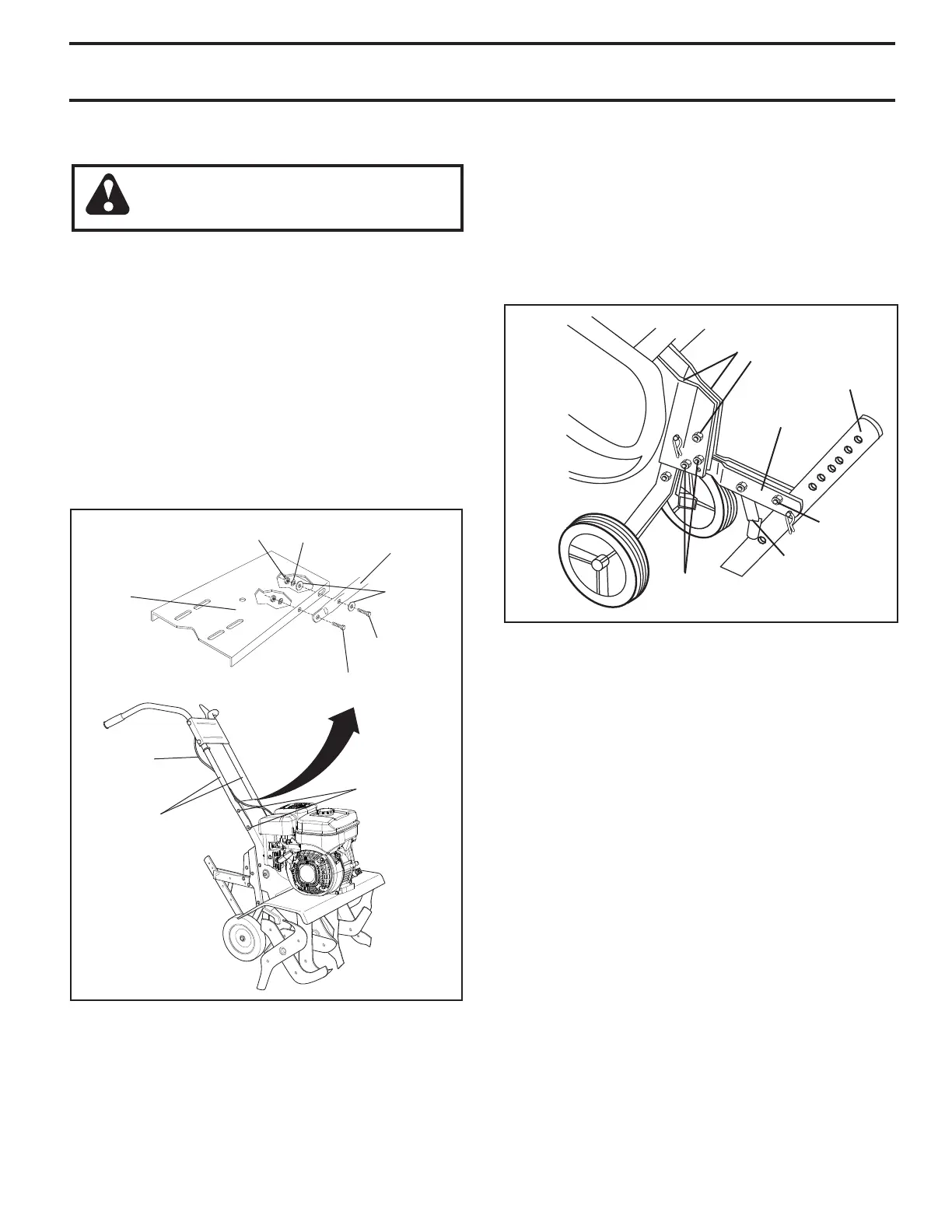

UNPACK CARTON & INSTALL HANDLE
(See Fig. 2)
CAUTION: Be careful of exposed
sta ples when handling or disposing
of cartoning material.
IMPORTANT: WHEN UNPACKING AND AS SEM BLING TILLER,
BE CAREFUL NOT TO STRETCH OR KINK CABLE(S).
• Cut cable ties securing handles.
• Slowly lift handle as sem bly up, route cable(s) as shown
and align han dle holes with handle panel hole and
slot.
• Loosely assemble hardware as shown. The shorter (1"
long) hex bolt is assembled in lower hole of handle.
Repeat for opposite side. Tight en all hardware se cure ly.
• Cut cable ties securing tiller to skid and remove tiller
from skid.
• Remove screws securing depth stake to skid and dis-
card the screws.
DEPTH
STAKE
SUPPORT
BOLT
HEX BOLTS,
LOCK WASH ERS,
AND HEX NUTS
DEPTH STAKE
SUPPORT
NUT “A”
ENGINE BRACK ET
HALVES
Fig. 3
STAKE
SPRING
Fig. 2
ASSEMBLY
HANDLE HEIGHT
• Handle height may be adjusted to better suit operator.
(See “HANDLE HEIGHT” in the Service and Ad just-
ments section of this manual.)
TILLING WIDTH
• Tilling width may be adjusted to better handle your
tilling con di tions (See “TINE ARRANGEMENT” in the
Service and Adjustments section of this manual.)
TINE OPERATION
• Check tine operation before first use. (See “TINE
OPERATION CHECK” in the Service and Adjustments
section of this manual.)
INSTALL DEPTH STAKE AS SEM BLY
(See Fig. 3)
• Loosen nut “A”.
• Insert stake support between engine brack et halves
with stake spring down.
• Bolt stake support to engine brackets with bolts, lock
washers and nuts. Tight en se curely. Tighten nut “A”.
• Depth stake must move freely. If it does not, loosen
support bolt.
TILLER
HANDLES
020
51
CABLE(S)
&4(ANDLEª0ANEL?
FLAT
WASHER
HEX BOLT
5/16-18X1"
TILLER
HANDLE
HAN DLE
PANEL
NUT
LOCK
WASH ER
HEX BOLT
5/16-18X1-1/4"
HANDLE
PANEL
BOLTS
