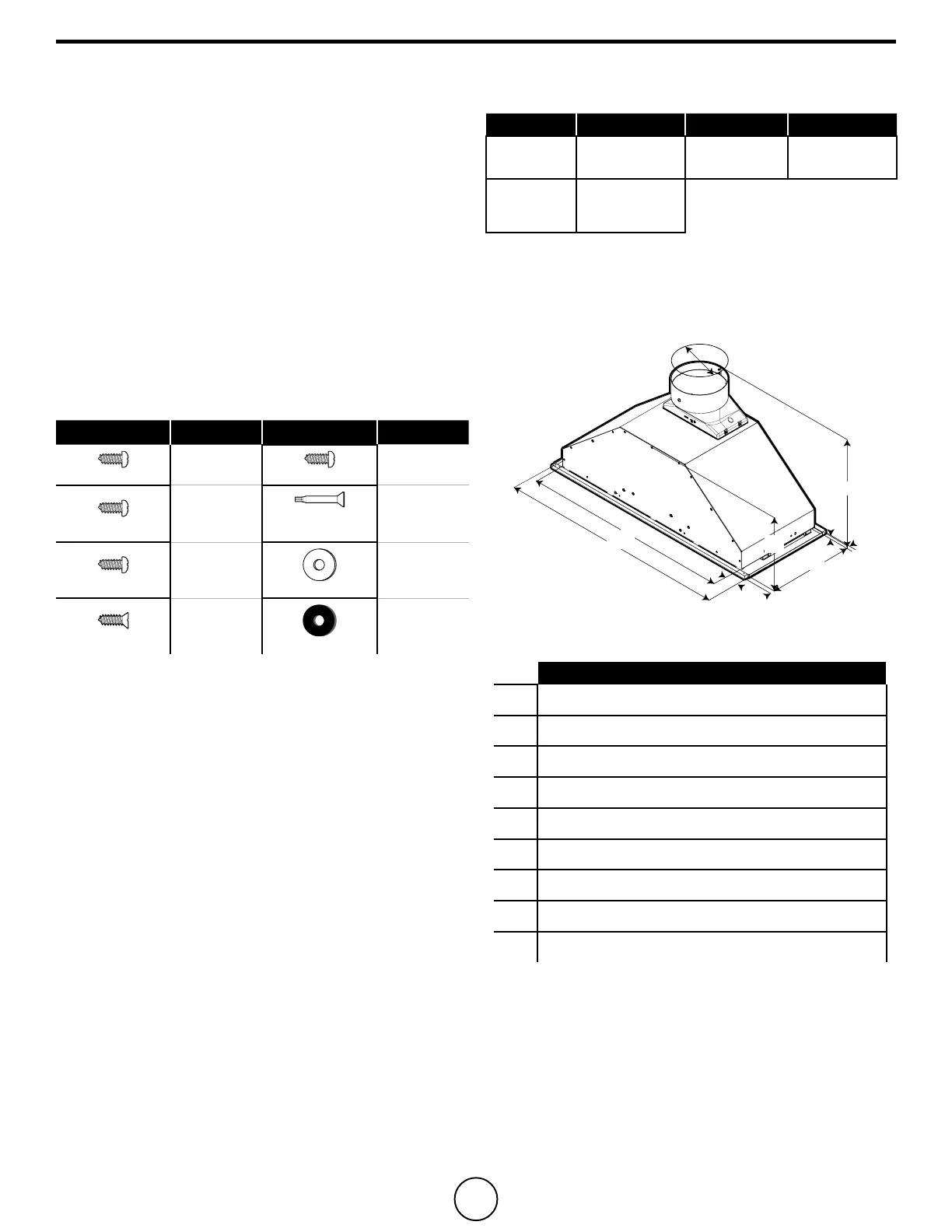

Tools and Parts
Parts supplied
Removing the packaging
CAUTION!
Remove carton carefully, wear gloves to protect against sharp
edges.
WARNING!
Remove the protective lm covering the product before putting
into operation.
• 1 - 30” x 12” (76.2 x 30.5 cm) face panel with LED lights
already installed.
• 6” (15.2 cm) round air transition.
• 2 - Aluminum mesh lter.
• 2 - Mounting brackets.
• 2 - Metal spacers (for use when cabinet depth is greater than
12”)
• Hardware package with:
Part Qty Part Qty
4.2 x 15 mm
2
4.2 x 19 mm
8
4.5 x 13 mm
8
Torx 10 adapter
1
3.5 x 9.5 mm
6
Ø 6.4x18 mm washers
8
3.5 x 9.5 mm
4
Ø 4.2x12 mm washers
8
Tools/Materials required
• Level
• Drill with 1¼” (3.2 cm),1⁄8” (3.2 mm), and 1⁄16” (4,8 mm) drill
bits
• Pencil
• Wire stripper or utility knife
• Tape measure or ruler
• Pliers
• Caulking gun and weatherproof caulking compound
• Vent clamps
• Jigsaw or keyhole saw
• Metal snips
• Screwdriver:
- Phillips
- Flat-blade
Parts needed
• 1 wall or roof cap
• Metal vent system
Parts not supplied
Optional Accessories
Kit # Part Kit # Part
Stainless
Hood liner
30” KIT02773
36” KIT02774
Recirculating KIT02770
CFM
Reduction
Kit
KIT02748
Dimensions and
Clearances
C
D
F
G
H
I*
I*
I* - Metallic spacers
Spacers has to be installed
and used when cabinet depth
is greater than 12”.
A
B
E
AAR428SSB / AGR628SSB
A
28
1
⁄4” (71.8 cm)
B
26” (66 cm)
C
1
1
⁄8” (2.9 cm)
D
10¾” (27.3 cm)
E
9½” (24.2 cm)
F
5
⁄16” (.85 cm)
G
14
9
⁄16” (37 cm)
H
6” (15.2 cm)
I
½” (1.27 cm)
