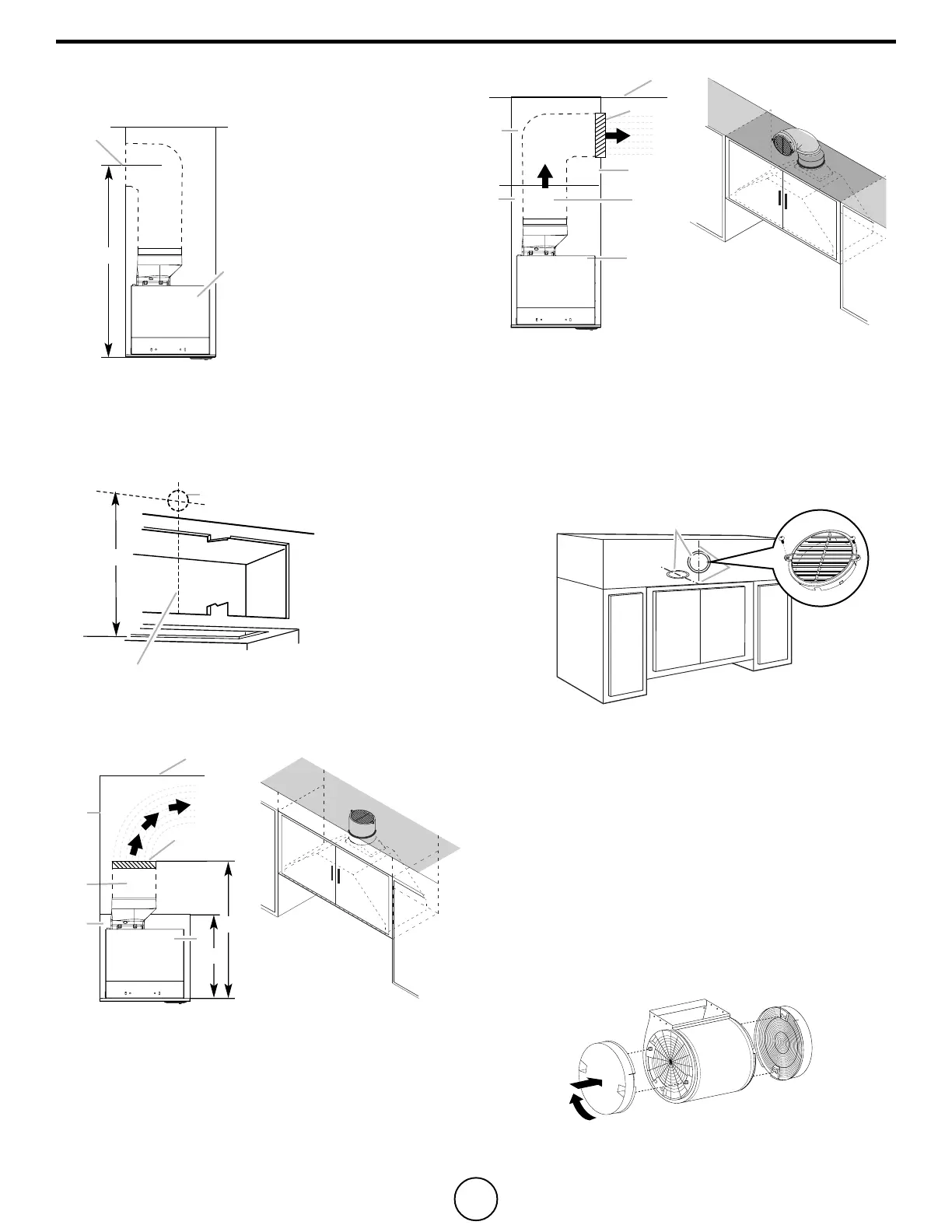

Venting Outside Through the Wall
1. Measure from the bottom of the range hood liner to the
horizontal centerline of the vent opening (A)
A
B
C
A. Measurement A
B. Horizontal centerline of vent opening
C. Range hood liner
2. Remove the vent duct from the range hood liner. Transfer
measurement A to the cabinet back wall. Measure from the
underside of the cabinet.
3. Mark the cutout as shown. Use a saber saw or keyhole saw
to cut a round opening through the top of the cabinet and the
exterior wall for the vent.
B
C
A
A. Measurement A
B. Centerline
C. 6¼” (15.9 cm) round
cutout
Non-Vented (recirculating) Installation through the
Cabinet / Soft
Recirculating through
the cabinet top wall
E
A
B
G
D
F
H
I
A. Ceiling
B. Recirculating grid
C. Soft
D. 6” round vent system
E. Range hood
F. Cabinet
G.Wall
H. 12” (30.5 cm) min. cabinet height
I. 17” (43.2 cm) min. vent cover height
Recirculating through the soft
A
B
G
F
C
D
E
A. Ceiling
B. Recirculating grid
C. Soft
D. 6” round vent system
E. Range hood
F. Cabinet
G.Wall
1. Measure and mark the centerline of the cabinet to the soft
above.
2. Measure from the bottom of the cabinet to the centerline of
the where the vent will come through the soft or cabinet top
wall. Mark the location and use a saber saw or keyhole saw to
cut a 5¾” (14.6 cm) hole for the vent cover.
A
B
A. Vent cover
B. Centerline
*NOTE: For 12” (30.5 cm) high cabinets a 6¼” deep x 8” wide
(14.6 cm x 20.3 cm) rectangular opening in the cabinet top is
required for damper transition clearance.
3. Consider the cutout chart measures to make the openings
on the cabinet. NOTE: 12” (30.5 cm) high cabinets without a
soft may allow the 6” vent and vent cover to be seen.
4. Cover the grill that protects the suction motor with the carbon
lter so that the slots on the lter correspond to the pins on
the sides of the motor protection grill.
5. Turn the carbon lter clockwise to block them (bayonet xing).
NOTE: The charcoal lters cannot be cleaned. It should be
replaced every 4-6 months (depending on hood usage).
You must cut the cable tie attached to the blower to make a
proper installation.
