C-200 is a dual-radio 802.11ax access point.
This chapter provides an overview of the C-200 access point (AP) and describes:
• Front Panel.
• Rear Panel.
3.1 Front Panel
The front panel of the C-200 has four LEDs that indicate the status of various device functions.

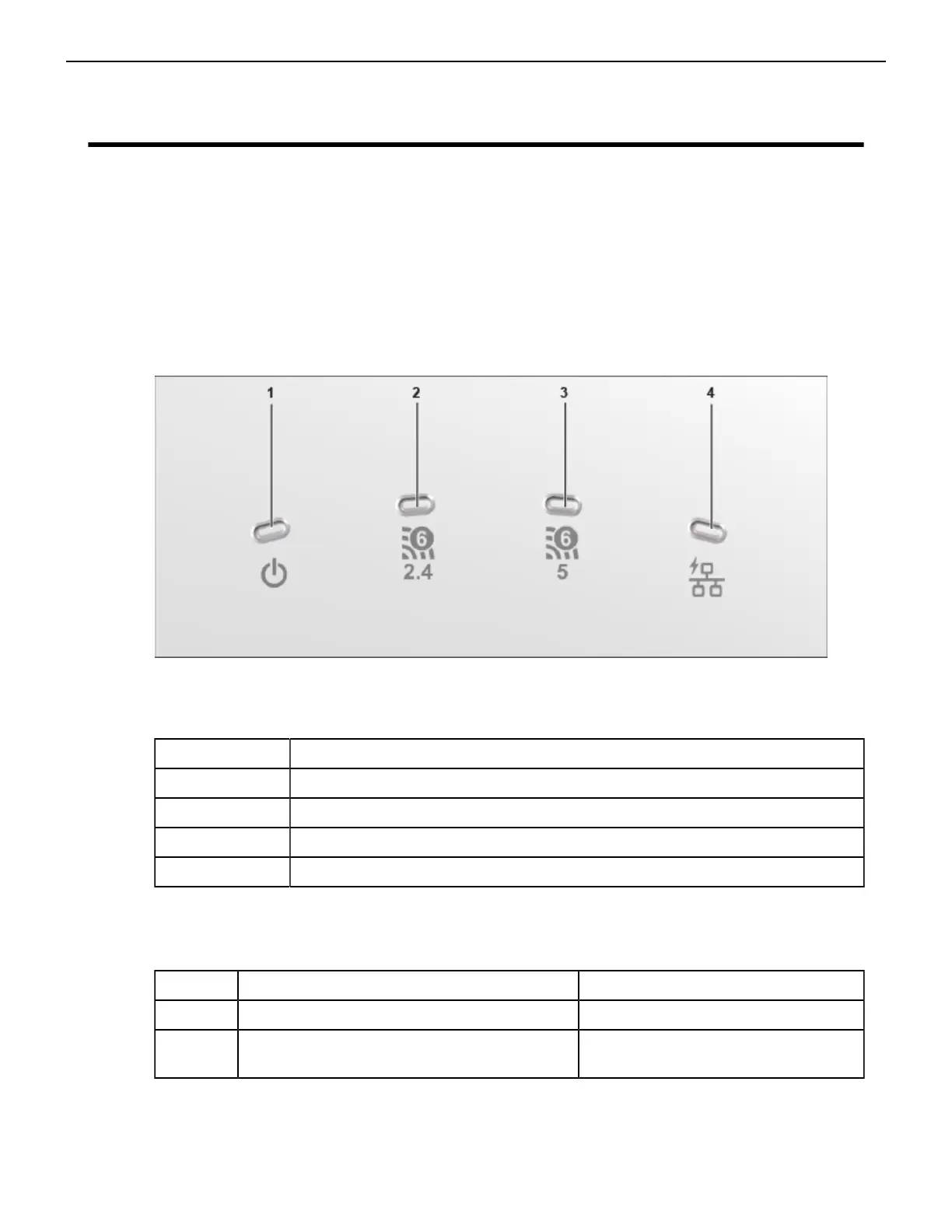

Figure 2: Front Panel LEDs
Table 2: Labels: Front Panel LEDs
Label Description
1 Power
2 2.4 GHz Radio
3 5 GHz Radio
4 LAN1
Power LED: The following table describes the Power LED states.
Table 3: Power LED States Description
Green Orange
Solid Running normally NA
Blinking Received IP address, but not connected to the
server
Did not receive an IP address
LAN1 LED: ON when the corresponding interface is up.
Radio LEDs: ON when the corresponding radio is operational.
