Ariston 100 L Technical Manual

14

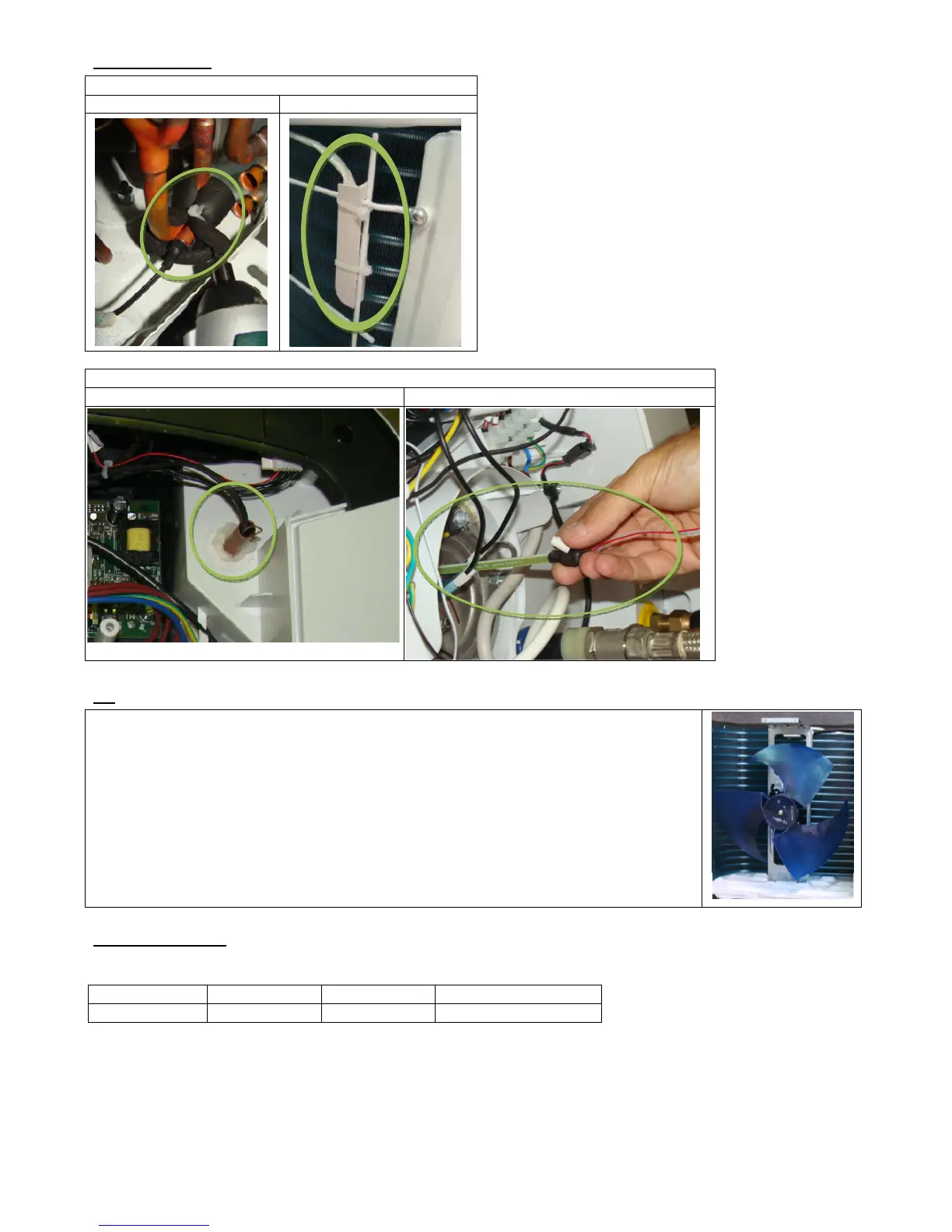

Sensors positioning
External unit
Evaporator sensor Air sensor
Internal unit
Hot water sensor Heating element zone sensors
Fan
- 220-240 V
- 50 Hz
- 10 W
- 500 rpm
- B Class
- IP44
- 3 blades
- AC
The centrifugal fan is on/off type, 1100 m³/h.
Fan start-up capacitor
The march capacitor has the purpose to start the fan.
Capacity (μF) Tension (V) Freq (Hz) Terminals
1,0 ± 5% 450 50/60 Faston 6.3mm

Ariston 100 L Specifications

General

Power Source	Electric
Pressure Rating	8 bar
Capacity	100 L
Type	Storage Water Heater
Thermostat	Adjustable
Temperature Range	Up to 75°C
Insulation	Polyurethane Foam
Warranty	2 years
Dimensions	Varies by model (approx. 913mm x 450mm x 480mm)
Weight	Varies by model (approx. 27 kg)
