Ariston 100 L Technical Manual

5

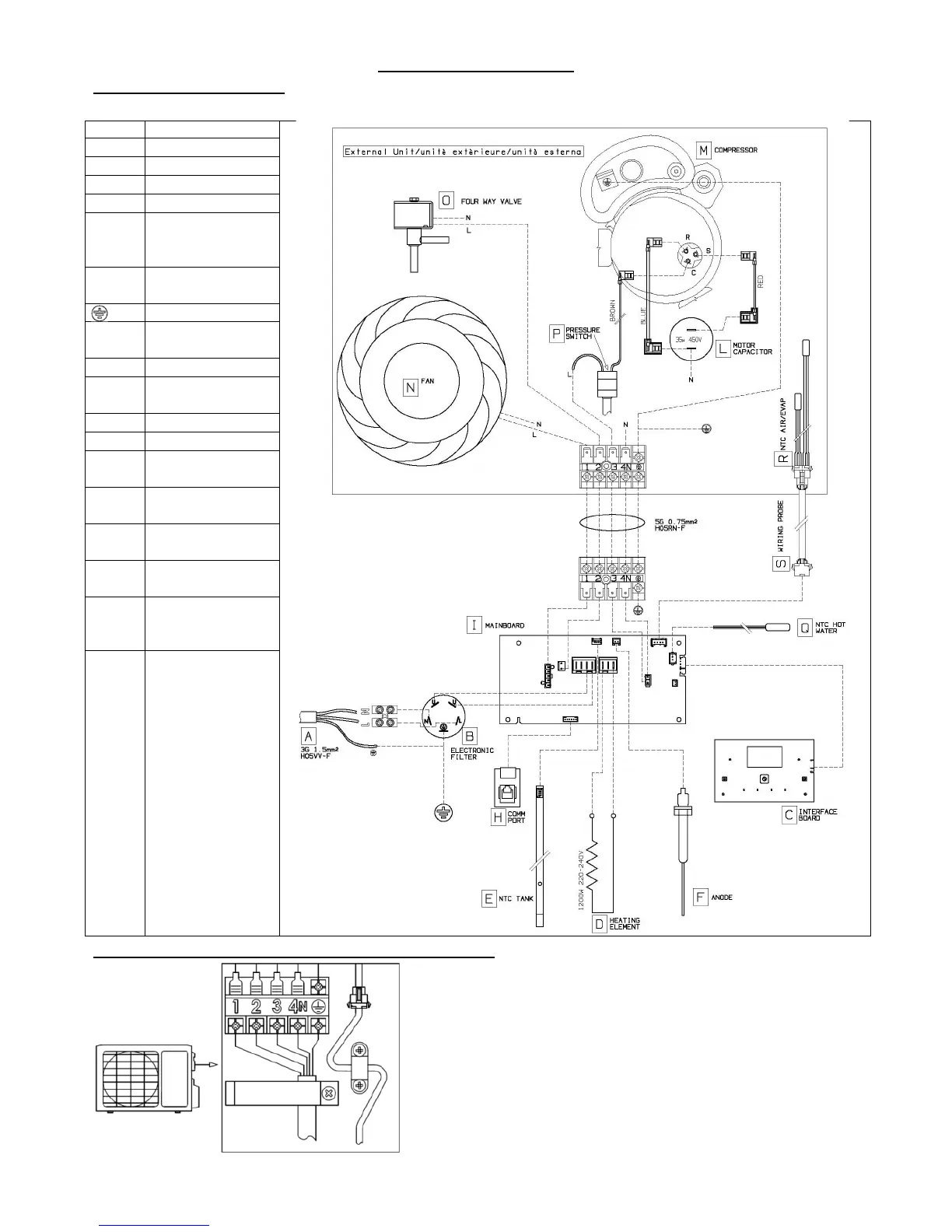

ELECTRICAL CONNECTIONS
General electrical diagram
External unit (Heat Pump) electrical connections
SYMBOL DESCRIPTION
A Power supply
B Electronic filter
C Interface board
D Heating element
E NTC sensor for
heating element
zone
F Impressed current
anode
Ground connection
H Serial connection
board
I Mainboard
L Operation
condenser
M Compressor
N Fan
O Defrost four ways
valve
P Safety pressure
switch
Q hot water NTC
sensor
R evaporator and inlet
air NTC sensor
S Sensor connection
cable, supplied with
the product

Ariston 100 L Specifications

General

Power Source	Electric
Pressure Rating	8 bar
Capacity	100 L
Type	Storage Water Heater
Thermostat	Adjustable
Temperature Range	Up to 75°C
Insulation	Polyurethane Foam
Warranty	2 years
Dimensions	Varies by model (approx. 913mm x 450mm x 480mm)
Weight	Varies by model (approx. 27 kg)
