Ariston Classico HE STD 150 Instructions For Installation, Servicing And Use

20
L1
L2
L3
Live Supply from common fused spur
Neutral
Switched Live
2
3 4
5
6
Terminals
Neutrals to be connected using amp tag connectors
Live wires supplied in kit
Earths omitted for clarity

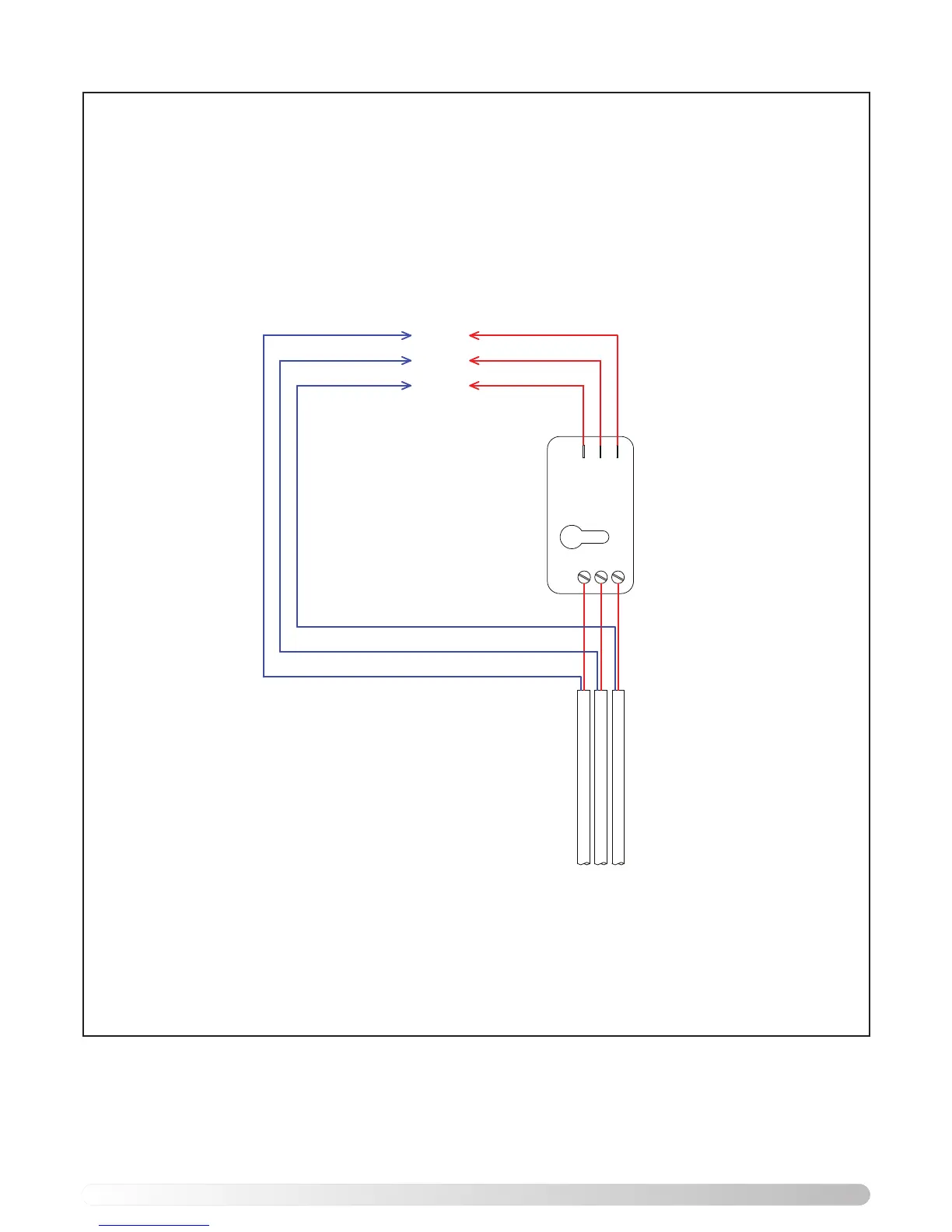

SINGLE PHASE WIRING INSTRUCTIONS FOR
6KW IMMERSION HEATER
1

IMpORTANT: WHEN WIRING THE 500 LITRE CYLINDERS IMMERSION HEATER ENSURE THAT A
SUITABLE HEAT RESISTANT CABLE RATED ABOVE THE PROTECTIVE DEVICE IS USED (I.E.
6MM FOR 32AMP).

Ariston Classico HE STD 150 Specifications

General

Brand	Ariston
Model	Classico HE STD 150
Category	Water Heater
Language	English
