21
!&)& $$% &! & #'$(! &%@+ $%
!$ !$ & )$ %&$'&! % "% ! &&
& & "$& & !
NOTE: Enable Parameter 223
and change from 0 to 1
GENUS Range program time
zones 1 & 2 on digital display
CLAS HE both zones timed
from integral timer

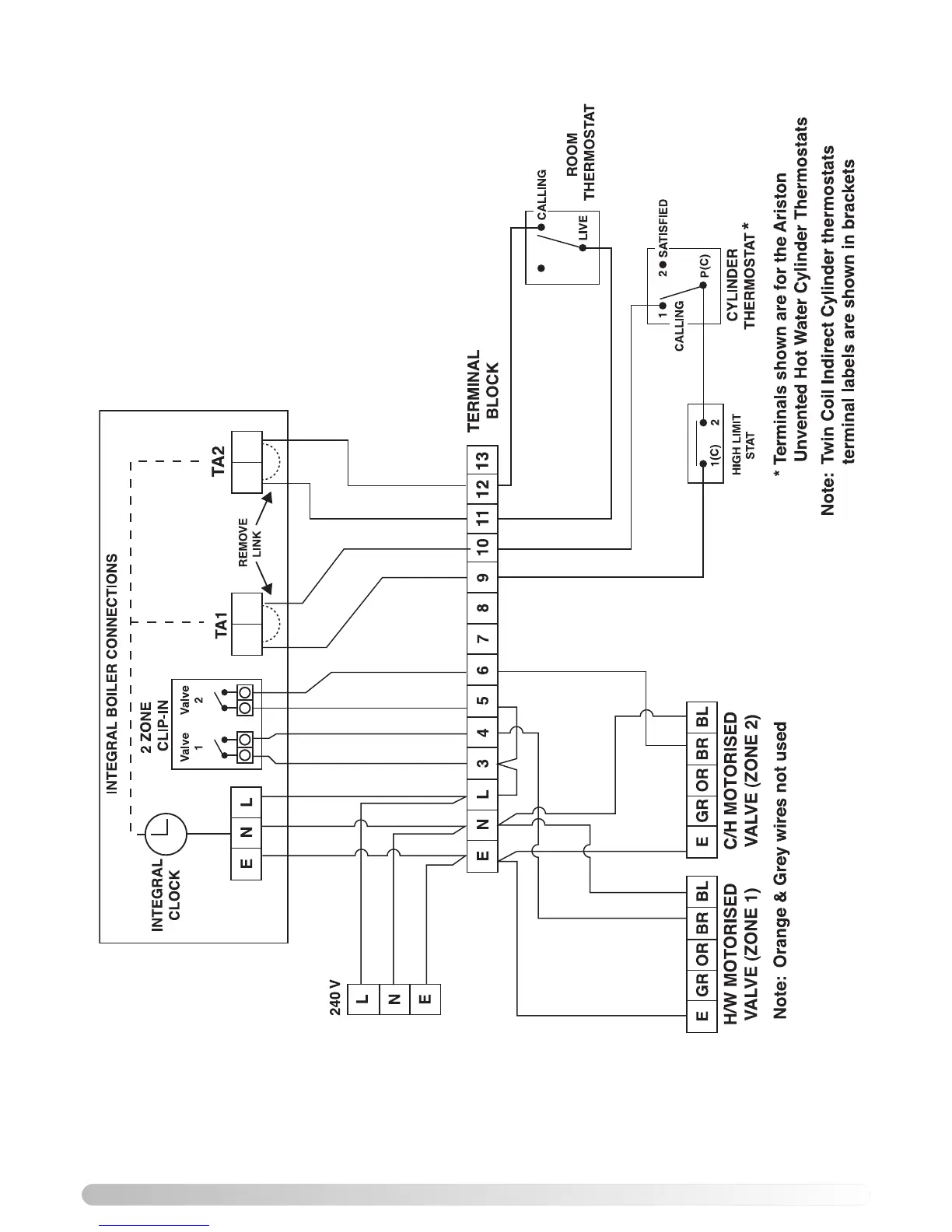

Wiring diagram for two 2 Port Valves with Ariston GENUS HE, CLAS HE
and CLAS boilers with 2 zone clip in fitted.
