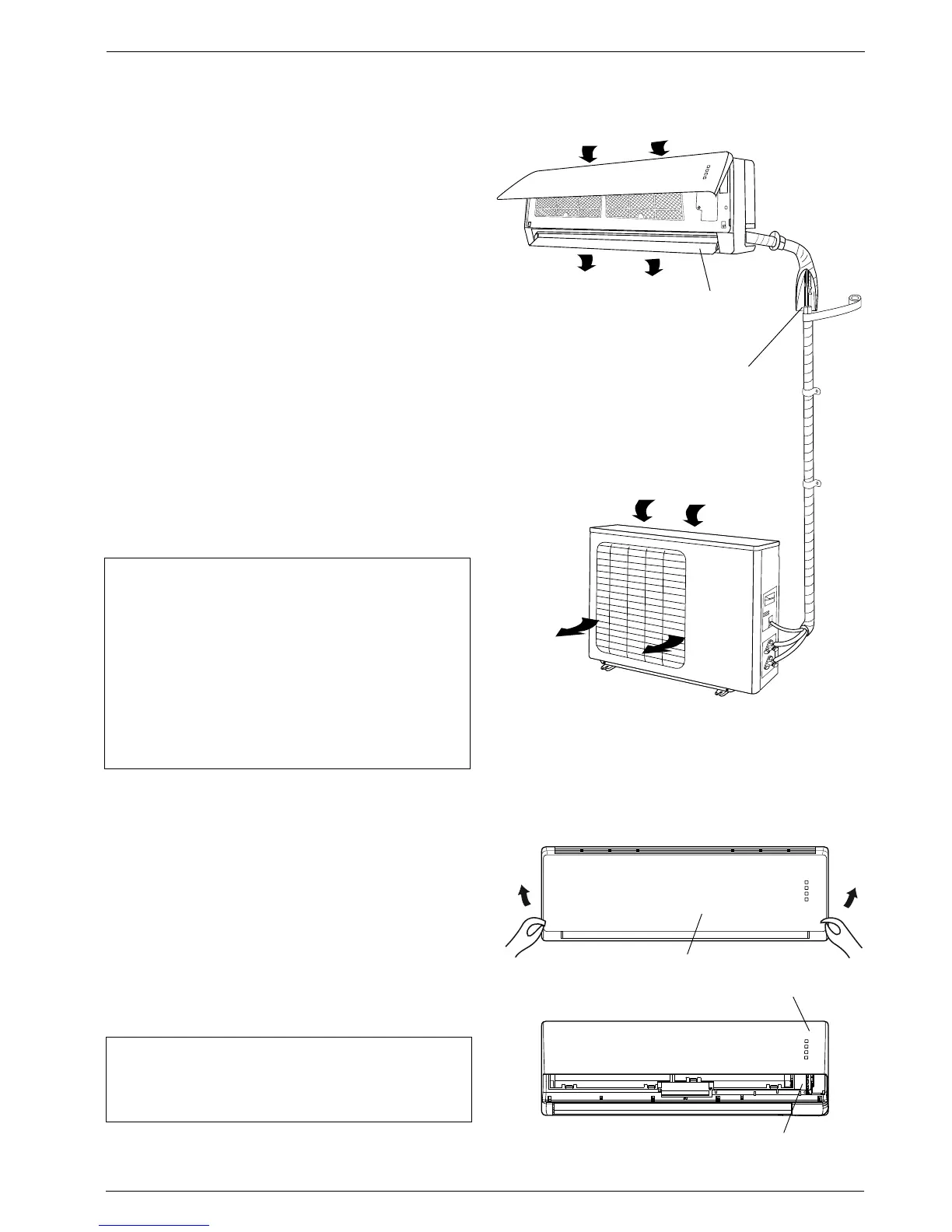

WALL-HUNG MODEL
The air conditioning unit is made up of two separate units
linked up to one another by copper piping (suitably insu-
lated) and
a power supply cable.
The Internal Unit should be installed on a wall of the room
to be air conditioned. The External Unit can be free stand-
ing on the fl oor or installed on a wall, on special support-
ing brackets.
Operating suggestions:
- For the air conditioning unit to work at its best, make
sure it is suitably sized for your specifi c air conditioning
requirements. (Risk of poor appliance performance).
- Do not obstruct the air inlet and outlet grilles with any
objects. (Risk of the appliance overheating).
- If the appliance is left unused for an extended period
of time, disconnect the power supply cable from the
mains as the appliance would otherwise remain pow-
ered. (Risk of personal injury from fi re and fumes).
- For optimal appliance effi ciency, maintain the room
temperature constant through the swing function,
close doors and windows, clean the fi lters regularly
- Do not excessively cool the room to avoid sudden tem-
perature changes
WARNING:
- Do not start or stop the appliance by simply plugging
it into or out of the electricity mains (risk of personal
injury due to electrocution).
- Do not climb onto the internal or external unit and
do not place any objects on them at all (risk of per-
sonal injury and damage to any objects that fall from
a height).
- Do not expose yourself to the direct air fl ow for a
prolonged period of time (risk of personal injury
from skin sensitisation).
INTERNAL UNIT PANEL
“ON/OFF” BUTTON
by pressing this button, the unit switches on/off.
If the air conditioning unit is connected to the power sup-
ply for the fi rst time, the operating mode is AUTO. If the air
conditioning unit is on stand-by, the operating mode is the
last one set (mode, fan speed, temperature).
By pressing the on/off button for 5 seconds the air condi-
tioning unit enters the forced cooling mode (used exclu-
sively by the installer during testing).
WARNING:
- Do not use the switch with wet hands
(risk of personal injury from electrocution).
INTERNAL UNIT
AIR INLET GRILLE
AIR INLET
AIR OUTLET
PANEL
ON/OFF BUTTON
LED
AIR OUTLET
DIRECTIONAL
FLAP
PIPING AND ELEC-
TRICAL CABLES
EXTERNAL UNIT
