40 /GB

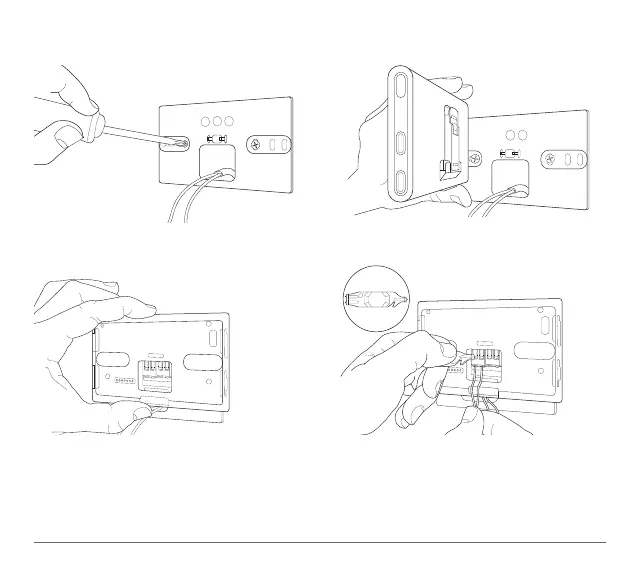

4.2 Installation of gateway to wall
1
2
3
4
Screw the support plate into the wall
using the supplied screws
Fix the gateway temporarily to the
plate using the hooks
Connect the pair of cables from the BridgeNet
BUS connector on the boiler PCB to the
BridgeNet BUS connector on the gateway
(respecting pole B with B and pole T with T)*.
Use the included tool to press the tabs lightly.
Rotate the gateway
