Ariston VLS EVO 80 User Manual

12 / EN
L
Safety relay 1
A]ΧAŪOdcc^]
FR\_RaMcdaR2QXdbc\R]c
FR\_RaMcdaRHWbdMZWjMcW^]
?M]dMZDRbRc
7d]PcW^]MZaRZMh
Heating element
User Interface
Sensor
NTC 1
CPU
NTC 2
Safety relay 2
N
E
127-240 Vac
Input
NTC 3
NTC 4
R1
R2
7d]PcW^]MZaRZMh
L
Safety relay 1
A]ΧAŪOdcc^]
FR\_RaMcdaR2QXdbc\R]c
FR\_RaMcdaRHWbdMZWjMcW^]
?M]dMZDRbRc
7d]PcW^]MZaRZMh
Heating element
User Interface
Sensor
NTC 1
CPU
NTC 2
Safety relay 2
N
E
127-240 Vac
Input
NTC 3
NTC 4
IW7W
MODULE
R1
R2
7d]PcW^]MZaRZMh

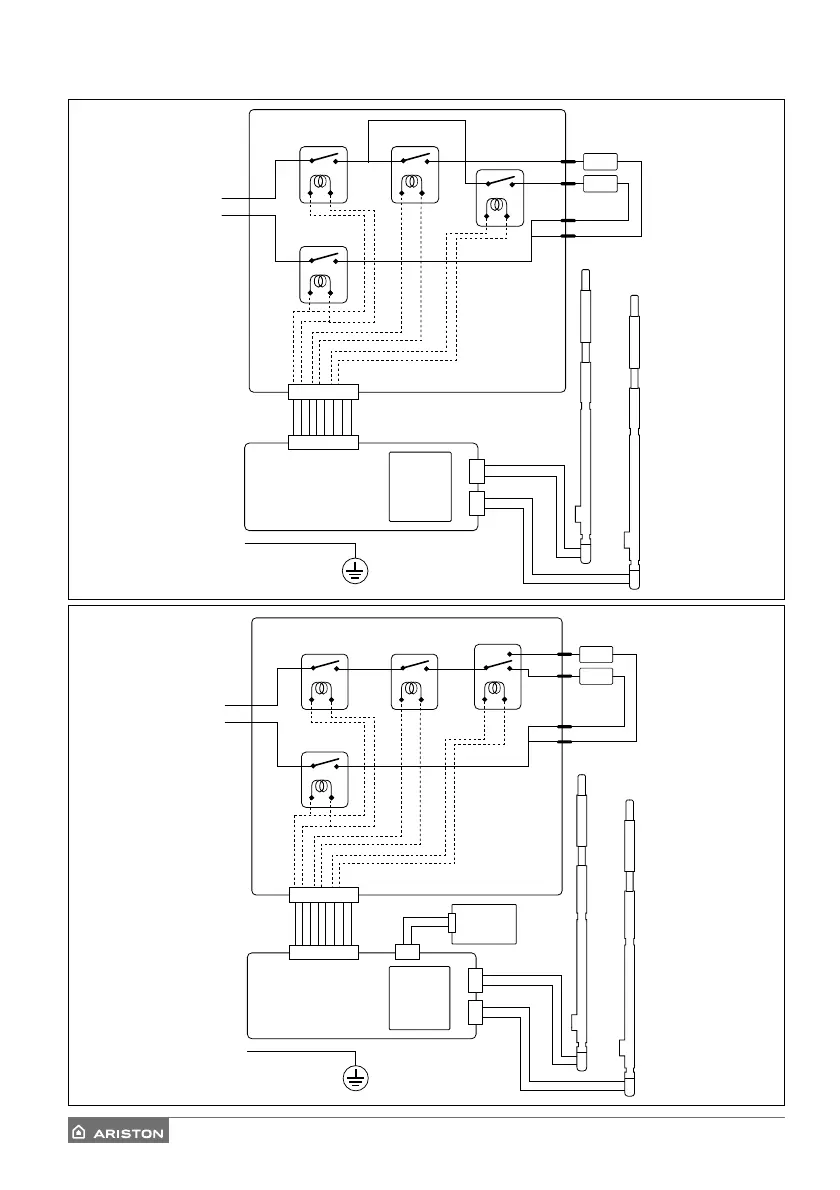

Fig. 2 - Wiring diagram
VELIS EVO
VELIS EVO WiFi

Ariston VLS EVO 80 Specifications

General

Capacity	80 liters
Voltage	230 V
Energy Efficiency	Class B
Maximum Working Pressure	8 bar
Maximum Working Temperature	80°C
Frequency	50 Hz
Thermostat	Electronic
Power	1500 W
Installation	Vertical or Horizontal
Warranty	2 years
