Q+=9-/)/*
QH[IKNLY Do not mount to brick or cinder block wall.
Minimum 8 inch thick solid concrete is required.

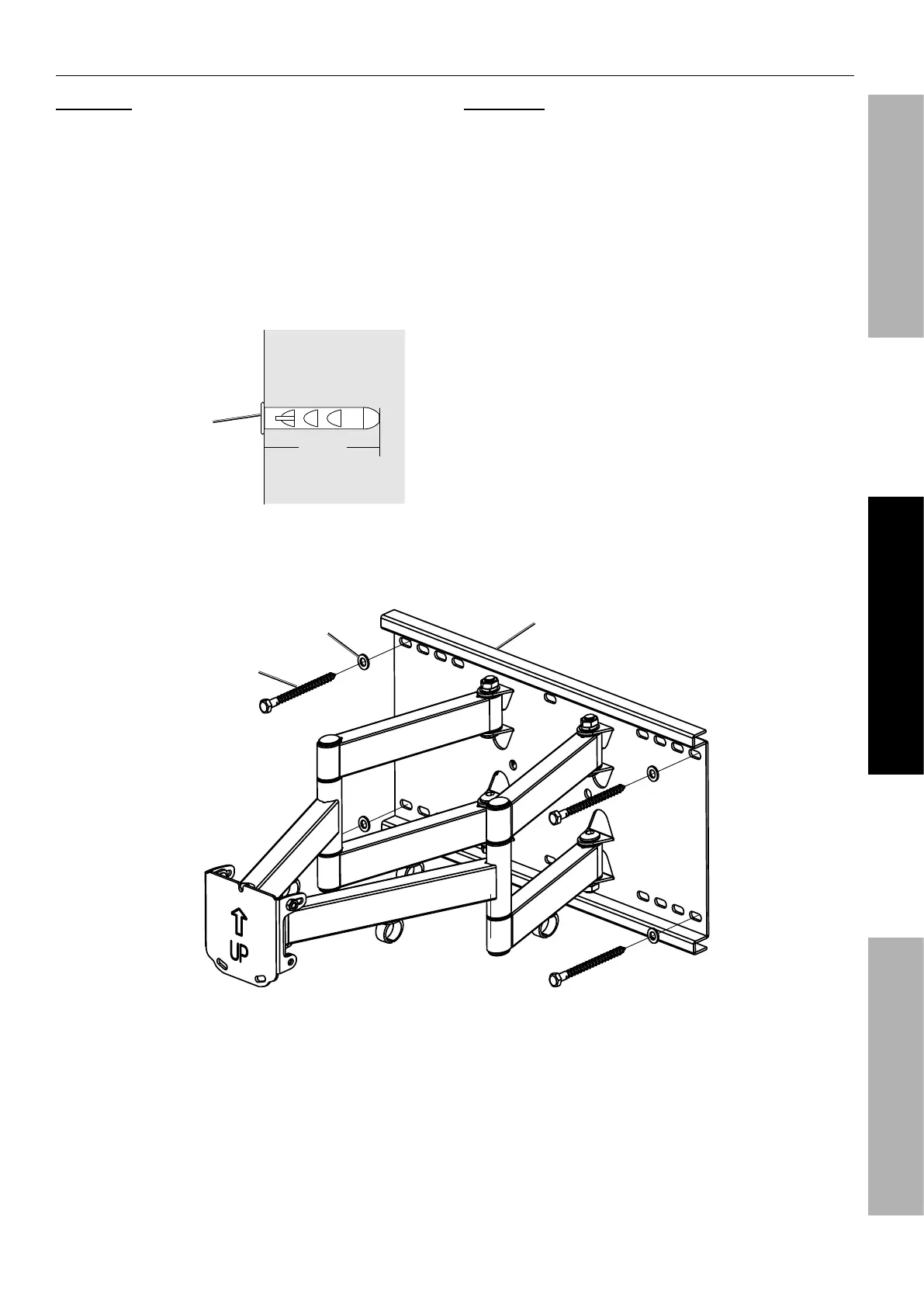

1. Set Wall Mount (1) against wall at desired height.
Place a level (sold separately) on top of Wall Mount,
adjust until level. Mark locations of mounting holes.
2. Using a 3/8″ carbide tip masonry bit, drill four
holes 3-1/2″ deep at marked locations.
3. Insert Concrete Wall Anchors (18) into holes,
making sure they are flush with wall surface.
Q+=9-/)/
Q+=9-/)/*R1<<*
H=93+-*]CE^
#DC5_″
RHPLKLSY**Concrete*Wall Anchors
must be set firmly into concrete.
4. Use four Wall Lag Bolts (17) and
Wall Washers (19) to mount Wall Mount to wall.
R1<<*M18*
U+<)*]C%^
R1<<*R1(3/-*
]CF^
R1<<*
T+,=)*]C^
