3 AS-2715
REV 1 05/13/2014
AS-2715
ARNOTT PASSIVE
REAR AIR SHOCK
FOR 2000-2013 VARIOUS GM SUVs

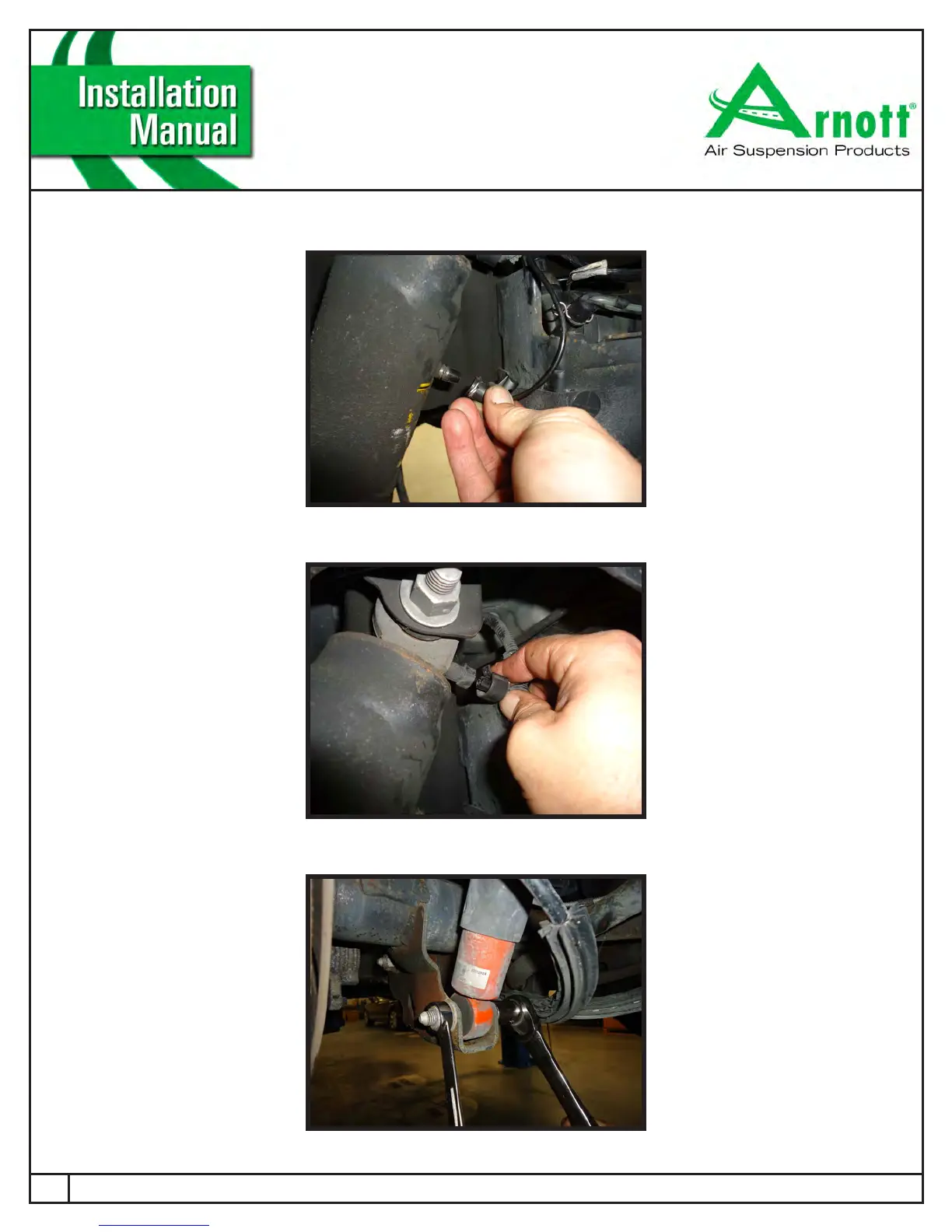

3. LOCATE AND REMOVE THE AIR LINE TO DEFLATE THE AIR SHOCK. TURN THE METAL CLIP APPROX. 90°
TO REMOVE THE AIR LINE FITTING FROM THE AIR SHOCK. (FIGURE 2)
4. LOCATE AND REMOVE THE ELECTRICAL CONNECTOR FROM THE TOP OF THE AIR SHOCK. (FIGURE 3)
FIGURE 2
FIGURE 3
FIGURE 4
5. LOOSEN AND REMOVE THE UPPER AND LOWER SHOCK MOUNTING NUTS. (FIGURE 4)
