4 AS-2715
REV 1 05/13/2014
AS-2715
ARNOTT PASSIVE
REAR AIR SHOCK
FOR 2000-2013 VARIOUS GM SUVs

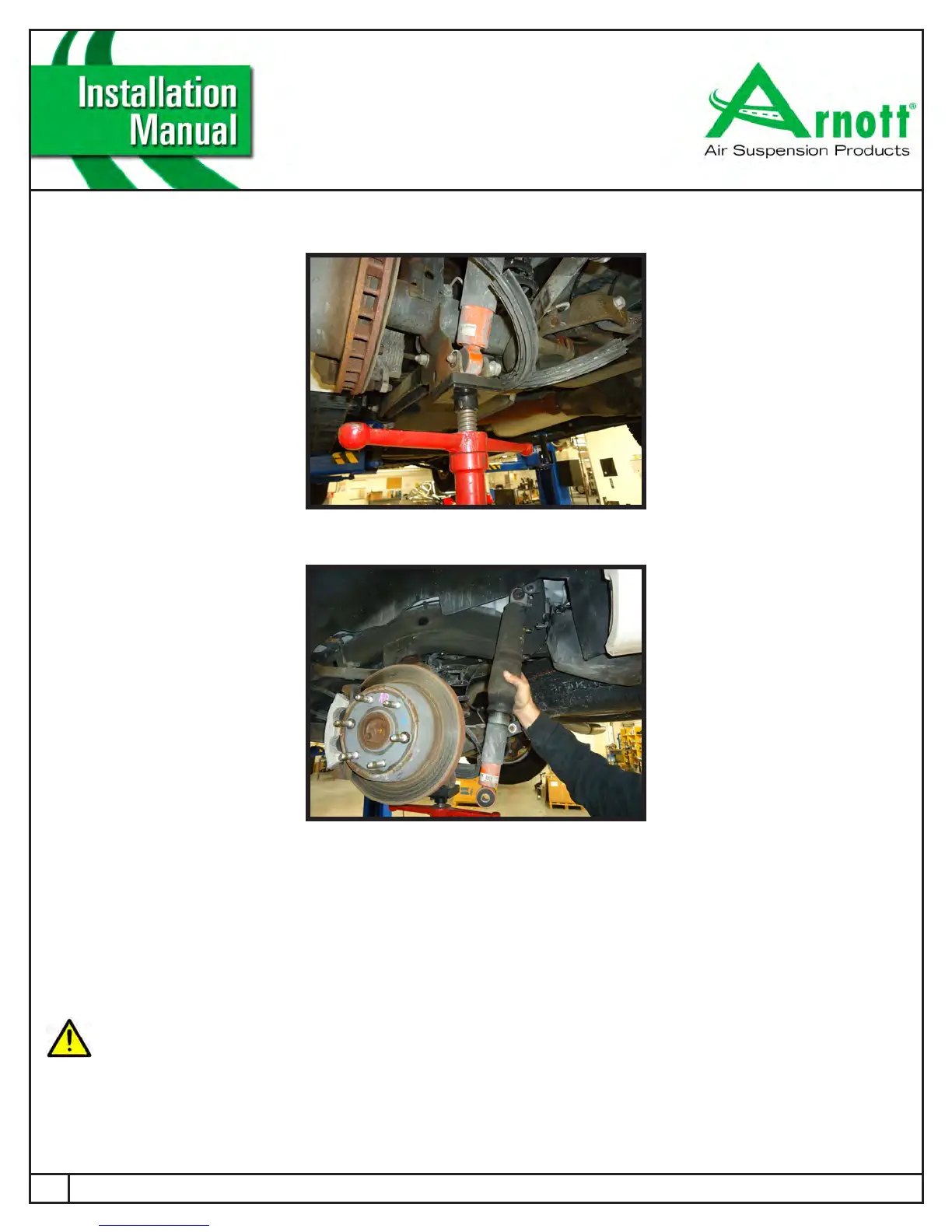

FIGURE 5
6. SUPPORT THE AXLE TO RELIEVE PRESSURE FROM THE AIR SHOCK'S MOUNTING POINTS. REMOVE
THE UPPER AND LOWER AIR SHOCK MOUNTING BOLTS. (FIGURE 5)
FIGURE 6
7. REMOVE THE AIR SHOCK FROM THE VEHICLE. (FIGURE 6)
8. REMOVAL COMPLETE.
AIR SHOCK INSTALLATION
1. INSTALL THE SHOCK ABSORBER’S RETAINING NUTS AND BOLTS TO THE REAL AXLE.
2. ATTACH DAMPENING SENSOR LEAD AND SECURE IN A SUITABLE LOCATION USING SUPPLIED
CABLE TIES.
Tighten all nuts and bolts to manufacturer's specications during the installation process.
