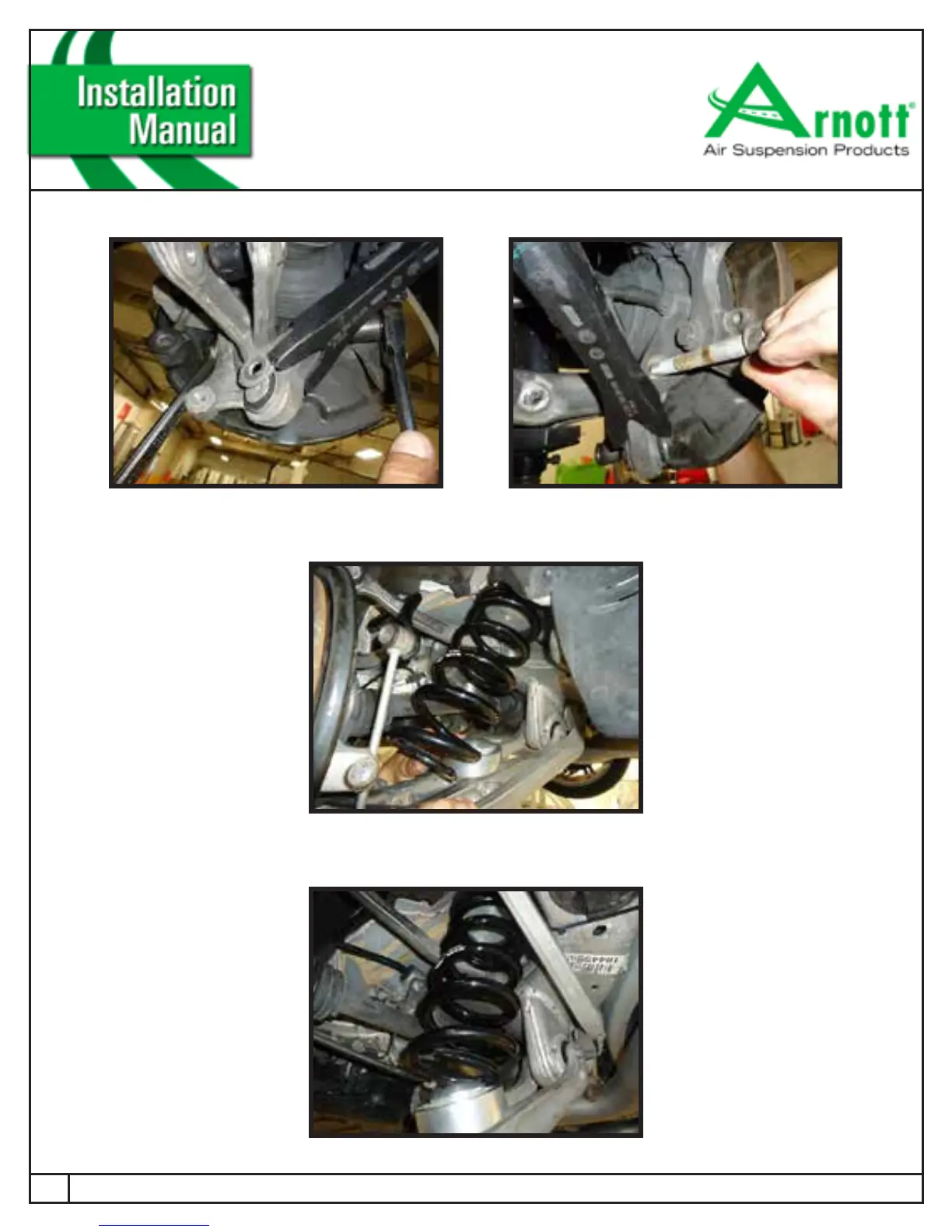

ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS
FIGURE 40-10
FIGURE 40-11
11. PULL DOWN ON LOWER CONTROL ARM AND INSTALL SPRING INTO THE TOP SPRING PERCH. (FIGURE 40-11)
10. LOOSEN AND REMOVE LOWER CONTROL ARM BOLT. (FIGURE 40-10)
12. SLIDE SPRING OVER THE HUMP OF THE LOWER SRING PERCH. (FIGURE 40-12)
FIGURE 40-12
