23
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

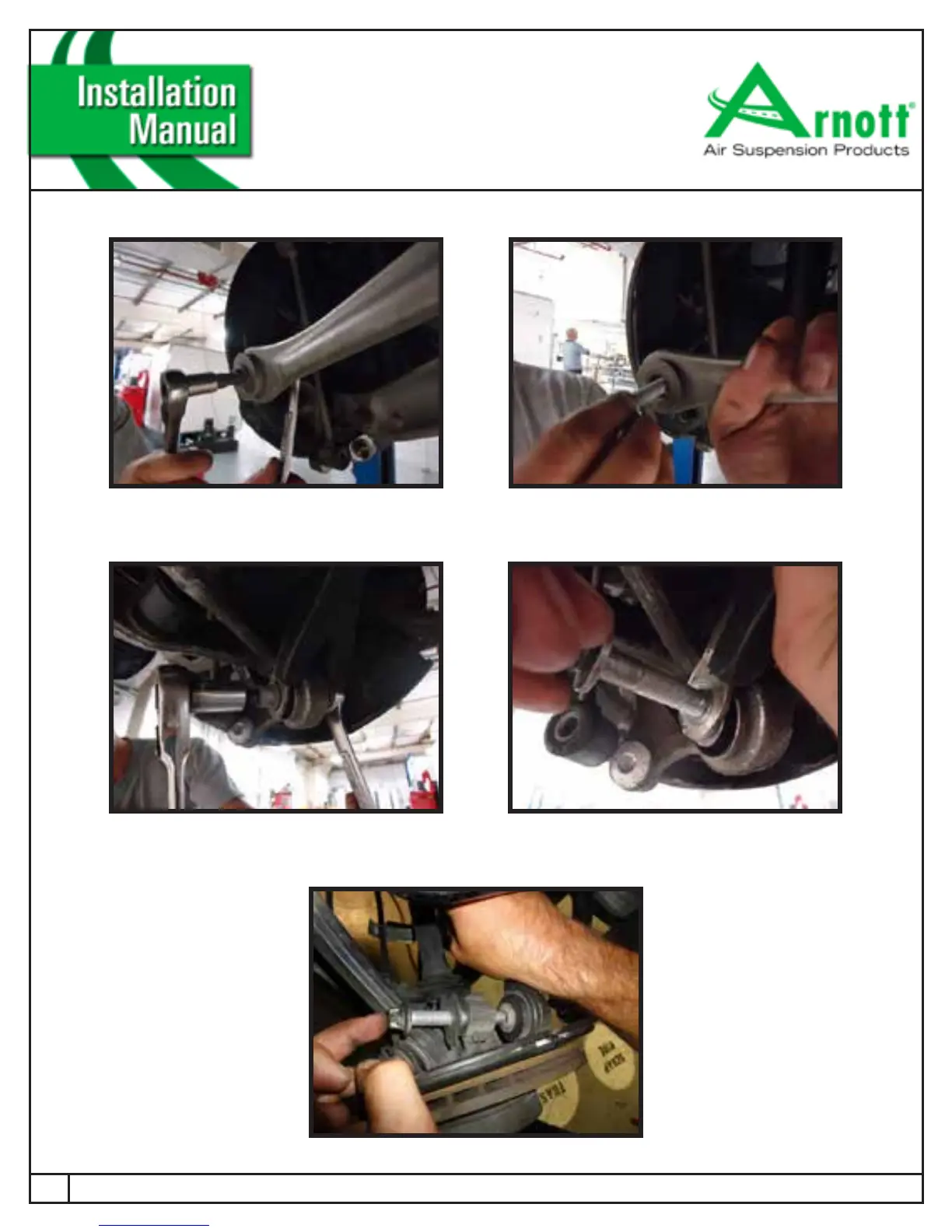

FIGURE 40-7
FIGURE 40-8
8. LOOSEN AND REMOVE FRONT TRAILING ARM BOLT. (FIGURE 40-8)
7. LOOSEN AND REMOVE REAR TRAILING ARM BOLT. (FIGURE 40-7)
9. LOOSEN AND REMOVE UPPER CONTROL ARM BOLT. (FIGURE 40-9)
FIGURE 40-9
