22
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

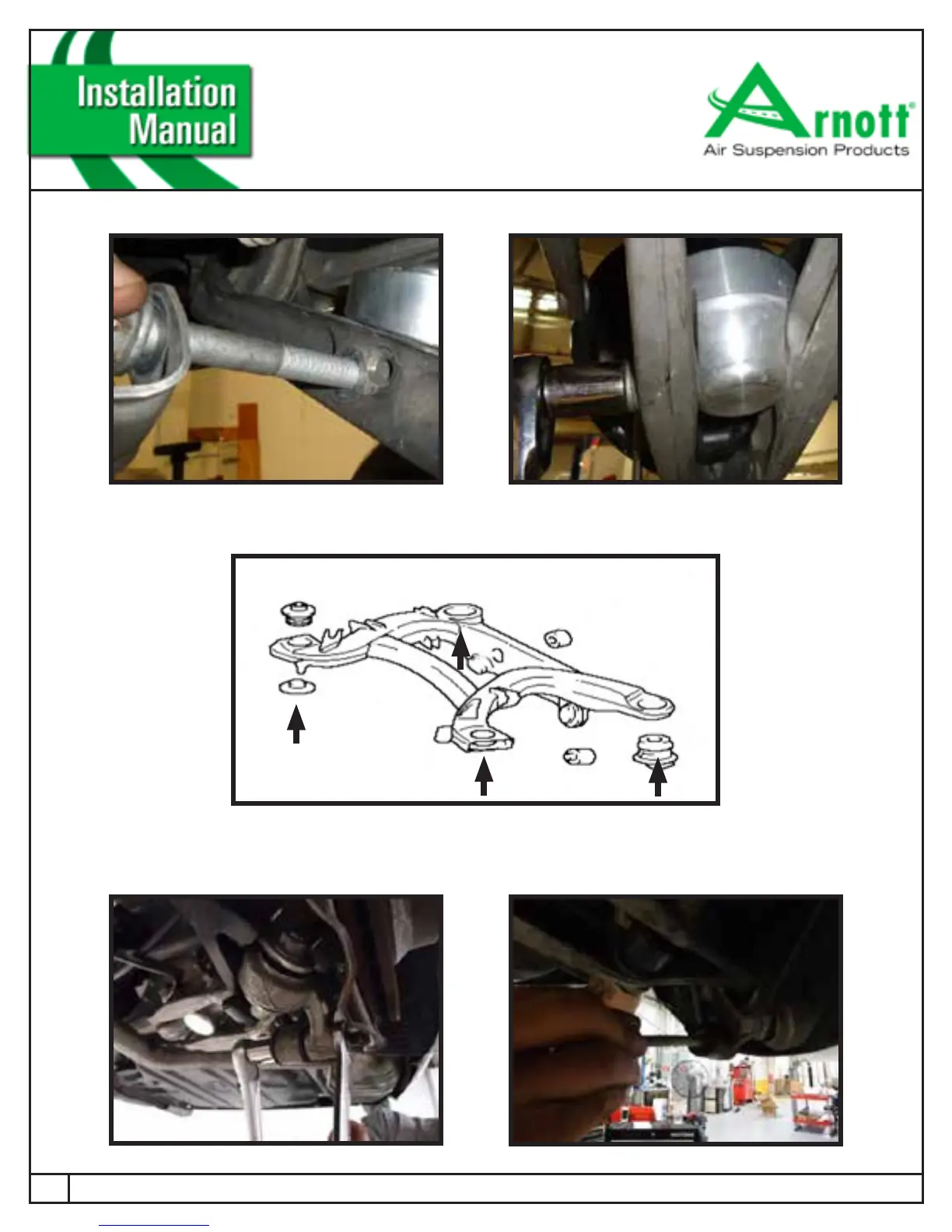

FIGURE 40-4
FIGURE 40-5
5. REINSTALL THE FOUR SUB FRAME BOLTS AND SECURE. (FIGURE 40-5)
4. INSTALL THE LOWER SPRING PERCHES INTO THE LOWER CONTROL ARMS, AND SECURE. (FIGURE 40-4)
6. WITH THE SUB FRAME MOUNTED BACK ONTO THE VEHICLE, REMOVE THE LOWER SWAY BAR END LINK
BOLT. (FIGURE 40-6)
FIGURE 40-6
