Arnott C-2278 - Rear Coil Spring and Shock Installation Procedure

21
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

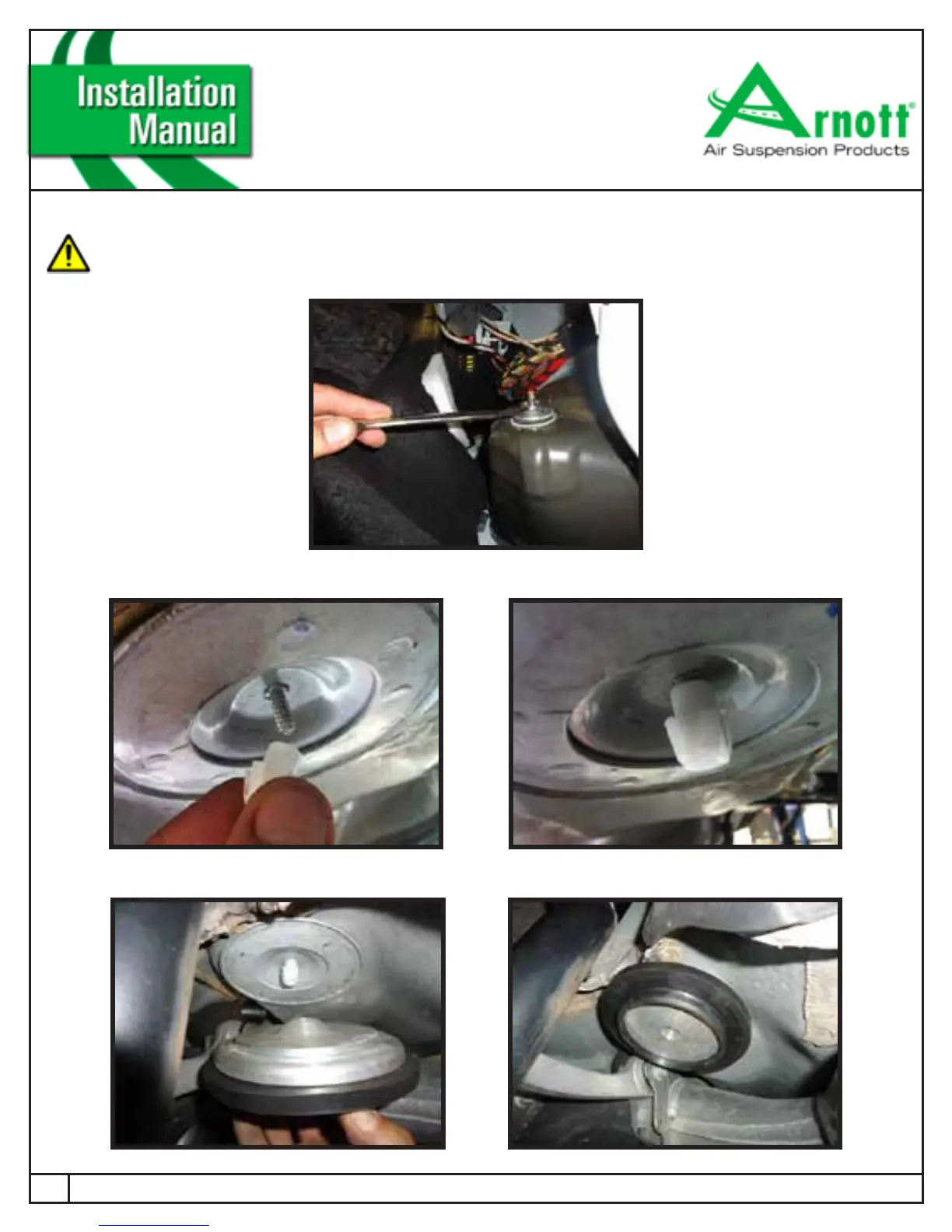

FIGURE 40-1
FIGURE 40-2
2. REMOVE OLD TOP MOUNT CLIPS AND REPLACE WITH THE ONES PROVIDED IN THE KIT. (FIGURE 40-2)
3. INSTALL THE UPPER SPRING PERCHES ONTO THE NEW CLIPS. (FIGURE 40-3)
FIGURE 40-3
REAR COIL SPRING AND SHOCK INSTALLATION
1. INSTALL THE NEW SHOCKS INTO THE TOP MOUNTS AND SECURE. (FIGURE 40-1)
Tighten all nuts and bolts to manufacturer's specications during the installation process.
