20
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

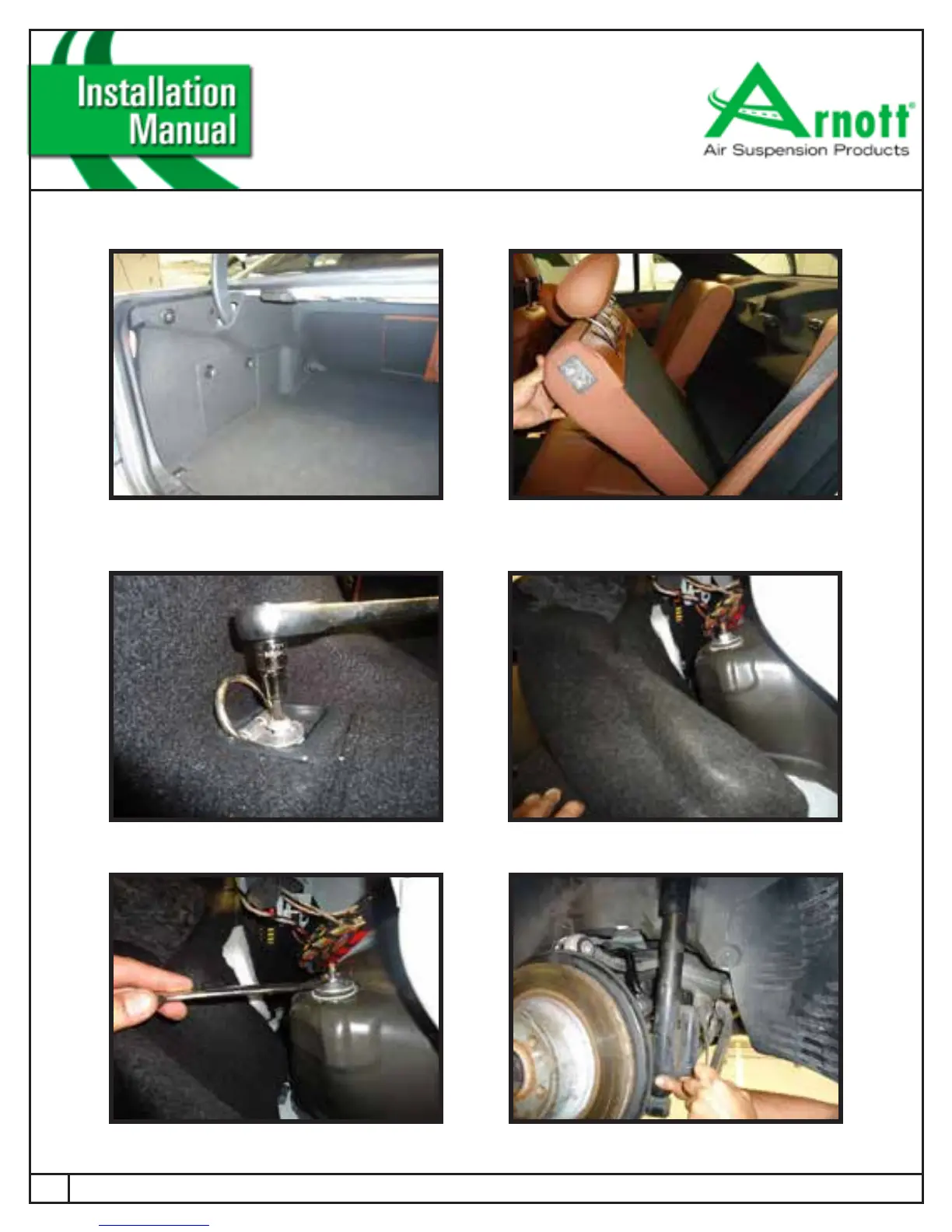

FIGURE 30-31
FIGURE 30-32
32. REMOVE THE D-RING TIE DOWN ON THE TRUNK FLOOR AND PULL BACK THE CARPET TO ACCESS THE REAR
TOP SHOCK MOUNT. (FIGURE 30-32)
31. TO REMOVE THE REAR SHOCKS, GAIN ACCESS TO THE TRUNK AND PULL HANDLES TO FOLD THE REAR
SEATS DOWN. (FIGURE 30-31)
33. REMOVE THE TOP NUTS, AND PULL THE SHOCKS FROM UNDERNEATH THE VEHICLE. (FIGURE 30-33)
FIGURE 30-33
34. AIR SPRING AND SHOCK REMOVAL IS COMPLETE.
