Arnott C-2278 - Page 19

19
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

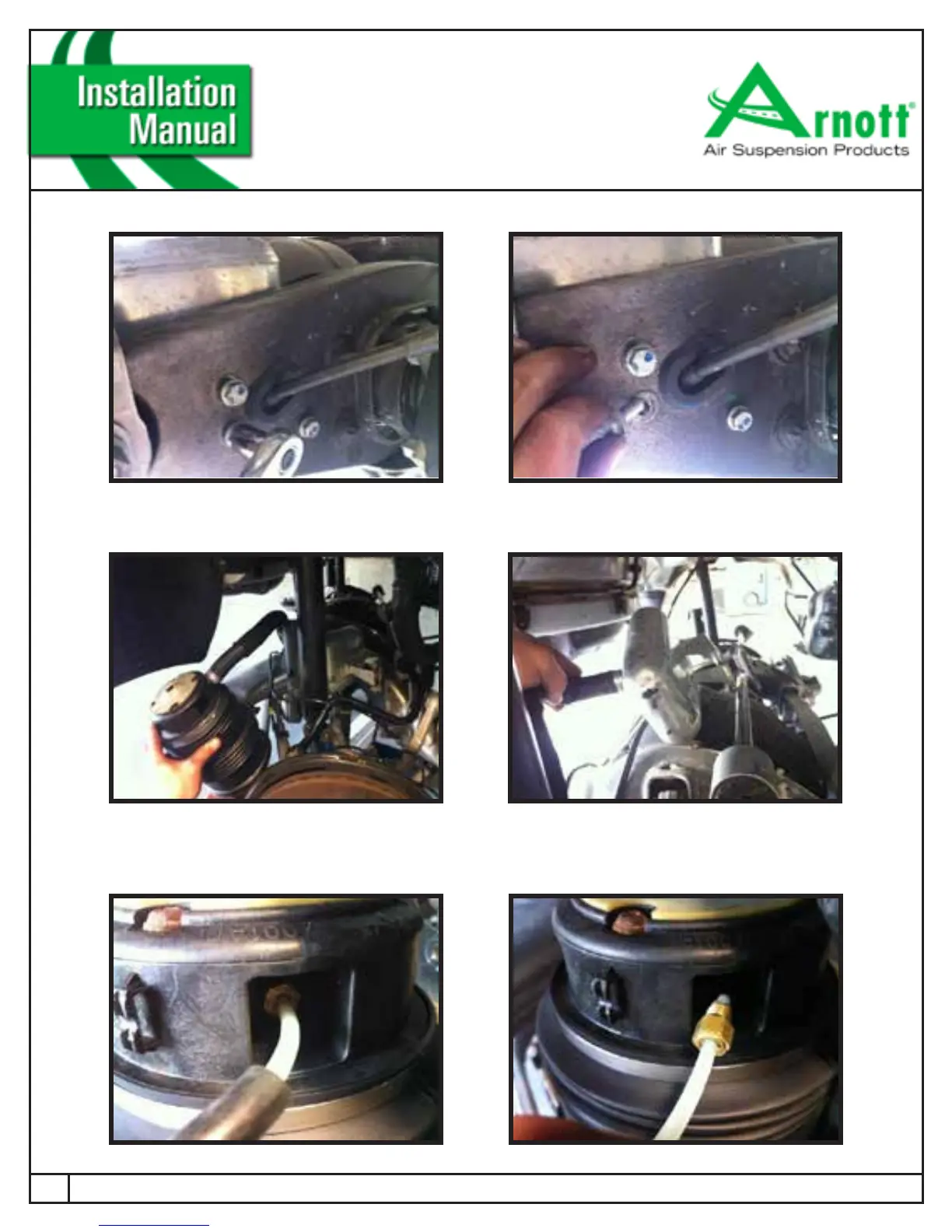

FIGURE 30-28
FIGURE 30-29
29. REMOVE BOTH AIR SPRINGS AND RESERVOIRS. (FIGURE 30-29)
28. LOOSEN, AND REMOVE THE BOLTS FOR THE AIR RESEVOIRS. (FIGURE 30-28)
30. WITH THE AIR SPRINGS REMOVED, REMOVE THE AIR LINES FROM THE TOP MOUNT OF THE AIR SPRINGS.
(FIGURE 30-30)
FIGURE 30-30
