ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS
FIGURE 30-25
FIGURE 30-26

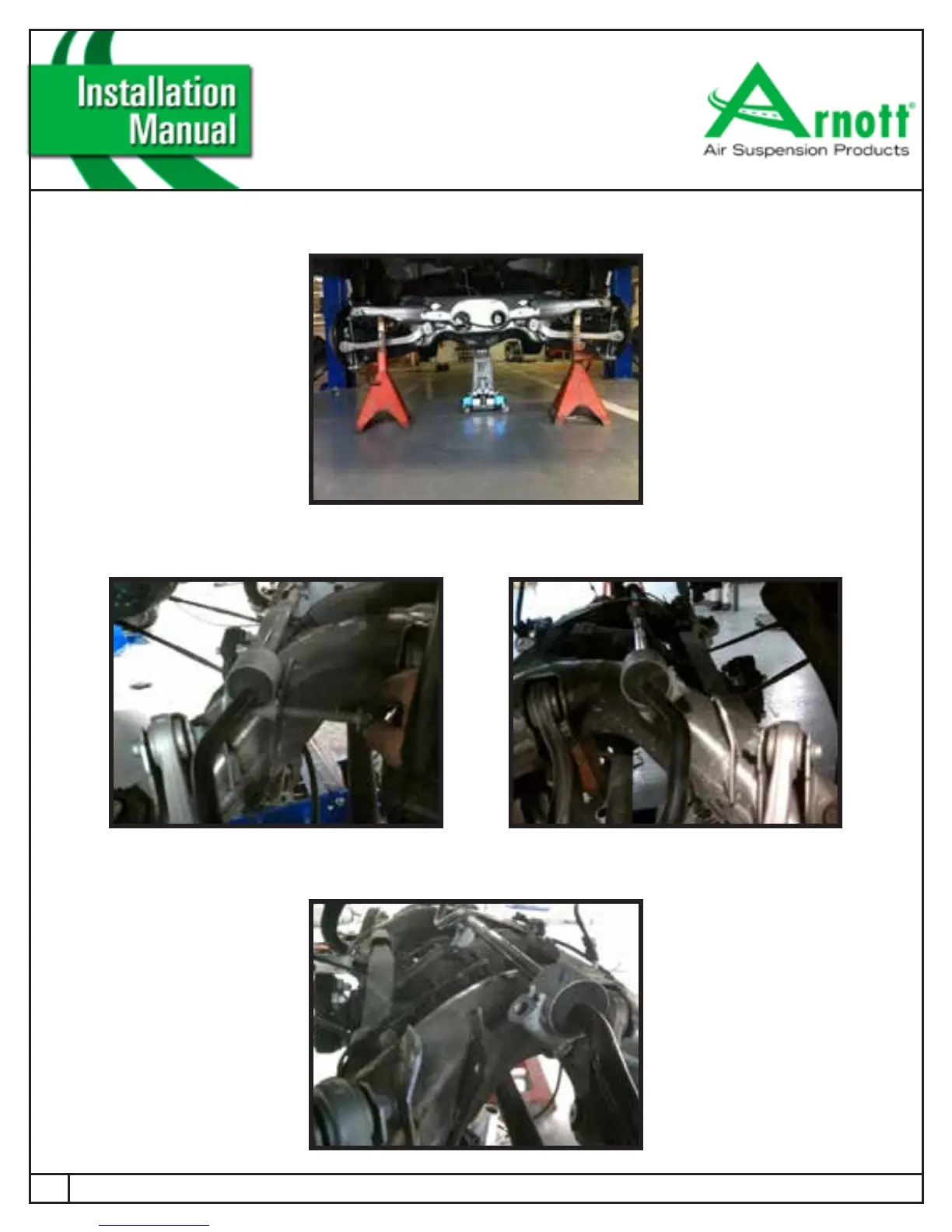

26. LOCATE, LOOSEN, AND REMOVE THE SWAYBAR BOLTS. (FIGURE 30-26)
25. SUPPORT CROSSMEMBER ASSEMBLY ON JACK STANDS, AND RAISE VEHICLE TO ACCESS THE AIR SPRINGS.
(FIGURE 30-25)
27. RAISE SWAY BAR TOWARDS REAR OF VEHICLE. (FIGURE 30-27)
FIGURE 30-27
