Arnott C-2278 - Page 17

17
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS

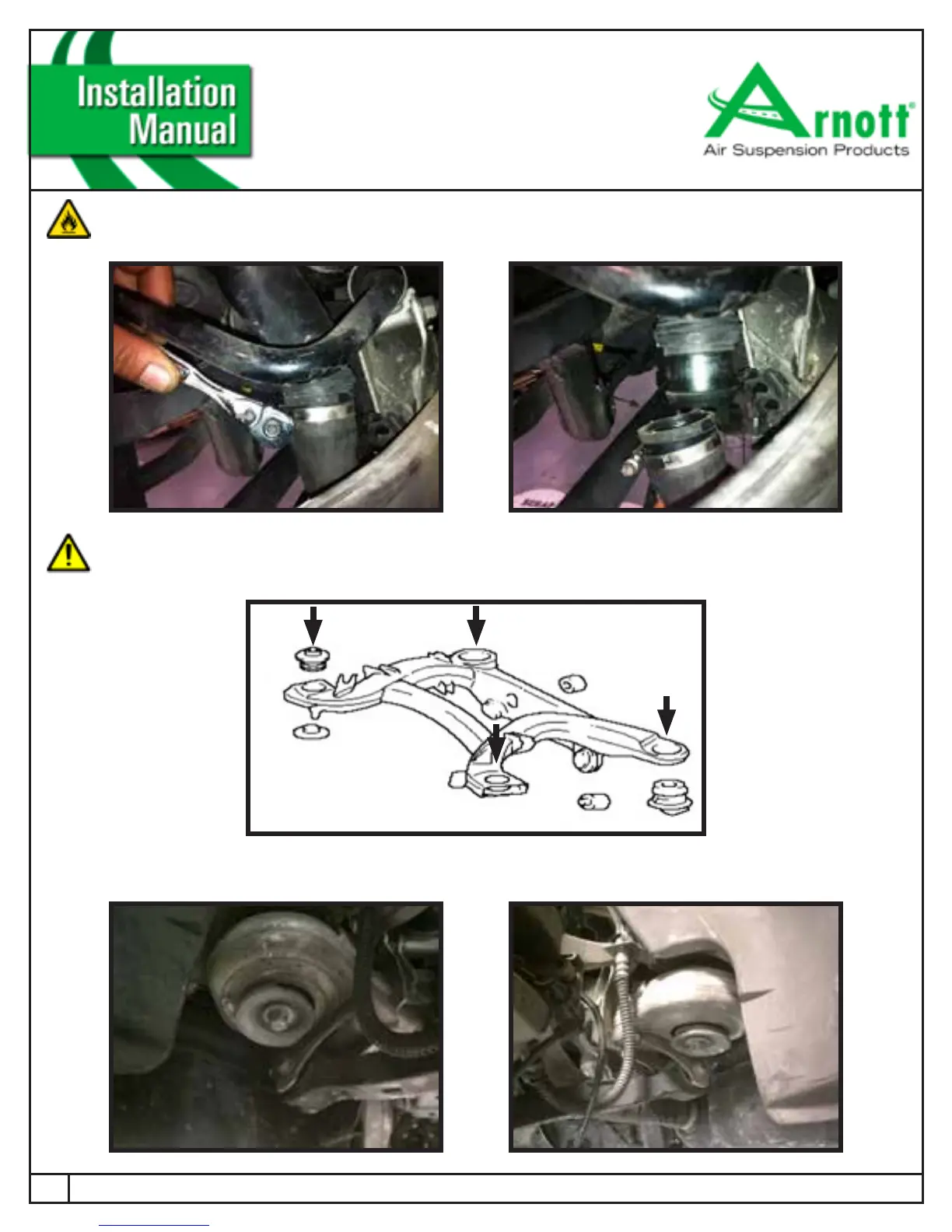

FIGURE 30-22
FIGURE 30-23
23. THE REAR CROSSMEMBER BOLT POINTS. (FIGURE 30-23)
22. LOOSEN FILLER NECK CLAMP, AND REMOVE GAS TANK FILLER HOSE. (FIGURE 30-22)
24. LOWER THE VEHICLE AND POSITION JACK STANDS TO SUPPORT THE REAR SUB FRAME. REMOVE THE FOUR
(4) BOLTS HOLDING THE SUB FRAME TO THE VEHICLE. (FIGURE 30-24)
FIGURE 30-24
FIRE HAZARD: Use extreme caution when working on, or around, fuel tank as gas fumes may be present.
Use lifting platform (hoist) that is capable of raising the body separately from the wheels, lift body at the lifting points prescribed
by the vehicle manufacturer.
